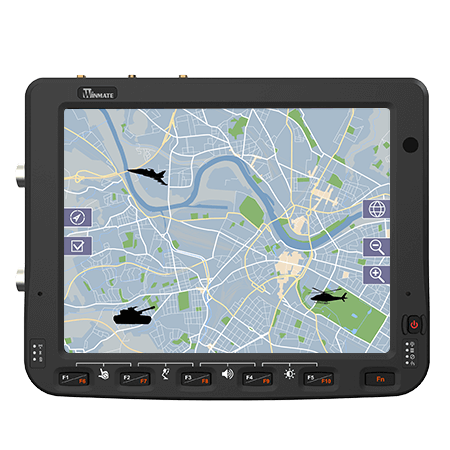

FM10E-VML New Design 10.4" Vehicle Mounted Computer Defence Panel PC with Intel® Elkhart lake x6425E

KEY FEATURES

  • Intel® Elkhart lake x6425E Processor
  • 10.4” 1024 x 768 Panel with PCAP touch screen
  • IP65 waterproof and dustproof
  • Wide power input 9-36V DC with ignition
  • Wide range operating temperature
  • Support VESA Mount
  • IO ports with Military grade 38999 connectors
  • Compliant MIL-STD 810H/ MIL-STD 461F
  • CERTIFICATIONS
  • MIL-­STD 461F IP65 MIL-­STD 810H FCC CE

FM10E-VMLNew Design

10.4" Vehicle Mounted Computer Defence Panel PC with Intel® Elkhart lake x6425E
Overview
Specification
Winmate FM10E-VML is vibration and shock-proof with MIL-STD 810H and IP65 ratings

Vibration and shock-proof design ensure reliable performance

When it comes to industrial usage, Winmate FM10E-VML is built rugged enough to survive harsh environments. Its solid enclosure optimizes the FM10E-VML’s durability and meets with MIL-STD-810H certification and IP65 rating.


Winmate FM10E-VML with PCAP touch screen

PCAP Touch Screen

The FM10E-VML features a compact panel with a PCAP touch screen. Resistant to dirt, debris, and highly sensitive touch commands for convenience of using the device.


Winmate FM10E-VML powered by Intel® Elkhart Lake x6425E processor

High-Performance CPU

FM10E-VML is powered by the Intel® Elkhart Lake Series processors to support the next generation of IoT edge devices. These processors build on new CPU levels, and graphics performances with integrated IoT features, real-time performance, manageability, security, and functional safety.


Winmate FM10E-VML with MIL-STD-38999 LAN, USB, and power input connectors

Smooth Integration into Defence Environment

For smooth integration into various industrial environments, FM10E-VML have defence-qualified MIL-STD-38999 connectors with exceptional versatility for LAN, USB type-A, and DC power input to enable sturdy and rugged connection to military equipment.

Display

Size

10.4 inches

Resolution

1024x768

Type

Projected Capacitive Multi Touch

Panel Brightness

400 nits 800 nits(Optional)

Contrast Ratio

1200:1

View Angles

88,88,88,88

System Specification

Processor

Intel Elkhart Lake x6425E Processor , 2.0 GHz

Memory

4GB SODIMM DDR4-3200 8GB SODIMM DDR4-3200 (Optional)

Storage

128GB M.2 SSD 256GB M.2 SSD (Optional)

Security

TPM 2.0

Operating System

Windows 10 IoT Enterprise

WLAN

Support

BT

Support

WWAN

4G/LTE (Optional)

GNSS

GPS/GLONASS (Optional)

Sensors

G-Sensor, Light Sensor ,Temp Sensor

Camera

Front Camera

2MP Camera

Environment

Operating Humidity

5% to 90% RH, Non-Condensing

Operating Temperature

-30°C to 50°C

Storage Temperature

-30°C to 60°C

Shock

MIL-STD-810H Method 516.8 Procedure I

Vibration

MIL-STD-810H Method 514.8 Procedure I

IP rating

IP65 Certified, Waterproof and Dustproof

Impact

Support EN62262 IK07 Rating

ESD

Compliant with EN 61000-4-2, enhanced ESD to ±12kV direct & ±15kV air

Certification

Certification

CE, FCC, UL60950-1, EN60950-1, PTCRB, FCC (Electromagnetic Emissions), IC (ICES-003)

Compliance

MIL-STD 461E/F

RE101 / RE102 CE101 / CE102 with EMI Glass / Touch(Optional) RS101 / RS 103 CS101 / CS 106 / CS 109 / CS 114 / CS 115 / CS 116

Control

Button

1 x Power Button, 6 x Function Button (Programmable Function Key Configured by Winset)

IO Ports

USB Port

1 x USB Type-C 1 x USB 2.0 Type-A (MIL-DTL-38999/3 connector)

Serial Port

2 x RS232/422/485 (Default RS232)

LAN

1 x Gigabit LAN port (MIL-DTL-38999/1 connector)

SD Card Slot

1 x Micro SD Card Slot

SIM Card Slot

1 x Dual-Nano SIM Card Slot

Indicator

6 x LED Indicator (WLAN, BT, UPS battery, HDD, Screen Blanking, Heater)

Mechanical

Dimension

268.1 x 214 x 51 mm

Weight

2.4kg

Mounting

RAM Mount/ VESA Mount

Cooling System

Fanless Design

Security Function

SOTI MobiControl

SOTI MobiControl Compliance

Accessory

Accessory

1 x Quick Start Guide 1 x Power Cable (MIL-DTL-38999/1) 1 x USB Cable (MIL-DTL-38999/3) 1 x LAN Cable (MIL-DTL-38999/1) 1 x 84W Power Adapter 1 x Power converter Cable

Optional Accessory

1.8M RS232 Cable GPS & LTE 2M Combo Antenna(VM240) GPS & LTE 5M Combo Antenna (VM9C) GPS & LTE Combo Antenna (VM10S) WWAN Antenna GPS Antenna

Power

Battery

400mAh UPS Battery for 20 minutes backup (Optional)

Power Rating

9V~36V with ignition control (MIL-DTL-38999/1 connector)
