FM12E-V 12.1" Vehicle Computer with Intel® Elkhart lake x6413E

KEY FEATURES

  • Intel® Elkhart lake x6413E Processor vehicle computer
  • 12.1” 1024 x 768 Panel with PCAP touch screen
  • IP65 waterproof and dustproof
  • Wide power input 10-60V DC with ignition
  • Wide range operating temperature
  • Support VESA Mount
  • CERTIFICATIONS
  • IP65 MIL-­STD 810H FCC CE

FM12E-VNew Design

12.1" Vehicle Computer with Intel® Elkhart lake x6413E
Overview
Specification
Accessories
Winmate Windows forklift computers FM12E-V with Vibration and shock-proof

Vibration and shock-proof design ensure reliable performance

When it comes to industrial usage, Winmate FM12E-V that is rugged enough to survive harsh environments is a must. Its solid enclosure proves the FM12E’s durability with MIL-STD-810H certification and IP65 rating.


Winmate Windows forklift computers FM12E-V with PCAP Touch Screen

PCAP Touch Screen

The FM12E-V features a compact panel with a PCAP touch screen. Resistant to dirt, debris, and highly sensitive touch commands make you enjoy every touch and convenience of using the device.


Winmate Windows forklift computer FM12E-V with High-Performance CPU

High-Performance CPU

To support the next generation of IoT edge devices, FM12E-V has developed a new line of processors enhanced for IoT—The Intel Elkhart Lake Series processors. These processors build on new levels of CPU, and graphics performances with integrated IoT features, real-time performance, manageability, security, and functional safety.

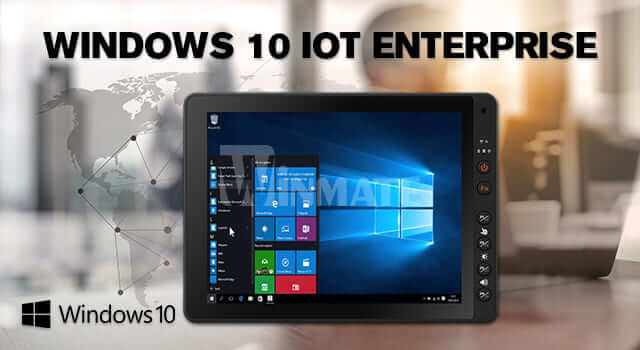

Winmate Windows forklift computer FM12E-V with Windows 10 IoT Enterprise

Windows 10 IoT Enterprise

Windows 10 IoT Enterprise is a full version of Windows 10 that delivers enterprise manageability and security to IoT solutions. Windows 10 IoT Enterprise shares all the benefits of the world-wide Windows ecosystem. It is a binary equivalent to Windows 10 Enterprise to use the same familiar development and management tools as client PCs and laptops.


Winmate Windows forklift computer FM12E-V with Reliable Extreme operating temperatures

Reliable computing under extreme operating temperatures

Low-power components of industrial computers prevent overheating and are less likely to achieve high temperatures in the first place.

Display

Size

12.1 inches

Type

Projected Capacitive Multi Touch

Resolution

1024x768

Panel Brightness

400 nits 800 nits(Optional)

Contrast Ratio

1000:1

View Angles

89,89,89,89

Touch Mode

Support Hand, Stylus, Glove Mode

System Specification

Processor

Intel Atom x6413E 1.5GHz (up to 3GHz) Intel Atom x6425E 2GHz (up to 3GHz) (Optional)

Memory

1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional)

Storage

1 x M.2 2242 SSD 128GB 256GB (Optional)

Security

TPM 2.0

Operating System

Windows 10 IoT Enterprise (64 bit)

WLAN

Support

BT

Support

WWAN

4G/LTE (Optional)

GNSS

GPS/GLONASS (Optional)

Sensors

G-Sensor, Light Sensor ,Temp Sensor

Camera

Front Camera

2MP Camera

Environment

Operating Humidity

5% to 90% RH, Non-Condensing

Operating Temperature

-30°C to 60°C

Storage Temperature

-30°C to 60°C

Shock

MIL-STD-810H Method 516.8 Procedure I

Vibration

MIL-STD-810H Method 514.8 Procedure I

IP rating

IP65

Impact

Support EN62262 IK07 Rating

ESD

Compliant with EN 61000-4-2, enhanced ESD to ±12kV direct & ±15kV air

Certification

Certification

CE, FCC FCC (Electromagnetic Emissions), IC (ICES-003) UL60950-1, EN60950-1, PTCRB

Control

Button

1 x Power Button, 5 x Function Button (Programmable Function Key Configured by Winset)

IO Ports

USB Port

1 x USB Type-C 1 x USB 2.0 Type-A

Serial Port

2 x RS232/422/485 (Default RS232)

LAN

1 x Gigabit LAN port PSE (IEEE 802.3at 30W) (Optional)

Audio

1 x Audio(Mic in & Line Out) either one with DIDO (Optional)

SD Card Slot

1 x Micro SD Card Slot

SIM Card Slot

1 x Dual-Nano SIM Card Slot

Indicator

4 x LED Indicator (WLAN, UPS battery, HDD, Heater)

DIDO

1 x DIDO (2XDI ; 2XDO) either one with Audio (Optional)

CANBUS

1 x CANBus (Optional)

Mechanical

Dimension

306.6 x 225 x 56.6 mm

Weight

2.4kg

Mounting

VESA Mount

Cooling System

Fanless Design

Security Function

SOTI MobiControl

SOTI MobiControl Compliance

Accessory

Accessory

1.8M Power Cable with Fuse Kit 0.15M Power Converter Cable DC Jack Power Cable 84W Adapter with power cable Quick Start Guide

Optional Accessory

Stylus Kit + Screw 1.8M RS232 Cable 2M IP65 LAN Cable GPS & LTE 5M Combo Antenna (VM9C) GPS & LTE Magnetic Combo Antenna (VM10S) GPS Antenna WWAN Antenna 2M Waterproof USB Type-A to A Cable Cable Clamp Kit COM Port + CANBus Cable COM Port + DIDO Cable

Power

Battery

400mAh UPS Battery for 20 minutes backup (Optional)

Power Rating

10V~60V with ignition control

Consumption

45W (Typical)

STANDARD ACCESSORIES

Power convert cable

Power convert cable

Model Name: PCC-FM

Part Number: 94J602G030K2

  • Terminal block to adapter convert cable

Power cable

Power cable

Model Name: PWC180

Part Number: 94J008L040K2

  • 1.8m DC Power cable straight connector

Fuse Kit

Fuse Kit

Model Name: FK-FMD

Part Number: 94JL01L01000

  • Fuse Kit

Adapter

Adapter

Model Name: EA10951C

Part Number: 922D084W12V1

  • 84W Adapter with power cable

OPTIONAL ACCESSORIES

Magnetic Multi-Band Combo Antenna

Magnetic Multi-Band Combo Antenna

Model Name: VM10S

Part Number: 397SM0000006

  • GPS & LTE Combo ANTENNA

GPS & LTE MIMO Combo Antenna

GPS & LTE MIMO Combo Antenna

Model Name: VM9C

Part Number: 397SM0000008

  • GPS & LTE MIMO Combo Antenna

RS232 & Audio Cable

RS232 & Audio Cable

Model Name: RA-FMV

Part Number: 94E215R060K1

  • 2m D-Sub 15 pin IP65 cable for comport and Audio

GPS Antenna

GPS Antenna

Model Name: GSA-FM

Part Number: 397SM000000N

  • 3M, GPS Antenna

RS232 & DIDO Cable

RS232 & DIDO Cable

Model Name: RD-FMV

Part Number: 94E2150150K0

  • 2m D-Sub 15 pin IP65 cable for comport and 2DI 2DO

WWAN Antenna

WWAN Antenna

Model Name: WWA-FMD

Part Number: 397SM000000T

  • WWAN antenna for higher accuracy - attached to the dock

RS232 Cable

RS232 Cable

Model Name: RSC

Part Number: 94G4094090K1

  • 1.8m standard 9-Pin male com port cable

Stylus Kit + Screw

Stylus Kit + Screw

Model Name: SS-FM1

Part Number: 98K000A00076

  • Stylus Kit + Screw

RS232 & CANBus Cable

RS232 & CANBus Cable

Model Name: RC-FMV

Part Number: 94E2150130K0

  • 2m D-Sub 15 pin IP65 cable for comport and CAN Bus

LAN Cable

LAN Cable

Model Name: LN-FMD

Part Number: 94I0080080KQ

  • 2m IP65 LAN Cable
