IBDRW100-EL Intel® Celeron® N6211 DIN Rail Box PC

KEY FEATURES

  • DIN Rail design for Industrial Automation application
  • Onboard Intel® Celeron® N6211 Processor (1.5M Cache, up to 3.0GHz)
  • 1 x SO-DIMM DDR4 Memory, up to 16GB
  • 1 x RS232/ 422/ 485 communication, select thru BIOS
  • 4 x Giga LAN, 3 x USB 3.2 Gen 2x1 x USB 2.0, 1 x VGA
  • 1 x Line out, 1 x line in, 1x Mic in, 1 x Power Jack
  • Fanless, streamlined enclosure for highly efficient heat Dissipation
  • AWS IoT Greengrass certified
  • CERTIFICATIONS
  • CSA FCC CE

IBDRW100-ELNew Design

Intel® Celeron® N6211 DIN Rail Box PC
Overview
Specification
IBDRW100-EL embedded PCs offer advanced performance powered by Onboard Intel® Celeron® N6120 Processor 1.2GHz

High Efficiency and Performance

IBDRW100-EL, a recent addition to the Winmate embedded PCs series, is powered by Intel® Celeron® Processor to deliver the optimal performance for critical industrial applications.


 IBDRW100-EL embedded PCs with a fanless design and efficient heat dissipation

Efficient Heat Dissipation Design

Built rugged, the IBDRW100-EL features wide temperature and voltage operating ranges, making it tough enough to take on different industrial environments.


Wide operating temperature of IBDRW100-EL embedded PCs, suitable for various industrial applications

Built for Industrial Automation Applications

Din Rail embedded PCs are purpose built for factory automation and machine vision applications, easy to install, access, and maintain. The IBDRW100-EL embedded PC has a wide array of I/O support. It can be connected to various cameras and sensors, control systems, display output, etc.

System Specification

Processor

Intel® Celeron® N6211 (up to 3.0GHz)

Memory

1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional)

Storage

1 x M.2 2242 B-key SSD 128GB 256GB (Optional) 512GB (Optional) 1 x SATA III for 2.5" SSD/HDD (Optional)

Ethernet controller

4 x Intel® Ethernet Controller

Security

TPM 2.0

Operating System

Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional)

WLAN

Support (Optional)

BT

Support (Optional)

Expansion Port

1 x M.2 2230 E-key (for Wi-Fi) 1 x M.2 2242 B-key Slot (for SSD)

Mechanical

Dimension

139 x 65.4 x 152 mm

Weight

1.5 kg

Mounting

Din-Rail mounting

Enclosure

Aluminum Housing

Cooling System

Fanless Design

Environment

Operating Humidity

10% to 90% RH, Non-Condensing

Operating Temperature

-20°C to 60°C

Storage Temperature

-40°C to 70°C

Shock

15G, 11ms duration

Vibration

5Hz~500Hz / 1Grms / 3 axis

Certification

Certification

CE, FCC, IC UL/CSA 62368-1 AWS loT Greengrass Certified

IO Ports

USB Port

3 x USB3.2 Gen2x1 (Type-A) 1 x USB2.0 (Type-A)

Serial Port

1 x RS232/422/485 DB9 connector (Default RS232) 1 x Isolated RS422/485 DB9 connector (Default RS422)

LAN

4 x 2.5 Giga LAN RJ45 Connector

Video

1 x VGA DB15 connector

Audio

Mic in Line in Line out

Expansion Port

1 x M.2 2242 B-key Slot (for SATA III SSD) 1 x M.2 2230 E-key (for Wi-Fi module)

Indicator

1 x LED Indicator for power 1 x LED Indicator for storage

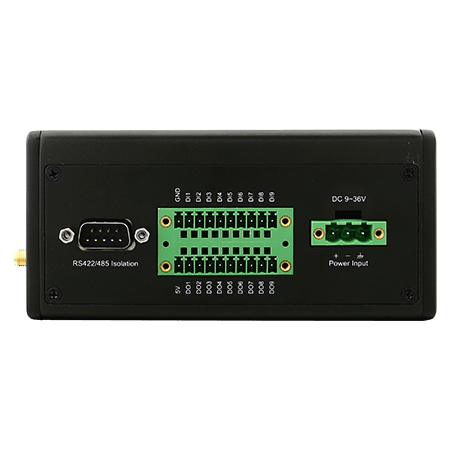

DIDO

1 x Isolated 5V 9-in/9-out DIO with 20-Pin Terminal block 1 x Isolated 30V 9-in/8-out DIO with 20-Pin Terminal block (Optional) 1 x Isolated 30V 10-in/7-out DIO with 20-Pin Terminal block (Optional) 1 x Isolated 30V 11-in/6-out DIO with 20-Pin Terminal block (Optional) 1 x Isolated 30V 12-in/5-out DIO with 20-Pin Terminal block (Optional)

Power Input

1 x Isolated 9~36V DC with 3-Pin Terminal Block

Control

Button

1 x Reset Button

Accessory

Accessory

1 x 100~240V AC to DC Adapter 1 x Power Cord 2 x Terminal Block 10 pin connector for DIDO 1 x Open Wire Cable 1 x Terminal Block 3 pin to 2.5Ø Female Adapter Cable 1 x Din Rail Mounting kits

Power

Power Rating

9V to 36V DC with isolation, 3-Pin Terminal Block

Adapter

12V 84W
