L140V2-4 14inch Rugged Laptops with AMD RYZEN V2516

Discontinued (EOL)

Sorry, This item is not available anymore for purchase. Please see our other related products. For more information, please get in touch with us.

KEY FEATURES

  • AMD RYZEN V2516 Processor Rugged Laptops(@2.1GHz , up to 3.95GHz)
  • Fanless Cooling System
  • Rugged extreme with 14” 1920 x 1080 LED panel with direct optical bonding
  • Anti-glare technology for sunlight readability
  • Flip design for quick switching between rugged laptop and rugged tablet modes
  • Dual battery with hot-swappable design for whole-day-work
  • Expansion slot supporting optional 2nd removable SSD and smart card reader
  • CERTIFICATIONS
  • FCC CE

L140V2-4New Design

14inch Rugged Laptops with AMD RYZEN V2516
Overview
Specification

AMD based Rugged Laptops with MIL-STD-810H and IP65 against dust and water splash, built for harsh job site usage

Work well even in harsh environments

Support 24x7 operations:
with dual hot-swappable batteries to provide continuous power, so you are always ready for the day, night, and everything in between.

Screen responsiveness:
support rain mode, stylus, gloved-touch capability, anti-glare technology, and optical bonding for direct-sunlight viewability.

Tough exterior:
The L140V2 series ruggedized notebook is temperature-tested from -20~ 60 °C (AC mode) or -10~50 °C (on battery), passed drop-tested from a meter high, and IP65 rated for a high degree of protection against dust, dirt, and water ingress.


AMD processor Rugged Laptops convenience to use under the sun on bright day

Geared to work with your gear

Boost field productivity:
easily dock, connect and share with any device using various peripherals and docking options. The ruggedized notebook is powered by the AMD RYZEN V2516 @2.1GHz, up to 3.95 GHz processor.

Collaborate from anywhere:
Limit downtime with WLAN, BT support, GPS / GLONASS, and 4G LTE(optional) connectivity option for faster data-transmission rates, lower latency, and increased capacity even in remote environments.

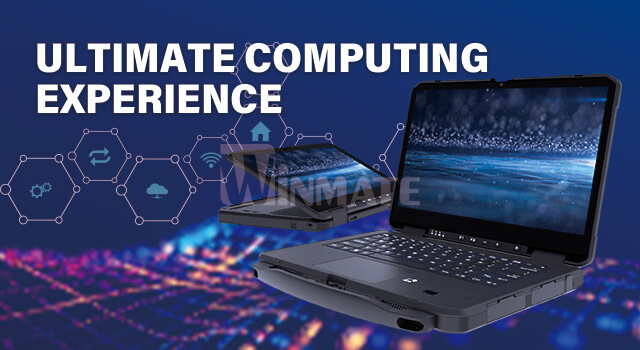

Rugged Laptops with AMD chips for ultimate computing experience

Double your edge

Flexible dual hinges:
seamlessly switch between ruggedized notebook and tablet. They are stiff enough to prevent the screen from wobbling when you tap on the screen, yet flipping the panel around to transition into tent or tablet mode does not require much force.


Disclaimer:
  1. Accessories and Integrated Options may vary depending on your configuration.
  2. Total usable memory and storage will be less dependent upon actual system configuration.
  3. The actual transfer speed will vary depending on many factors, including the processing speed of the host device, file attributes, and other factors related to the system configuration and your operating environment.
  4. The USB Type¬C connector follows USB 3.0 standard, which does not support Alternate Mode (ALT) or USB Power Delivery (USB¬PD).
  5. The battery life is measured at dimming LCD brightness. Depending on the usage conditions or when an external device is attached, it varies.
  6. The 2D drawing is a simplified drawing, and some components are not marked in detail.
  7. Length measurements do not include protrusions. Weight varies with options.
  8. TPM 2.0 is available upon request.
  9. SOTI is available upon request.
  10. The product shown in this datasheet is a standard model. For diagrams containing customized or optional I/O, don't hesitate to contact the Winmate Sales Team for more information.
Display

Size

14 inches

Resolution

1920x1080

Type

Projected Capacitive Multi Touch

Panel Brightness

700 nits

Contrast Ratio

800:1

View Angles

85,85,85,85

Bonding

Optical Bonding for Sunlight Viewability

System Specification

Processor

AMD RYZEN V2516 @2.1GHz , up to 3.95GHz

Memory

8GB DDR4 SDRAM 16GB DDR4 SDRAM (Optional) 32GB DDR4 SDRAM (Optional)

Storage

256GB M.2 SSD 512GB M.2 SSD (Optional) 1TB M.2 SSD (Optional) 2TB M.2 SSD (Optional) Additional storage available with up to 2TB M.2 (PCIe NVMe) SSD, self-encrypted. (Optional)

Ethernet controller

1 x RJ45-10/100/1000 Mbps LAN

Smart Card Reader

Smart Card Reader (Optional)

Security

Trusted Platform Module (TPM) 2.0 Kensington Lock

Operating System

Windows 10 IoT Enterprise (64 bit)

WLAN

Support

BT

Support

WWAN

4G LTE (Optional)

GNSS

GPS/GLONASS

RFID

HF RFID reader 13.56 MHz (Optional)

Fingerprint Scanner

Fingerprint scanner (Optional)

Camera

Front Camera

2MP front camera

Rear Camera

8MP rear camera with autofocus and LED light (Optional)

Mechanical

Dimension

340 x 230 x 38 mm

Weight

2.5 kg

Cooling System

Fanless thermal design

IO Ports

USB Port

3 x USB 3.0 (Type A), 1 x USB 3.0 (Type C)

Serial Port

1 x RS232 (DB9)

LAN

1 x RJ45-10/100/1000 GigaLAN port

Video

1 x HDMI 4K Output (Optional)

Audio

1 x Audio Jack (mic in/line out)

SD Card Slot

1 x Micro SDXC Slot

SIM Card Slot

1 x Nano SIM card slot

Expansion Port

1 x Expansion slot for smart card reader and removable SSD (Optional)

Indicator

4x LED Indicator for Power, Battery, HDD, RF status

Environment

Operating Humidity

10% to 90% RH, non-condensing

Operating Temperature

-20°C to 50°C (AC mode), 0°C to 40°C (Battery mode)

Storage Temperature

-30°C to 70°C

Shock

MIL-STD-810H Method 516.8 Procedure I

Vibration

MIL-STD-810H Method 514.8 Procedure I

Drop

MIL-STD-810H Method 516.8, 3 ft

IP rating

IP65

Certification

Certification

CE, FCC

Security Function

SOTI MobiControl

SOTI MobiControl Compliance

Kensington Lock

Kensington Lock Support

Control

Button

1 x Power, 2 x volume key, 2 x Programmable Function Keys

Power

Battery

Hot-swappable 2 x 10.8V typ. 2400 mAh Li-Ion Battery (3S1P)

Battery Operating Time

Standard Battery: 8 hours

Power Rating

19V DC

Adapter

100-240V, 50-60Hz (19V DC)

Accessory

Accessory

Adapter and Power Cord Standard Battery

Optional Accessory

Spare Battery (Optional) Battery Charger (Optional) Vehicle Charger (Optional)
