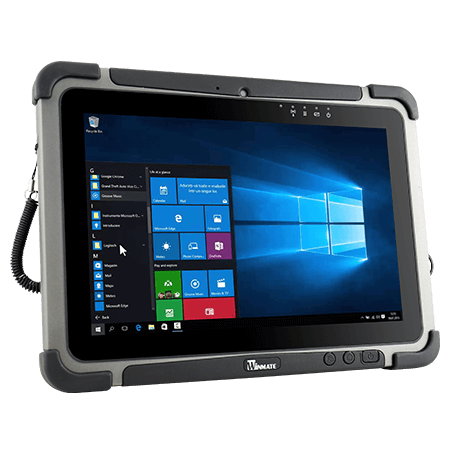

M101BT 10.1" Intel® Celeron® N2930 Windows Rugged Tablet

Discontinued (EOL)

The M101BT has been phased out and replaced by the M116PT . For more information, please get in touch with us.

KEY FEATURES

  • Intel® Celeron® N2930 Bay Trail-M Processor Windows Rugged Tablet
  • 10.1” 1280 x 800 IPS LED Panel with direct optical bonding
  • Optional 1D/2D Barcode Reader for data collection
  • Optional extendable UHF RFID Reader
  • IP65 waterproof and dustproof
  • Rated for extreme temperature use
  • Built-in Smart Card Reader
  • CERTIFICATIONS
  • MIL-STD 810G IP65 FCC CE

M101BTNew Design

10.1" Intel® Celeron® N2930 Windows Rugged Tablet
Overview
Specification
Accessories
Superlative performanceWindows Rugged Tablet with intel celeron processor

Stable Performance with Intel’s CPU

The M101BT uses Intel® Bay Trail-M processor to provide stable performance and low power consumption. The M101BT supports the latest Windows® 10 IoT Enterprise operating system fulfill increasing industrial applications requirements and providing an alternative solution for those between general consumer-grade and extremely rugged solution.


Windows Rugged Tablet with rugged housing compliance with US Defence standard and IP65

Rugged Design in Mobile Form Factor

The M101BT rugged tablet is designed to be tough and rugged, withstanding shock, vibration, and drop up to 4 ft. to concrete according to Defence standard MIL-STD-810G for operations in some of the harshest environments. With all-around rubber edges and covered I/O ports, the M101BT is dust-tight and waterproof. Ready for use in wet and dusty environments.


Windows Rugged Tablet is being held and use conveniencely under the sun

Sunlight Readable 10.1” Display

The M101BT features a 10.1” IPS display panel with 1280 x 800 resolution and offers wide viewing angles, better image contrast, and faster response times. Featuring350 nits’ brightness screen and optical bonding technology, the M101BT is suitable for outdoor and bright lit environments.


Touch anywhere on Windows Rugged Tablet screen with gloves, finger, and stylus

Ultimate Touch Capability

The screen of M101BT features projected capacitive multi-touch technology for the best user experience. It allowed switching windows, taking snapshots, zooming in, and rotating objects easily to take the touch interface's full advantages. Supports Rain, Glove, Stylus modes.


Windows Rugged Tablet with unparalleled connectivity

Real-Time Data and Wireless Connectivity

Real-time data access to the right information is crucial for mobile workers. The M101BT offers GPS, Wi-Fi 802.11 a/b/g/n, Bluetooth 4.0, and optional 4G/LTE to enable robust communications anytime and anywhere. With a built-in 5.0 MP camera on the rear side, users can capture photos, videos, documents instantly or utilize the front 2.0 MP camera for applications such as self-video recording or video communications.


Configurable and purpose built Windows Rugged Tablet for mobile workforce

Data Collection Tools for Mobile Workforce

With optional tools for data collection, the M101BToffers ultimate productivity for field workers. Options include built-in 1D/2D Barcode Reader, HF RFID Reader, or add-on UHF RFID Reader module.

Display

Size

10.1 inches

Resolution

1280x800

Type

Projected Capacitive Multi Touch

Panel Brightness

350 nits

Contrast Ratio

800:1

View Angles

85,85,85,85

Bonding

Optical Bonding for Sunlight Viewability

Touch Mode

Support Hand / Gloves and Rain Mode

System Specification

Processor

Intel Celeron N2930 1.83 GHz (up to 2.16GHz)

Memory

4GB DDR3L SDRAM 8GB DDR3L SDRAM (Optional)

Storage

64GB mSATA SSD Additional storage available with micro SDXC cardslot 128GB mSATA SSD (Optional) 256GB mSATA SSD (Optional)

Smart Card Reader

Built-in Smart Card Reader, Comply with ISO7816-1.2.3 T=1 and T=Ø protocol

Security

Password security for user and hard disk lock Trusted Platform Module (TPM) 1.2 Computrace theft protection agent

Operating System

Windows 10 IoT Enterprise LTSC (64 bit) Windows Embedded 8.1 Industry Pro Windows 7 Pro for Embedded System

WLAN

Support

BT

Support

WWAN

4G LTE (Optional)

GNSS

GPS

RFID

HF RFID 13.56 MHz reader (Optional) UHF RFID • EPCglobal Gen2 (ISO 18000-6C) protocol (IP-X and ISO 18000-6B optional) • Read Range: 3+ meters for 2x8 cm UHF tags in unobstructed space

Sensors

Light sensor/ G-sensor / Gyro

Camera

Front Camera

2MP Front Camera

Rear Camera

5MP Rear Camera with auto-focus and LED light

Mechanical

Dimension

271.8 x 197.2 x 19 mm (10.7 x 7.76 x 0.75 inches)

Weight

1.2 kg (2.7 lbs) with standard battery, 1.4 kg (3.1 lbs) with optional high capacity battery

Cooling System

Fanless design

IO Ports

USB Port

1 x USB3.0

LAN

1 x 30-pin Combo connector (Gigabit-LAN/RS232)

Video

1 x Micro HDMI (Optional)

Audio

1 x Audio combo 3.5mm audio combo jack (Mic in or Line Out) Single Mic Built-in Microphone Dual Speaker

SD Card Slot

1 x Micro SDXC Slot

SIM Card Slot

1 x Micro SIM card slot

Expansion Port

1 x Expansion Connector for USB2.0 / Full RS232 (Optional)

Indicator

4x LED Indicator for Power, Battery, HDD, RF status

Docking Connector

1 x 19-pin docking connector

Environment

Operating Humidity

10% to 90% RH, non-condensing

Operating Temperature

-20°C to 60°C (AC mode), -10°C to 50°C (Battery mode)

Storage Temperature

-30°C to 70°C (-22°F to 158°F)

Shock

MIL-STD-810G Method 516.6 Procedure I

Vibration

MIL-STD-810G Method 514.6 Procedure I

Drop

MIL-STD-810G Method 516.6, 4 ft

IP rating

IP65

Certification

Certification

CE, FCC,UL,PTCRB,Verizon

Security Function

SOTI MobiControl

SOTI MobiControl Compliance

Kensington Lock

Kensington Lock Support

Control

Button

1 x Power, 1 x Home, 2 x volume key, 2 x Programmable Function Keys

Power

Battery

7.4V, typ. 5140 mAh Li-Polymer Battery (2S1P) 7.4V, typ. 10280 mAh Li-Polymer Battery (2S2P, optional)

Battery Operating Time

Standard. Battery: 8 hours High Capacity Battery: 16 hours

Power Rating

19V DC

Adapter

100-240V, 50-60Hz / 19V DC

Accessory

Accessory

Adapter and Power Cord Capacitive Stylus Standard Battery

Optional Accessory

Desk Dock (Optional) Vehicle Dock (without VGA output) (Optional) Vehicle Cradle (Optional) Vehicle Charger (Optional) High Capacity Battery (Optional) Battery Charger (Optional) Smart Card Reader (Optional) VESA Mount Kit (Optional) Hand Strap (Optional) Shoulder Strap (Optional) Carry Bag (Optional)

Barcode Scanner

Barcode Scanner

1D/2D barcode reader (Optional)

STANDARD ACCESSORIES

Adapter and Power Cord

Adapter and Power Cord

Model Name: EA10733P

Part Number: 922D065W19VB

  • 100-240VAC to 19VDC@3.42A
  • Country specific power cords available

Standard Battery

Standard Battery

Model Name: BS101

Part Number: 98K000A0003R

  • 7.4V / min. 5140 mAh Li-Polymer Battery, 2S1P
  • Dimensions: 153 x 122 x 11 mm
  • Weight: 276 g

Capacitive Stylus

Capacitive Stylus

Model Name: DS-M101

Part Number: 9B0000000415

  • 90 mm / 3.5 & 5.5 Phi

OPTIONAL ACCESSORIES

Vehicle Cradle

Vehicle Cradle

Model Name: VC-M101B

Part Number: 98DT00A0000C

  • Keeps the tablet securely fastened on moving vehicles
  • Anti-theft design with key lockable cradle
  • Wide power voltage input (9~36V DC-in)
  • VESA standard for various standard fixtures

Desk Dock

Desk Dock

Model Name: DD-M101S

Part Number: 98DT00A0000E

  • USB 2.0 x 4 (Rear x2, Side x2)
  • LAN (10/100) / VGA / RS232
  • 12-19V DC IN

Vehicle Dock (without VGA output)

Vehicle Dock (without VGA output)

Model Name: VD-M101B

Part Number: 98K000A0003L

  • VESA Mounting support
  • USB 2.0 x 4 (Rear x2, Bottom x2)
  • LAN (10/100) / RS232
  • GPS ANT SMA x 1
  • 9-36V DC IN with 3-pin terminal block
  • Easy insert and release with Key-Lock

High Capacity Battery

High Capacity Battery

Model Name: BL101

Part Number: 98K000A0003P

  • * Not support M101M4 Series
  • 7.4V / Typ. 10280 mAh Li-Polymer Battery, 2S2P
  • Dimensions: 153 x 122 x 16.5 mm
  • Weight: 474 g

Shoulder Strap

Shoulder Strap

Model Name: SS-M101

Part Number: 98K000A0003Q

  • Fixed with screws
  • Adjustable cross-body strap (85-165cm) with pad
  • Weight: 67g

VESA Mount Kit

VESA Mount Kit

Model Name: VS-M101S

Part Number: 98K000A000F4

  • 75x75 mm VESA Mount

Carry Bag

Carry Bag

Model Name: CB-M101

Part Number: 9B000000003J

  • With Hand Carrier and Shoulder Strap
  • Separated pocket for accessories

LAN Cable

LAN Cable

Model Name: LN-M101B

Part Number: 94I0080300K5

  • Not support M101M4 Series
  • For LAN from 30 pin extension port
  • Length:10cm
  • J45, female
  • Gigabit Ethernet

Vehicle Charger

Vehicle Charger

Model Name: VCG-M101

Part Number: 9226065W19V0

  • 11~24V DC IN
  • 19V/ 3.42A DC OUT

Hand Strap

Hand Strap

Model Name: HS-M101

Part Number: 98K000A0003J

  • Fixed with screws
  • Adjustable for both battery sizes

Smart Card Reader

Smart Card Reader

Model Name: SC-M101

Part Number: 98K000A0003U

  • Compliant to ISO 7816 part 1,2 and 3
  • Support ISO 7816 T=0, T=1 smart card
  • LED Indicator for Card Reader status
  • Easy to install and operate
  • Dimensions: 107.97 x 80.39 x 12.40 mm

Battery Charger

Battery Charger

Model Name: BC-M101-2N

Part Number: 98K000A000HC

  • Dual-bay charging dock
  • Power level LED indicators
  • Buzzer to indicate battery is inserted
  • Supports up to 2 set of dock interconnected
