M101Q8-ME

10.1" Qualcomm® Snapdragon™ 660 Healthcare Android Rugged Tablet PC

M101Q8-ME

10.1" Qualcomm® Snapdragon™ 660 Healthcare Android Rugged Tablet PC
  • KEY FEATURES
  • Qualcomm® SDA660 Kryo 260 CPU + Octa-core up to 2.2GHz
  • 10.1" (1920 x 1200) TFT LCD Display
  • 3 GB RAM + 32 GB eMMC
  • Integrated RFID Module
  • Integrated 1D/2D Barcode Reader (Optional)
  • 13 MP Camera in Rear Side (with LED auxiliary light, Auto Focus)
  • 8 MP Camera in Front Side
  • Housing enhanced with antimicrobial properties
  • Lightweight, rugged, IP65 waterproof and dustproof
  • Certified IEC 60601-1, 60601-1-2
  • CERTIFICATIONS
  • MIL-STD 810G IP65 IEC/UL 60601 FCC CE
Overview
Specification
Accessories

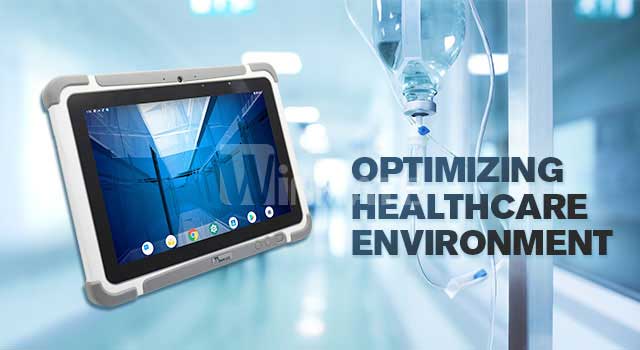

Optimizing Healthcare Environment

Optimizing Healthcare Environment

The Winmate’s healthcare rugged tablet computer M101Q8-ME is a versatile all-in-one wireless communications and data capture tool designed for hospital and clinical environments. It features integrated tools for data collection, including an NFC reader (Read/Write, Peer-to-Peer mode) or an optional barcode reader. Clinicians can track inventory or pull up patient charts with a quick click to verify patients with a barcode on their wristband. Note that integrated data collection options may vary by model.


Housing Enhanced with Antimicrobial Properties

Housing Enhanced with Antimicrobial Properties

The housing of the Winmate’s healthcare rugged tablet computer M101Q8-ME is enhanced with antibacterial properties to minimize bacteria growth and be resistant to a variety of cleaning chemicals with a waterproof design that allows cleaning the surface with wipes, sprays, and liquids without concern of affecting the internal components.


Extend Battery Life without Sacrificing Performance

Extend Battery Life without Sacrificing Performance

The M101Q8-ME healthcare rugged tablet computer features the latest Qualcomm® Snapdragon™ 660 platform to provide high performance and low power consumption with extended battery life. It supports the latest Android operating system to meet the growing processing requirements in industrial applications and offers an alternative solution between general consumer-grade and extremely rugged tablets.


Real-Time Connectivity and Data Capture

Real-Time Connectivity and Data Capture

Real-time data access to the right information is critical to mobile users. The M101Q8-ME healthcare rugged tablet computer offers GNSS, WLAN, BT, and optional 4G LTE connectivity, which enable users to connect in the way that best suits their needs. With the built-in 13 MP camera with autofocus on the rear side, users can capture photos, videos, documents instantly or utilize the 8 MP front camera for applications such as user self-video recording or video communication.


Suitable for Emergency Vehicle Application

Suitable for Emergency Vehicle Application

Transform your tablet computer to a vehicle-mount solution with accessories for in-vehicle applications - vehicle dock or vehicle cradle, VESA mount kit, and vehicle charger. The M101Q8-ME installed on a healthcare cart or inside an ambulance vehicle can withstand strong vibration from the moving vehicle with no parts disconnected or loose; compliant with MIL-STD-810G standard for vibration, drop, and shock. Emergency Medical Services (EMS) can easily unlock the tablet for on-the-go assignments.

Display

Size

10.1 inches

Resolution

1920x1200

Type

Projected Capacitive Multi Touch

Panel Brightness

800 nits

Contrast Ratio

800:1

View Angles

85,85,85,85

Bonding

Optical Bonding for Sunlight Viewability

Viewability

Anti-Glare touch treatment

Touch Mode

Support Hand / Gloves and Rain Mode

System Specification

Processor

Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz)

Memory

3GB

Storage

32GB

Operating System

Android 9.0

WLAN

802.11 a/b/g/n/ac mode

BT

Support

GNSS

GPS/GLONASS

RFID

Default RFID (Read / Write, Peer to Peer mode)

Sensors

Ambient Light Sensor, E-Compass, Gyro, Acceleration Sensors

Camera

Front Camera

8MP Camera

Rear Camera

13MP Camera with LED Auxiliary Light (Auto Focus)

Mechanical

Dimension

271.9 x 197.3 x 19.5 mm

Weight

1.2 kg (2.65 lbs)

Cooling System

Fanless Design

IO Ports

USB Port

1 x USB 3.0 Type C OTG 1 x USB 2.0 Type A

Video

1 x Micro HDMI (Optional)

Audio

1 x Audio Combo connector (Mic in or Line Out) 1 x Built-in Mic 2 x Speaker

SD Card Slot

1 x Micro SD Card Slot

SIM Card Slot

1 x SIM Card Slot

Indicator

1 x LED Indicators (Power, Battery)

Docking Connector

1 x Docking Connector

Environment

Operating Humidity

10% to 90% RH, Non-Condensing

Operating Temperature

0°C to 35°C (Battery mode)

Storage Temperature

-40°C to 70°C

Shock

MIL-STD-810G Method 516.6 Procedure I

Vibration

MIL-STD-810G Method 514.6 Procedure I

Drop

MIL-STD-810G Method 516.6, 4 ft

IP rating

IP65 Certified, Waterproof and Dustproof

ESD

Contact 8KV/ Air 15KV (Criteria A)

Certification

Certification

CE, FCC, IC IEC 60601-1, IEC 60601-1-2, EN 60601-1, ANSI/AAMI ES 60601-1

Control

Button

1 x Volume +/-, 1 x Home Button, 1 x ,Return Button, 1 x Power Button, 1 x Function Button

Power

Battery

7.4V, typ. 5140 mAh LiPolymer Battery (2S1P) (BS101) Warm swappable function (Optional)

Battery Operating Time

8Hr

Power Rating

19V

Adapter

MFR / model: EDAC / EM10683V & EM10681V Input: 100-240Vac, 2.0-1.0A, 50-60Hz Output: 19VDC, 3.78A

Security Function

SOTI MobiControl

SOTI MobiControl Compliance

Kensington Lock

Kensington Lock

Accessory

Accessory

Adapter and Power Cord Standard Battery Capacitive Stylus

Optional Accessory

Desk Dock Vehicle Dock (without VGA output) Vehicle Cradle Battery Charger Hand Strap VESA Mount Kit Shoulder Strap Carry Bag Vehicle Charger Micro SD Card HDMI Adapter

Barcode Scanner

Barcode Scanner

1D/2D Barcode Reader (Optional)

STANDARD ACCESSORIES

Adapter and Power Cord

Adapter and Power Cord

Model Name: EM10681V

Part Number: 922D072W19V1

  • 100-240VAC to 19V@3.78A
  • Country specific power cords available

Capactive Stylus

Capactive Stylus

Model Name: DS-M101

Part Number: 9B0000000415

  • 90 mm / 3.5 & 5.5 Phi

Standard Battery

Standard Battery

Model Name: BS101-ME

Part Number: 98KA00000008

  • 7.4V / min. 5140 mAh Li-Polymer Battery, 2S1P
  • Dimensions: 153 x 122 x 11 mm
  • Weight: 258 g

OPTIONAL ACCESSORIES

Desk Dock

Desk Dock

Model Name: DD-M101M8

Part Number: 98K000A00052

  • USB 2.0 x 4 (Rear x2, Side x2)
  • LAN (10/100) / RS232
  • 12-19V DC IN

Micro SD Card

Micro SD Card

Model Name: MSD-16GB

Part Number: 76000000000V

  • 16G Micro SD Card

Shoulder Strap

Shoulder Strap

Model Name: SS-M101

Part Number: 98K000A0003Q

  • Fixed with screws
  • Adjustable cross-body strap (85-165cm) with pad
  • Weight: 67g

VESA Mount Kit

VESA Mount Kit

Model Name: VS-M101S

Part Number: 98K000A000F4

  • 75x75 mm VESA Mount

HDMI Adapter

HDMI Adapter

Model Name: TC-HDMI

Part Number: 9AN000000012

  • USB-C to 4K HDMI Adapter
  • USB-C Cable: 5.5 in./14.5cm

Carry Bag

Carry Bag

Model Name: CB-M101

Part Number: 9B000000003J

  • With Hand Carrier and Shoulder Strap
  • Separated pocket for accessories

Vehicle Charger

Vehicle Charger

Model Name: VCG-M101

Part Number: 9226065W19V0

  • 11~24V DC IN
  • 19V/ 3.42A DC OUT

Hand Strap

Hand Strap

Model Name: HS-M101

Part Number: 98K000A0003J

  • Fixed with screws
  • Adjustable for both battery sizes

Battery Charger

Battery Charger

Model Name: BC-M101-2N

Part Number: 98K000A000DK

  • Dual-bay charging dock
  • Power level LED indicators
  • Buzzer to indicate battery is inserted
  • Supports up to 3 set of dock interconnected

Vehicle Dock

Vehicle Dock

Model Name: VD-M101M8

Part Number: 98K000A00051

  • VESA Mounting support
  • USB 2.0 x 4 (Rear x2, Bottom x2)
  • 9-36V DC IN with 3-pin terminal block
  • Easy insert and release with Key-Lock

Vehicle Cradle

Vehicle Cradle

Model Name: VC-M101M8

Part Number: 98TA10Z00005

  • Keeps the tablet securely fastened on moving vehicles
  • Anti-theft design with key lockable cradle
  • Wide power voltage input (9~36V DC-in)
  • IP52 design (Rain proof)
  • VESA standard for various standard fixtures

Micro USB Cable

Micro USB Cable

Model Name: MUS

Part Number: 9487049050K0

  • This USB cable provides superior communication
