M700DM9 7-inch ARM A73 + A53 Rugged Android Tablet

KEY FEATURES

  • 7 inch android tablet, 1280 x 720 TFT Panel with direct optical bonding
  • IP65 waterproof and dustproof
  • 4 GB RAM + 32 GB eMMC
  • Rated for extreme temperature use
  • Supports Android 11.0 OS, Sunlight readable android tablet
  • CERTIFICATIONS
  • FCC CE

M700DM9New Design

7-inch ARM A73 + A53 Rugged Android Tablet
Overview
Specification
Accessories
Winmate industrial Android tablet with optimized operational efficiencies in extreme hot and cold temperatures

Rated for Extreme Temperature Use

The M700DM9 industrial Android tablet can operate in temperatures ranging from -20 to 60 degrees Celsius (when charging) or -10 to 50 degrees Celsius (on battery). It offers the flexibility of use for cold chain logistics and many industrial use cases.


Winmate industrial Android tablet with uncompromised rugged mobility is being used by deliveryman

Outdoor Visibility

The 7 inch sunlight readable android tablet 1280 x 720 TFT LCD screen is made with optical bonding technology for sunlight readability with true-to-life colors. Use the industrial Android tablet on the road, inside the warehouse, or even in the retail store with no worries.

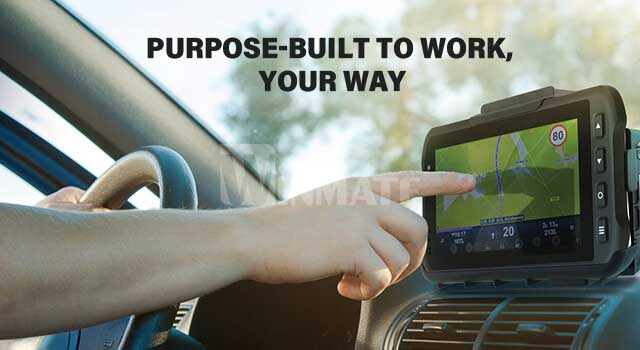

Purpose built Winmate industrial Android tablet to work your way as on vehicle computer

Ultimate Productivity for Field Work

M700DM9 comes with an 8MP front camera and 13MP rear camera with LED Auxiliary light and autofocus for precise and quick data capture. Also, available with the optional 1D/2D barcode scanner for additional data collection options.


Winmate industrial Android tablet is being held outdoor with a premium viewing experience

Ultimate versatility

With US military standard 810G, M700DM9 offers a lightweight, compact, rugged design. It can be suitable for all kinds of industrial fields. Use this tablet for in-vehicle applications with its docking station and adapter or hold it. Easily transform this device from an in-vehicle solution to a handheld device, where you can put the device into a carry bag for complete mobility.

Display

Size

7 inches

Resolution

1280x720

Type

Projected Capacitive Multi Touch

Panel Brightness

650 nits

Contrast Ratio

800:1

View Angles

80,80,80,80

Bonding

Optical Bonding for Sunlight Viewability

Touch Mode

Support Hand / Gloves and Rain Mode

System Specification

Processor

ARM A73 x 4 (2.0 GHz) + A53 x 4 (2.0 GHz)

Memory

4GB

Storage

64GB

Operating System

Android 11.0

WLAN

Support

BT

Support

WWAN

4G/LTE (Optional)

GNSS

GPS/GLONASS

RFID

NFC (Read / Write, Peer to Peer mode) (Optional)

Sensors

Ambient Light Sensor, E-Compass, Gyro, Acceleration Sensors

Camera

Front Camera

8MP Camera

Rear Camera

13MP Camera with LED Auxiliary Light (Auto Focus)

Mechanical

Dimension

212.4 x 132.8 x 19 mm

Weight

550g

IO Ports

USB Port

1 x USB Type C OTG

Audio

1 x Audio Combo connector (Mic in and Line Out) 2 x Built-in Mic 1 x Speaker 1 x Earphone

SD Card Slot

1 x Micro SD Card Slot

SIM Card Slot

1 x Micro SIM Card Slot

Indicator

2 x LED Indicators (Power, Battery)

Docking Connector

1 x Docking Connector

Environment

Operating Humidity

5% to 95% RH, Non-Condensing

Operating Temperature

-10°C to 50°C (Battery mode) -20°C to 60°C (Charging mode)

Storage Temperature

-30°C to 70°C

Shock

MIL-STD-810G Method 516.6 Procedure I

Vibration

MIL-STD-810G Method 514.6 Procedure I

Drop

MIL-STD-810G Method 516.6, 5 ft

IP rating

IP65, Compliance IEC60592

Certification

Certification

CE, FCC

Control

Button

1 x Volume + ,1 x Volume - , 1 x Power Button, 1 x Home Button, 1 x Menu Button, 1 x Return Button, 1 x Trigger Button

Power

Battery

3.7V 5300mAh

Battery Operating Time

20Hr

Power Rating

DC 5V

Adapter

Input: 100V-240V AC Output: DC 5V 3A

Security Function

SOTI MobiControl

SOTI MobiControl Compliance

Accessory

Accessory

Universal Adapter x1 Battery x1

Optional Accessory

USB Type-C Cable x1 Battery Charging Dock Vehicle Dock (Charging + Connectors) Vehicle Dock (Charging Only) Desk Dock Hand Strap Micro SD Card Capacitive Touch Stylus Vehicle Adapter HDMI Adapter

Barcode Scanner

Barcode Scanner

1D/2D Barcode Reader (Optional)

STANDARD ACCESSORIES

Universal Adapter

Universal Adapter

Model Name: 6A-181WP05

Part Number: 9226015W05V1

  • Input: AC 100-240V
  • Output: 5V 3A for M700DM8

Battery

Battery

Model Name: M700DT4

Part Number: 98K007SP002P

  • 3.7V 5300mAh Li-Poly removable battery

OPTIONAL ACCESSORIES

Capacitive Stylus

Capacitive Stylus

Model Name: CTS-V1

Part Number: 9B000000001D

  • 93mm/5.5Φ

Battery Charging Dock 2 Bay

Battery Charging Dock 2 Bay

Model Name: BD-5300-2

Part Number: 98TA00Z00003

  • PoGo Pin type charging slot
  • Power level LED Indicators
  • Supports multiple docking sets interconnected
  • Buzzer indicating the battery is inserted or alerting battery error state

Micro SD Card

Micro SD Card

Model Name: MSD-16GB

Part Number: 76000000000V

  • 16G Micro SD Card

Vehicle Adapter

Vehicle Adapter

Model Name: VA-10V

Part Number: 98TZ00ZZ0006

  • Input: 5V DC cigarette lighter socket
  • USB car charger
  • USB to DC jack Cable

Carry Bag

Carry Bag

Model Name: M700-CarryBag

Part Number: 9B000000000X

  • This durable bag protects M700 and allows users to carry it easily

HDMI Adapter

HDMI Adapter

Model Name: TC-HDMI

Part Number: 9AN000000012

  • USB-C to 4K HDMI Adapter
  • USB-C Cable: 5.5 in./14.5cm

USB Type-C cable

USB Type-C cable

Model Name: UTC

Part Number: 9480247090K0

Vehicle Dock (Charging Only)

Vehicle Dock (Charging Only)

Model Name: CVD-M700D

Part Number: 98TA07Z00003

  • Hold the Tablet tightly on the moving vehicle
  • Lockable design to avoid Tablet be taken away (with key)
  • Support both terminal block & 2.5ψp ower jack input
  • 9~36V DC-in wide range DC input
  • Bottom I/O supported: USBx2, LANx1, and COMx1
  • IP52 design (Rain proof)

Vehicle Dock

Vehicle Dock

Model Name: VD-M700D

Part Number: 98TA07Z00004

  • Hold the Tablet tightly on the moving vehicle
  • Lockable design to avoid Tablet be taken away (with key)
  • Support both terminal block & 2.5ψp ower jack input
  • 9~36V DC-in wide range DC input
  • Bottom I/O supported: USBx2, LANx1, and COMx1
  • IP52 design (Rain proof)

Desk Dock

Desk Dock

Model Name: DD-M700DM8

Part Number: 98TA07Z00005

  • 5V DC-in for Charging
  • USB 2.0 x 4
  • 1 x COM port
  • 1 x LAN 10/100M
