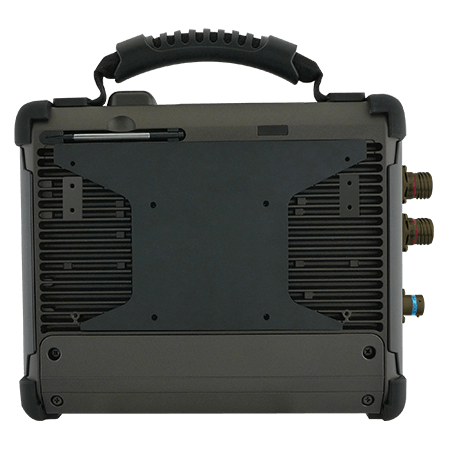

R08IW8M-RTU1ML 8.4" Intel® Core™ i5-8265U Defence Ultra Rugged Tablet

KEY FEATURES

  • 8th Gen. Intel® Core™ i5-8265U, 1.6 GHz (turbo up to 3.90 GHz)
  • 8.4" 800 x 600 Resolution Transflective TFT-LCD Panel
  • With daylight-readable screen 600 nits optical bonding for clarity increasing and readability enhancing
  • Ecological seals protect ports as well as connectors from moisture and dust
  • Adjustable Kickstand that is Convertible to a handle
  • Magnesium Alloy Housing with All-Around Elastomeric Rubber
  • MIL-STD-38999 connector for LAN/USB2.0, RS232/RS422 and DC Power Input
  • 8.4inch Defence Windows Ultra Rugged Tablet PC
  • CERTIFICATIONS
  • MIL-­STD 461F MIL-STD 810G TELEC FCC CE

R08IW8M-RTU1MLNew Design

8.4" Intel® Core™ i5-8265U Defence Ultra Rugged Tablet
Overview
Specification
Accessories
Winmate 8.4-inch Defence Defence Ultra Rugged Tablet PC  built to survive in the most demanding conditions

Ultra-Rugged Design Built to Survive

The Defence Ultra Rugged Tablets are built to survive in the most demanding conditions and harshest environments. Tailored for defence applications and packed in an ultra-rugged housing with up to IP65 rating passed the MIL-STD-810 test and withstand the rigors of outdoor environments - water, dust, weather changes, strong vibration and drop up to 4 ft. - that may be necessary for defence personal.


Winmate 8.4-inch Defence Defence Ultra Rugged Tablet PC have defence-qualified MIL-STD-38999 connectors

Smooth Integration into Defence Environment

For smooth integration into the existing defence environment, Winmate's Defence Ultra Rugged Tablets have defence-qualified MIL-STD-38999 connectors with exceptional versatility for LAN/ USB 2.0, RS-232/ RS-422, and DC power input to enable effortless connection to Defence equipment.


Winmate 8.4-inch Defence Defence Ultra Rugged Tablet PC with sunlight-readable display screen gives a premium outdoor viewing experience

Sunlight Readable Display with Touchscreen

The sunlight-readable display screen gives a premium outdoor viewing experience for those in the field. Touchscreen and physical user-defined buttons add extra convenience for data input and operations even when wearing gloves.


Winmate 8.4-inch Defence Defence Ultra Rugged Tablet PC features Real-time data access to the right information

Battlefield Communications with Real-Time Wireless Connectivity

Real-time data access to the right information is crucial for mission-critical and battlefield operations. With wireless connectivity onboard, the Defence Ultra Rugged Tablets offer fast and accurate GPS with an outstanding horizontal position accuracy of 2.5 meters, WLAN, BT, and optional WWAN connectivity to enable robust communications anytime and anywhere.


Winmate 8.4-inch Defence Defence Ultra Rugged Tablet PC enables compliance with MIL-STD-461F for applications requiring MIL-STD-461F certification

Meeting the MIL-STD-461F Requirements with EMI/ ITO Mesh Solution

MIL-STD-461F is a requirement for the control of electromagnetic interference characteristics of subsystems and equipment. The EMI solution enables compliance with MIL-STD-461F for applications requiring MIL-STD-461F certification. Optional EMI/ ITO mesh solution is available for all Winmate's Defence Ultra Rugged Tablets enabling devices to meet MIL-STD-461F emissions requirements.

Display

Size

8.4 inches

Touch / Glass

Resistive Touch Screen

Resolution

800x600

Panel Brightness

600 nits

Contrast Ratio

600:1

View Angles

75,75,60,70

System Specification

Processor

Intel Core i5-8265U 1.6GHz (up to 3.9GHz)

Memory

4GB SODIMM DDR4-2400 8GB SODIMM DDR4-2400 (Optional) 16GB SODIMM DDR4-2400 (Optional)

Storage

1 x 128GB M.2 SSD 256GB M.2 SSD (Optional) 512GB M.2 SSD (Optional)

Security

TPM 2.0

Operating System

Windows 10 IoT Enterprise (64 bit) Linux Ubuntu 20.04 (Optional)

WLAN

802.11 a/b/g/n/ac

BT

Support

WWAN

4G/ LTE or 3G (Optional)

GNSS

Supports GPS GLONASS, Galileo, BeiDou (Optional)

Mechanical

Dimension

266 x 222 x 50 mm

Docking Housing

nan

Weight

2.4 kg

Enclosure

Aluminum Magnesium Alloy Housing with Protective Rubber

Cooling System

Fanless Design

Power

Battery

11.1V, 5200mAh Lithium-Ion Battery (6cells)

Battery Operating Time

8 Hours

Power Rating

9-36V DC in (MIL-DTL-38999/1 connector)

Adapter

100-240V, 50-60Hz / 19V DC

Environment

Operating Humidity

10% to 90% RH, non-condensing

Operating Temperature

-20°C to 60°C (AC mode), -10°C to 50°C (Battery mode)

Storage Temperature

-30°C to 70°C (-22°F to 158°F)

Shock

MIL-STD-810G Method 516.6 Procedure I

Vibration

MIL-STD-810G Method 514.6 Procedure I

Drop

MIL-STD-810G Method 516.6, 4 ft

IP rating

IP54

Certification

Certification

CE, FCC

Control

Button

1 x Power, 1 x Menu, 3 x Function Key, 2 x Brightness Control Key

Accessory

Accessory

Cordon d’alimentation et adapteur Batterie standard Guide de démarrage rapide Manuel papier + CD Stylet Câble alimentation + Ethernet MILSTD38999 Câble RS232/RS422/RS852 MILSTD38999

Optional Accessory

Station d’accueil multifonctions Kit d’adaptation pour véhicule Chargeur voiture Lanière pour main Lanière épaule Sacoche

IO Ports

USB Port

2 x USB 3.0, 1 x USB 2.0(MIL-STD-38999 connector)

Serial Port

1 x RS232/RS422 Serial COM Port(MIL-STD-38999 connector)

LAN

1 x RJ45-10/100/1000 Mbps LAN(MIL-STD-38999 connector)

Audio

2 x 1 Watt Speaker

SD Card Slot

1 x Micro SD Card Slot

SIM Card Slot

1 x Micro SIM Card Slot

Indicator

4x LED Indicator for Power, Battery, SSD, RF status

Camera

Front Camera

2MP Front Camera (Optional)

Rear Camera

5MP Rear Camera with auto-focus (Optional)

OPTIONAL ACCESSORIES

Multi-functional Desktop Docking station

Multi-functional Desktop Docking station

Model Name: MFD-08

Part Number: 99KK00000009

Adjustable Kickstand

Adjustable Kickstand

Model Name: KS-R10I8HM

Part Number: 98KT00A0000S

Spare Part Battery

Spare Part Battery

Model Name: RTB-3

Part Number: 99KK00000005

Vehicle Mounting Charger Kit

Vehicle Mounting  Charger Kit

Model Name: VMDS-08

Part Number: 99KK08400003

Handstrap

Handstrap

Model Name: HS-08104

Part Number: 99KK00000001

Soft case

Soft case

Model Name: SC-08104

Part Number: 9B0000000059

Shoulder Handle (Carrying Belt)

Shoulder Handle  (Carrying Belt)

Model Name: SS-08104

Part Number: 99KK00000002

Carry Bag

Carry Bag

Model Name: CB-08104

Part Number: 98K008A0000N
