R10IM3S-GCT210.4" ARM A53 G-WIN GC-Series Front IP65 PCAP Panel PC

KEY FEATURES

  • ARM A53 Quad Core 2.0GHz CPU
  • Fanless cooling system and ultra-low power consumption
  • Front IP65 for protection against water and dust
  • A true flat, easy-to-clean front surface with edge-to-edge design
  • Plenty of I/O, including 1 x Micro USB, 2 x USB 2.0; 1 x RS232/422/485; 1 x RJ45; 1 x Micro SD Slot; 1 x Micro HDMI (Optional)
  • CERTIFICATIONS
  • FCC CE

R10IM3S-GCT2

10.4" ARM A53 G-WIN GC-Series Front IP65 PCAP Panel PC
Overview
Specification
Signature True Flat Surface

Signature True Flat Surface

The stylish design comes with a purely flat surface and edge-to-edge bezel. Maintenance and cleaning are now easier than ever. Easy to maintain and clean, to prevent water or liquid droplets penetrates every opening in the device. There will be no more clogged dust on edges with the true flat surface!


Convenient Onscreen Operations with PCAP Multi-Touch

Convenient Onscreen Operations with PCAP Multi-Touch

The G-WIN GC Series Panel PC HMIs offer an ultimate touch experience with a projected capacitive (PCAP) multi-touch screen. This technology allows enjoying every touch and improving the convenience of using the device. Thus it helps to enhance the overall customer experience. Enjoy every touch and convenience of using the device!


Support the Latest Android OS

Support the Latest Android OS

The G-WIN GC Series Panel PC HMIs support the latest Android operating system for your unique embedded application. Software integration options that come with Android platforms open vast possibilities for customization. Develop your unique application with Winmate G-WIN GC Series Panel PC HMI!

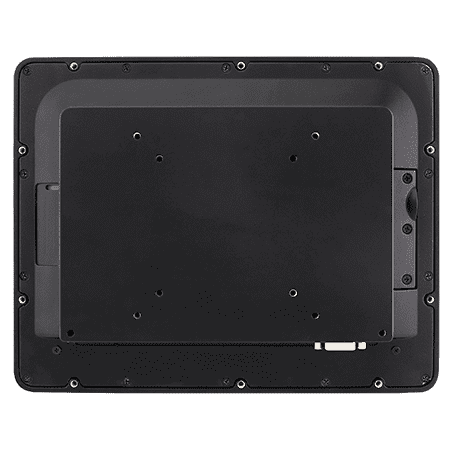

VESA Mount

VESA Mount

The G-WIN GC Series Panel PC HMIs also comes with a VESA pattern for a wall, desk, and in-vehicle installation. Enable access to all of your I/O in high-traffic areas according to your specific requirements. Easy access to I/O terminals in all the industrial scenarios.


Water and Dust Protection

Water and Dust Protection

Depending on the model, G-WIN GC Series Panel PC HMIs feature front IP65 water and dust resistance, suitable to withstand the rigors of industrial environments.

Display

Touch / Glass

Projected Capacitive Multi Touch Screen

Size

10.4 inches

Resolution

1024x768

Panel Brightness

350 nits 1000 nits(Optional)

Contrast Ratio

1000:1

View Angles

88,88,88,88

Active Area

210.4x157.8 mm

System Specification

Processor

ARM A53 Quad Core 2.0GHz

Memory

4GB LPDDR4

Storage

32GB eMMC

Operating System

Android 11

WLAN

Support (Optional)

BT

Support (Optional)

Mechanical

Dimension

252.41 x 197.8 x 36.4 mm

Cut out

230x178 mm

Mounting

Panel Mount VESA Mount

Enclosure

Aluminum

Cooling System

Fanless design

Environment

Operating Humidity

10% to 90% (non­condensing)

Operating Temperature

0~50°C

Storage Temperature

­-20~60°C

Shock

MIL-STD-810G Method 516.6

Vibration

MIL-STD-810G Method 514.6

IP rating

Front IP65

Certification

Certification

CE, FCC

IO Ports

USB Port

2 x USB 2.0 Type A 1 x Micro USB 2.0 OTG

Serial Port

1 x RS232/422/485 (Default RS232)

LAN

1 x LAN 10/100/1000 Mbps

Video

1 x Micro HDMI Output (Optional)

SD Card Slot

1 x Micro SD card slot (Max to 32GB)

Accessory

Accessory

Quick Start Guide(Hardcopy) AC Adapter 12V/50W Power Cord 3 Pin Terminal Block to DC Jack

Power

Power Rating

12V DC with Terminal Block 9~36V (Optional)

Adapter

12V 50W

Control

Button

1 x Power Button (Optional)
