R10IWK8M-RTT2GP 10.4" Rugged Field Tablets with Intel® Core™ i5-8265U

KEY FEATURES

  • 8th Gen. Intel® Core™ i5-8265U 1.6 GHz (turbo up to 3.9GHz) rugged field tablets
  • 10.4" 1024 x 768 Resolution Transflective TFT-LCD Panel
  • Plastic front cover and Alu-Mg Alloy rear cover with Protective Rubbe
  • Trusted platform module (TPM) V2.0
  • Bulit-in Wireless / BT / GPS
  • Optional 4G LTE mobile computers
  • Adjustable Kickstand that is convertable to a handle (Optional)
  • CERTIFICATIONS
  • FCC CE

R10IWK8M-RTT2GPNew Design

10.4" Rugged Field Tablets with Intel® Core™ i5-8265U
Overview
Specification
Accessories
Incredible performance with Intel® processor

High Performance with Low Power Consumption

Powered by Intel's processor, the Ultra Rugged Tablet Series offers high performance and low power consumption for some of the most demanding professional-grade applications.


Premium viewing experience of rugged field tablets in outdoor

Sunlight Readable Screen with Resistive Touch

With its sunlight-readable screen the Ultra Rugged Tablet Series offers a premium viewing experience both indoors and outdoors. It also offers convenient user controls with four wire anti-scratch resistive touchscreen.


Soldiers are using all terrain ultra rugged tablet

Ultra Rugged Design Built to Survive, MIL-STD-461G

The Ultra Rugged Tablet Series is built to survive temperature changes, drops, shock, and vibration. Tailored for industrial-grade applications and packed in ultra-rugged magnesium-aluminum alloy housing passed the MIL-STD-810G and MIL-STD-461G test withstand the rigors of outdoor environments - water, dust, weather changes, and strong vibration.


Winmate rugged field tablets with complete connectivity

Real-Time Wireless Connectivity

Real-time data access to the right information is crucial for industrial, commercial, and field operations. With wireless connectivity onboard, the Ultra Rugged Tablet Series offers GPS, WLAN, BT, and optional WWAN connectivity to enable robust communications anytime and anywhere.

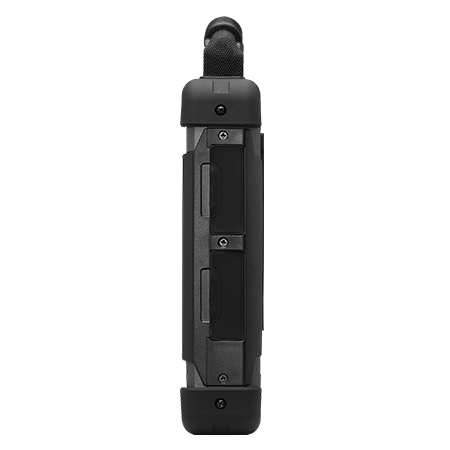

Rugged field tablets is a compact take anywhere tablet with handle

Ergonomic Design

Despite the ruggedness, the Ultra Rugged Tablet Series is surprisingly handy and easy to use with an easy-to-carry ergonomic handle and an optional fold-up kickstand, so your worker can transport the device more easily or set it up when watching an instruction or checking operation procedures.

Display

Size

10.4 inches

Touch / Glass

Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional)

Resolution

1024x768

Panel Brightness

700.0 nits

Contrast Ratio

1000:1

View Angles

88,88,88,88

System Specification

Processor

Intel Core i5-8265U 1.6GHz (up to 3.9GHz)

Memory

1 x SO-DIMM, DDR4 2400 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional)

Storage

1 x M.2 2242 SSD 128GB M.2 2242 SSD up to 512GB (Optional) M.2 2280 NVME SSD, up to 2TB (Optional)

Ethernet controller

2 x Intel® Ethernet Controller

Security

TPM 2.0

Operating System

Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional)

WLAN

Wi-Fi Support

BT

BT Support

WWAN

4G/ LTE or 3G (Optional)

GNSS

Supports GPS GLONASS, Galileo, BeiDou) (Optional)

Mechanical

Dimension

266 x 224 x 50.4 mm

Weight

2.4 kg

Mounting

VESA Mount

Enclosure

Magnesium Alloy & ABS+PC

Cooling System

Fanless design

Environment

Operating Humidity

10% to 90% RH, Non-Condensing

Operating Temperature

-10°C to 50°C (14°F to 122°F) (Battery mode) -20°C to 60°C (4°F to 158°F) (AC mode)"

Storage Temperature

-20°C to 60°C

Shock

MIL-STD-810G Method 516.6 Procedure I

Vibration

MIL-STD-810G Method 514.6 Procedure I

Drop

MIL-STD-810G Method 516.6 Procedure IV

IP rating

IP54

Certification

Certification

CE, FCC

IO Ports

USB Port

2 x USB3.2 Gen1x1 (Type-A)

Serial Port

1 x RS232/422/485 (Default RS232)

LAN

1 x Giga LAN RJ45 Connector

Audio

1 x Audio Combo Connector (Mic in / Line Out) 2 x Speaker

SD Card Slot

1 x Micro SD card Slot

SIM Card Slot

1 x Micro SIM card Slot

Indicator

1 x LED Indicator for power 1 x LED Indicator for HDD 1 x LED Indicator for Battery status 1 x LED Indicator for Wifi

Accessory

Accessory

100~240V AC to 19V DC 65W Adapter Power Cord 11.1V / 5200mAh Battery Quick Start Guide Stylus

Optional Accessory

Adjustable Kickstand (Optional) Multi-functional Desktop Docking station (Optional) Vehicle Mounting Charger Kit (Optional) Car Power Charger (Optional) Hand Strap (Optional) Shoulder Strap (Optional) Soft Shell Case (Optional) Carry Bag (Optional)

Barcode Scanner

Barcode Scanner

2D Barcode Reader (Optional)

Camera

Front Camera

2MP Camera (Optional)

Rear Camera

5MP Autofocus Camera (Optional)

OPTIONAL ACCESSORIES

Multi-functional Desktop Docking station

Multi-functional Desktop Docking station

Model Name: MFD-08

Part Number: 99KK00000009

Adjustable Kickstand

Adjustable Kickstand

Model Name: KS-R10I8HM

Part Number: 98KT00A0000S

Spare Part Battery

Spare Part Battery

Model Name: RTB-3

Part Number: 99KK00000005

Vehicle Mounting Charger Kit

Vehicle Mounting  Charger Kit

Model Name: VMDS-08

Part Number: 99KK08400003

Handstrap

Handstrap

Model Name: HS-08104

Part Number: 99KK00000001

Soft case

Soft case

Model Name: SC-08104

Part Number: 9B0000000059

Shoulder Handle (Carrying Belt)

Shoulder Handle  (Carrying Belt)

Model Name: SS-08104

Part Number: 99KK00000002

Carry Bag

Carry Bag

Model Name: CB-08104

Part Number: 98K008A0000N
