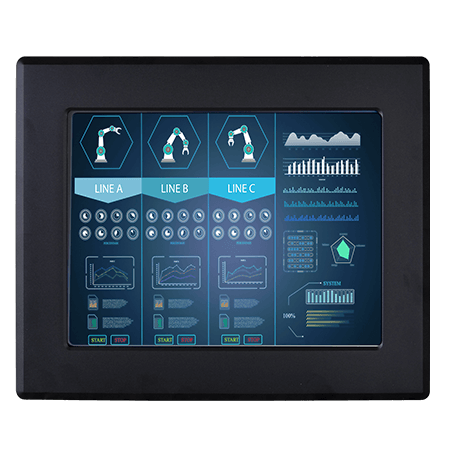

R10L100-PMT2HB 10.4" Panel Mount High Brightness Display

KEY FEATURES

  • 10.4", 1024 x 768
  • VGA and HDMI input
  • Panel mount
  • VESA mount
  • High Brightness
  • CERTIFICATIONS
  • FCC CE

R10L100-PMT2HBNew Design

10.4" Panel Mount High Brightness Display
Overview
Specification
Winmate durable panel mount high brightness display for long-term usage in production facilities

Low Power Consumption

This display is designed for low power consumption and effective heat dissipation, making it durable for long-term usage in production facilities. It is the ultimate energy-efficient solution.


Winmate panel mount high brightness display supports panel mount and VESA mount

Easy Mounting

This industrial display comes with a universal mounting options for wall and desk mounting. Enable easy installation and use in various industries according to your specific requirements.


Winmate panel mount display R10L100-PMT2HB with high brightness

High Brightness

Winmate High brightness displays provide trustworthy 24/7 operation in virtually any scenario. Protective anti-reflective glass that is glued with an optical-grade adhesive to the front of the display to enhance its readability under direct sunlight or in high humidity outdoor environments. This method eliminates the air gap and bubbles between the cover glass and the display and significantly reduces reflections. At the same time, the contrast ratio increases as reflections are reduced.


Winmate panel mount display R10L100-PMT2HB with diversified signal interface

HDMI, VGA Signal Interfaces

For easy integration to all embedded boards and systems, the Winmate Panel Mount Display comes with VGA, HDMI signal interfaces. Both interfaces are easy to use and support most of the industrial and commercial applications.


Winmate touch monitor offers superior quality for factory, business, and commercial applications

High Reliability for Various Industrial Applications

Winmate industrial monitors are designed to provide superior picture quality and state-of-the-art features in a rugged enclosure, ensuring years of reliable operation in any factory environment. Available in various sizes, housing materials, and optional features make these displays highly versatile and fit different use cases.


Winmate industrial vibrant and outstanding image quality

Outstanding Image Quality

Sophisticated timeless design coupled with Winmate expertise in industrial computers and touchscreen not only offers you a top product at an attractive cost but also gives you a sense of technical superiority and the future. Winmate display modules are perfectly assembled in the clean room for easy further processing.


Winmate technical support and customization industrial monitors

Display Ports and Customization

Winmate provides a wide range of customization options to meet your requirements, including product size, customer logo, LCD panel brightness, glass cover surface treatment, display ports, and many more. The power plug is selected according to the different styles of each country. Contact our team for more information.

Display

Size

10.4 inches

Touch / Glass

Resistive Touch Screen Protection Glass w/o Touch Function (Optional) SAW Touch (Surface Acoustic Wave) (Optional)

Resolution

1024x768

Panel Brightness

1000 nits

Contrast Ratio

1000:1

View Angles

88,88,88,88

Display Color

16.2M Colors

Active Area

210.4x157.8 mm

Environment

Operating Humidity

10% to 90% (non-condensing)

Operating Temperature

0~50°C

Storage Temperature

-10~60°C

Certification

Certification

CE, FCC

IO Ports

USB Port

1 x USB for Touch Screen

Video

1 x VGA 1 x HDMI (Optional) 1 x DVI (Optional)

Audio

Audio line in (3.5mm) + 2 x Speaker (Optional)

Mechanical

Dimension

284 x 234 x 42 mm

Cut out

263 x 207mm

Mounting

VESA Mount/ Panel Mount

Enclosure

Metal Housing with Aluminum Bezel

Cooling System

Fanless Design

Accessory

Accessory

1 x VGA cable 1 x HDMI cable 100~240V AC to DC Adapter Power Cord Manual VESA screws(Varies by product)

Optional Accessory

Remote Controller (Optional,Varies by product)

Power

Power Rating

12V DC input

Control

Button

5 Keys: - , + , Power , Esc , Enter
