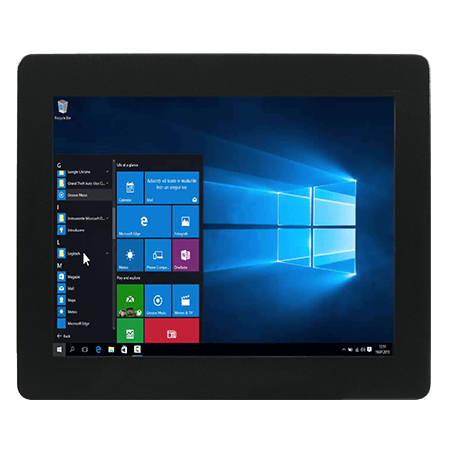

R12IB3S-CHM2WT 12.1” Intel® Celeron® N2930 Chassis Wide Temperature Panel PC
KEY FEATURES
- 12.1" TFT LCD
- Intel® Celeron® Bay Trail-M N2930, 1.83 GHz Processor
- SODIMM DDR3L 1600/1333, max. 8GB
- 2 x RS232, 1 x RS232/422/485, 1 x USB 3.0, 1 x USB 2.0, 2 x RJ45, 2 x PS/2, 1 x VGA, 1 x SATA II, 2 x Mini PCIe, 1 x eDP
- Front IP65
- CERTIFICATIONS
-
Resistive Touch / Optional Protective Glass
For the convenience of the operators in the industrial environment, the Panel PC offers flexible surface options such as cover glass (when touch is not required) and a resistive touch screen to meet different specifications.
Low Power Consumption
This Panel PC is designed for low power consumption and effective heat dissipation, making it durable for long-term usage in production facilities. It is the ultimate energy-efficient solution.
Rear and VESA mounting
Several mounting solutions such as rear and VESA mounting that users can choose the most suitable mounting options for their application.
Size
12.1 inches
Touch / Glass
Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional)
Resolution
1024x768
Panel Brightness
500.0 nits
Contrast Ratio
1000:1
View Angles
89,89,89,89
Active Area
245.76x184.32 mm
Processor
Intel Celeron N2930 1.83GHz (up to 2.16GHz)
Memory
1 x SO-DIMM, DDR3L 1600 MHz, 4GB 8GB (Optional)
Storage
1 x mSATA SSD 128GB 256GB (Optional) 512GB (Optional)
Ethernet controller
2 x Intel® Ethernet Controller
Operating System
Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional)
WLAN
Support (Optional)
BT
Support (Optional)
Dimension
303 x 217 x 60 mm
Weight
3.5 kg
Mounting
VESA Mount
Enclosure
Metal Housing
Cooling System
Fanless design
Operating Humidity
30% to 90% RH, Non-Condensing
Operating Temperature
-20°C to 60°C
Storage Temperature
-25°C to 65°C
Certification
CE, FCC
USB Port
1 x USB3.2 Gen1x1 (Type-A) 1 x USB2.0 (Type-A)
Serial Port
1 x RS232/422/485 (Default RS232) 1 x RS232
LAN
2 x Giga LAN RJ45 Connector
Video
1 x HDMI 1.4 (Optional)
Audio
2 x Speaker
Expansion Port
1 x mPCIe slot(for SSD) 1 x mPCIe slot(for Wi-Fi module)
Indicator
1 x LED Indicator for power 1 x LED Indicator for storage
Brightness Knob
1 x Brightness Adjustment Knob
mini PCIe
1 x Mini PCIE(For WLAN)
Power Input
1 x 12V DC, 2.5φ DC jack
Button
1 x Power Button 1 x Reset Button
Accessory
100~240V AC to DC Adapter Power Cord VESA screws
Power Rating
12V DC
Adapter
12V 50W
