R12L600-OFM2HB 12.1" Open Frame High Brightness Display
- 12.1", 1024 x 768 Open Frame High Brightness Display
- VGA and HDMI input
- Open frame
- VESA mount
- High brightness
Low Power Consumption
This display is designed for low power consumption and effective heat dissipation, making it durable for long-term usage in production facilities. It is the ultimate energy-efficient solution.

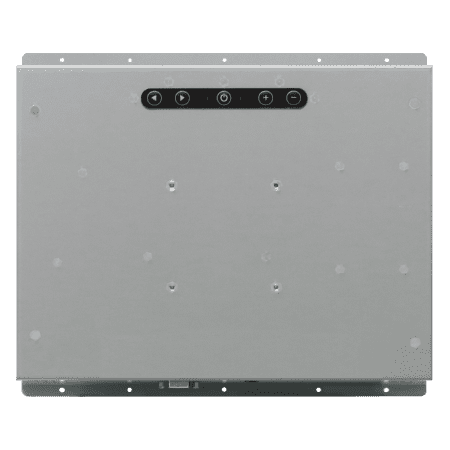

Rear and VESA mounting
Several mounting solutions such as rear and VESA mounting allow users to choose the most suitable mounting options for their application.
Open Frame Monitor
An Open Frame Monitor provides an LCD with the supporting structure to protect electronic components without using an enclosure or bezel. VESA mounting makes this monitor easy to install, making it the perfect solution for ATMs, vending machines, casino monitors, airport information displays, and mall kiosks.
Winmate High brightness displays provide trustworthy 24/7 operation in virtually any scenario. Protective anti-reflective glass that is glued with an optical-grade adhesive to the front of the display to enhance its readability under direct sunlight or in high humidity outdoor environments. This method eliminates the air gap and bubbles between the cover glass and the display and significantly reduces reflections. At the same time, the contrast ratio increases as reflections are reduced.
High Reliability for Various Industrial Applications
Winmate industrial monitors are designed to provide superior picture quality and state-of-the-art features in a rugged enclosure, ensuring years of reliable operation in any factory environment. Available in various sizes, housing materials, and optional features make these displays highly versatile and fit different use cases.
Outstanding Image Quality
Sophisticated timeless design coupled with Winmate expertise in industrial computers and touchscreen not only offers you a top product at an attractive cost but also gives you a sense of technical superiority and the future. Winmate display modules are perfectly assembled in the clean room for easy further processing.
Display Ports and Customization
Winmate provides a wide range of customization options to meet your requirements, including product size, customer logo, LCD panel brightness, glass cover surface treatment, display ports, and many more. The power plug is selected according to the different styles of each country. Contact our team for more information.
Touch / Glass
Resistive Touch Screen (Optional) Protection Glass w/o Touch Function (Optional) SAW Touch (Surface Acoustic Wave) (Optional)
10% to 90% RH, Non-Condensing
0°C to 50°C
-10°C to 60°C
1 x USB for Touch Screen (Optional)
1 x VGA 1 x HDMI (Optional) 1 x DVI (Optional)
Audio line in (3.5mm) (Optional) 2 x Speaker (Optional)
300 x 250 x 40 mm
VESA Mount/ Rear Mount
1 x VGA cable 1 x HDMI cable 100~240V AC to DC Adapter Power Cord Manual VESA screws(Varies by product)
Remote Controller (Optional,Varies by product)
12V DC in
5 Keys: - , + , Power , Esc , Enter
