R15FA3S-PTC3 15" NXP i.MX6 HMI Panel PC

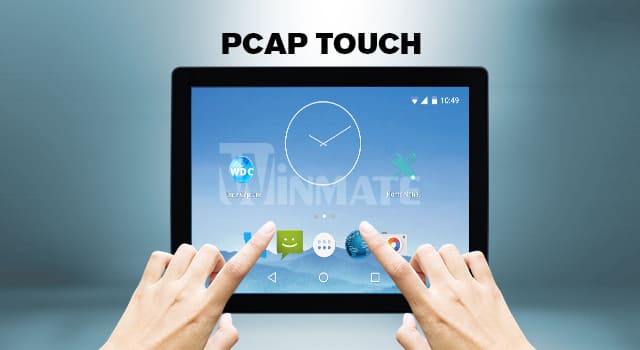

A lot of people recognize a COMPUTER (personal computer) as a multi-purpose electronic computer for private use. So, exactly what is a Modular Panel Computer? Modular computers reduced the development of e-waste that making them environmentally friendly. As the name recommends, a modular computer is a computer that has individually-housed parts or components. What is a Conventional Panel PC? To start with, a panel PC enables a far better visual presentation of a control. Panel Computers likewise regulate the entire production line from one central point. One more massive advantage is the built-in touchscreen in Panel PCs, which is more convenient for use. As opposed to managing a control panel with various puzzling choices, customers can simply operate a touchscreen interface that has the full control system visually drawn up. Due to the touchscreen attributes, panel PCs give the PC systems much more flexibility. Next off, various touchscreen types are used depending on the application. Extra enhancements, for example, resistive-type if individuals need to put on handwear covers or forecasted capacitive-type if individuals require screens with more than one touch point. Consequently, panel Computers boost performance by offering an enormously easy-to-use interface, so as screens grow as well as have greater resolutions. On the other hand, panel PCs typically include a fanless cooling system, which offers a long use life, low failure rate, and high system consistency. If developed with industrial-grade or military-grade components, industrial panel Computers can put in rough atmospheres and also last far longer than daily computers. Winmate Industrial HMI Panel PCs Support 9th Gen. Intel® Core™ i3/ i5/ i7 Processor (Coffee Lake Refresh). Specific models are available for various industrial applications - factory automation, control rooms, heavy-duty industrial environments, and embedded kiosks. Winmate, a rugged computing and embedded solutions provider for industries operating in some of the most challenging environments, is extending the portfolio of its proven industrial HMI panel PC series. Winmate’s industrial Panel PCs featuring 9th Gen. Intel® Core™ i3/ i5/ i7 (Coffee Lake Refresh) processor are now available as GC Series for use in heavy duty industrial environments, as PO Series for embedded kiosks, and as Standard Industrial Panel PC (Chassis/ Open Frame/ Front IP65 / Panel Mount) for various industrial application scenarios. All new versions are available immediately. G-WIN GC Series HMI Panel PC The GC Series version is specifically designed for heavy-duty applications for those looking for rugged construction. The rear cover is made of aluminum and features IP65 water and dust protection, suitable for industrial applications and machine control. The display comes with a PCAP touchscreen. The displays are available in display sizes of 21.5 and 23.8 inches. PO Series HMI Panel PC The PO Series HMI Panel PC offers an ultimate touch experience with a projected capacitive (PCAP) multi-touch screen in an open frame housing suitable for embedded applications. The displays are available in display sizes of 15, 17, 18.5, 19, 21.5, and 23.8 inches. Standard Industrial Panel PC (15” and up) Chassis/ Open Frame/ Front IP65 / Panel Mount Standard Industrial Panel PC comes in different mechanical design options – chassis, open frame, front IP65, and panel mount - with a screen size ranging from 15-inches and up. The display features a PCAP touchscreen for intuitive onscreen operations. Technical details about the new HMI Panel PCs Winmate's industrial HMI Panel PC product family utilizes 9th Gen. Intel® Core™ i3/ i5/ i7 (Coffee Lake Refresh) processor for a fantastic multi-core performance. They feature 4 GB DDR4 2400 MHz system memory by default (options up to 16 GB) and flexible storage devices 64 GB M.2 2242 M-key SSD (options up to 512 GB). Expansions available M.2 2242/2280 slot for NVME SSD or SATA III SSD, M.2 2232 E-Key slot for half-size WiFi module, and one PCIe 3.0 (x16) slot. Winmate's HMI Panel PC feature a variety of connections: two Giga LAN RJ45 ports, four 4 x USB 3.2 Gen.1 (Type-A) ports, one RS232, and one RS-232/422/485 serial communication port. For video transmission the panel PCs feature one DP1.2, optional HDMI1.4 is available. Specific models are available for most industrial and commercial applications. Support Windows 10 IoT Enterprise or Linux Ubuntu 18.04 operating system. For secure cloud connectivity, a TPM 2.0 Security Chip is integrated. Featured Industrial HMI Panel PC Purpose-built for industrial automation. Rugged and powerful. They are engineered to drive productivity in the most challenging environments. Winmate R15 PT series HMI Display Size 15.0 inches, Touch / Glass, Projected Capacitive Multi-Touch Screen, Anti-glare Coating (Optional). Resolution1024x768, Panel Brightness 350 nits. Contrast Ratio 800:1. View Angles 80,80,70,80, System Specification Processor NXP i.MX6 Dual Core, 1.0GHz, Memory 1GB and 2GB (Optional). Storage Onboard 16GB eMMC, Onboard 32GB eMMC (Optional). Operating System Linux Ubuntu 18.04 (Optional), Android 6.0 (Optional),Debian 7.0 (Optional), Linux 4.1.15 QT 5.5 (Optional). Environment Operating Humidity 10% to 90% (non-condensing), Operating Temperature 0~50°C. Storage Temperature -20~60°C. IP rating with Front IP65, Certification CE, FCC, Mechanical Dimension 352.5 x 276.7 x 45 mm, Mounting VESA Mount (100x100mm, 75x75mm), Enclosure Plastic Cooling System, Fanless Design. IO Ports USB Port,1 x USB 2.0,1 x USB OTG – Connect to PC for Client Use and Update Image, 1 x Mini USB– For Linux Debug. Serial Port 1 x RS-232/422/485, 1 x CANBUS (DB9). LAN, 1 x RJ 45-10/100/1000 Mbps 1 x RJ 45-10/100/1000 Mbps with PoE (Optional). Audio 2 x Speaker,SD Card Slot, 1 x Micro SD Card Reader. Indicator Power LED Indicator. with POE Power Device (PD), follows IEEE 802.3at (25 W) and Control Button,1 x Power Button, and 1 x Reset Button. WINMATE's Industrial HMI Panels Utilize Open Up Conventional IT Protocols and Interfaces, and also Communications for Connecting, Tracking, and also Controlling Automation Devices Via OPC UA. WINMATE's Embedded HMI Panel Sustains Binary TCP Protocols, as well as OPC UA, OPC DA, and OPC.NET Interfaces, and OPC UA APIs for Automation, Sector 4.0 as well as Industrial IoT Applications. WINMATE a pioneer, designer, and supplier of Human Machine Interface (HMI) Touch Panels, Operator User Interface Terminals, Industrial Box Computers, Internet Thin Customers, and Industrial Monitors introduces their intelligent profile of touch panels PCs and also HMIs support open conventional IT and also interfaces for communications through methods such as OPC UA, OPC DA, OPC.NET, and binary TCP methods. Open Up System Communications (OPC) is a series of requirements and also specs for commercial telecommunication. Established by the industrial automation industry, the initial conventional OLE for Process Control (Item Linking and Embedding for Process Control). The computer specifies the interaction of real-time plant information between control devices from different makers. With integrated support for various open interaction methods, WINMATE's intelligent family of embedded HMIs, as well as touchscreen user interfaces, offer clients maximum connectivity, communications, and also networking capabilities. WINMATE's versatile collection of Smart Touch Panel Computers, including the Compact, Requirement, and also Costs HMI models which are made to sustain these preferred methods and also requirements, permit very easy control, communications as well as surveillance of automation controls, gadgets, and also equipment in industrial automation, Sector 4.0 and IoT applications. WINMATE Offers Adaptability and also Flexibility Sustaining Open Protocols and Specifications for Communications, Control as well as Visualization for M2M Applications with their Household of Smart HMIs and Touch Panels WINMATE's Smart HMI open design system style offers communications with a wide array of procedures to assist in promoting the deployment of controls and also machinery in Industry 4.0, IT, and IoT applications. The open platform HMI from WINMATE enables consumers to conveniently and quickly integrate a vast variety of controls and gadgets for Cloud of Things (CoT) and Industrial Net of Points (IIoT) applications which normally dictate open systems requirements. Open Platform Communications (OPC) now done well by OPC Unified Architecture (OPC UA) is an industrial M2M communication protocol for interoperability developed by the OPC Foundation. Although established by the exact same company, OPC UA varies substantially from its precursor. The OPC Information Gain access to specification is additionally referred to as OPC DA. OPC DA deals just with real-time data and focus on the constant communication of data. OPC Information Access is a group of client-server requirements that offers requirements for connecting real-time information from information purchase tools such as PLCs to display and also user interface gadgets like WINMATE's Smart Compact, Requirement, or Premium Series HMIs which are often defined and included in SCADA control systems, ERP and MES systems in plants and manufacturing facilities. Built-in Serial and Ethernet Communications Ports Enables WINMATE's Compact, Criterion, and Premium HMIs Enable Operators to Regulate Complicated Automation Equipment using TCP Protocols and also Transport Layers. The transmission Control Method (TCP) is a core protocol of the Net protocol collection. It originated in the first network application in which it enhanced the Net Method (IP). For that reason, the whole collection is generally described as TCP/IP. TCP networking gives reputable, ordered as well as error-checked delivery of a stream of octets in between industrial applications operating on hosts connecting over an IP network. Significant Web and also Industrial Automation applications such as the Net, e-mail, remote management, and also file transfer count on TCP. WINMATE's Smart Installed HMIs and Touch Panel Industrial PCs utilize TCP/IP to name a few methods to assist link and also communicate with Web, PLC, HMI, SCADA, MES as well as ERP applications. WINMATE's open system is a common feature across all their control, keeping track of services, including their Compact, Criterion, and also Costs Series HMIs. These Smart HMIs and also Touch Panel IPCs from WINMATE likewise makes sure network security and also make it possible for users to effectively utilize TCP/IP based networking, HTML5 Internet Browsers, Web-enabled HMI/SCADA/MES, Industrial Automation, Area Mobility, M2M and various other Sector 4.0 innovations and also applications. Modular, Flexible & Reliable Smart HMIs for Open System Communications Connectivity, Compatibility, and Networking. In addition to open networking adaptability supporting binary TCP Methods, and OPC UA, OPC DA, as well as OPC.NET Interfaces, and also OPC UA APIs, WINMATE provides a substantial range of sturdy, commercial computer and also HMI services for arrangements and also applications in industrial, commercial, dangerous, military and aquatic markets and applications. Offered in 7.0" - 42.0" HMI touchscreen interfaces, WINMATE's Compact, Requirement as well as Premium HMI versions use adaptable, configurable, modular, and also standard user interface for embedded computing for simple and also efficient integration for Smart markets. Winmate is proud to present 15-inch PT Series HMI Panel PC R15FA3S-PTC3, which is a 15” Intel 6th Gen. Core i3/i5 Fanless Industrial Compact Size Panel PC. Equipped to enhance industrial applications, such as streamlining production processes in smart factories. 15-inch PT Series HMI Panel PC R15FA3S-PTC3 has wide screens with multi-touch projective and resistive touch optional. Furthermore, the panel PCs come with high-brightness options for functioning optimally in indoor and outdoor settings. Likewise, in terms of I/O R15FA3S-PTC3 is multi-faceted, the panel PC attains 2 x USB 3.0, and 2 x GbE LAN. Whereas, in terms of storage space R15FA3S-PTC3 supports a 1 x 2.5″ SATA HDD bay for SATA HDD. Also, the panel PC has an expansion slot with 1 x Internal Mini-PCIe slot full size, allowing for expanded functionalities. Lastly, R15FA3S-PTC3 is a rugged design HMI that is equipped with an IP66 flat front panel with aluminum die-casting to resist dust and water. Ultimately, making it ideal for industrial settings. Key Features: v 21.5” Industrial Compact Size Panel PC v Flat Front Panel Touch Screen v Fanless Design v Intel 6th Gen. Core i3(standard) / i5(option) CPU Built-In v 1 x 260Pin SO-DIMM DDR4 up to 16GB 2133MHz v DC 9~36V Wide-Ranging Power Input v Optional Projected Capacitive Touch Screen Support 7H Anti-Scratch Surface v High Brightness 1,000 nits for Option #ESRP
