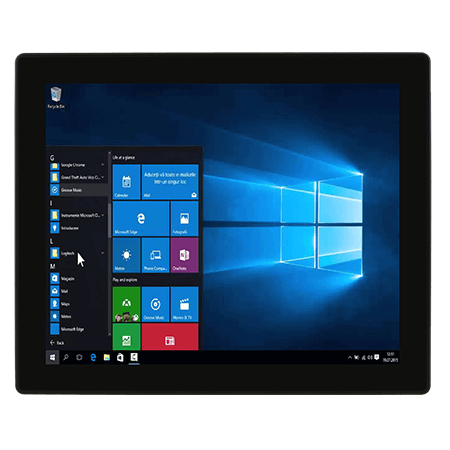

R15IBWS-MHC3 15" Intel® Atom® E3845 HMI Panel PC

KEY FEATURES

  • Projected Capacitive Multi Touch Screen
  • Fanless Design HMI Panel PC
  • Modular design for easy service in the field
  • Support wide range 12-24V DC input
  • One Quick & Easy Removable 2.5” SSD Bay Slot
  • CERTIFICATIONS
  • FCC CE

R15IBWS-MHC3New Design

15" Intel® Atom® E3845 HMI Panel PC
Overview
Specification
Winmate Lightweight ARM HMI R15IBWS-MHC3

Modular Design

The M-Series HMI is designed with flexible modularity in mind. The HMI is made of two interchangeable parts, the Box PC and the Display. By having a simple board to board a docking connector that connects these two modules, users can easily change the display size or box pc depending on their needs.


Winmate Lightweight ARM HMI R15IBWS-MHC3 with PCAP Touch

P-Cap Multi-Touch Screen (Durable & User-Friendly)

These technologies support simultaneous touch, which is very user-friendly. Withal touch screen installed behind glass cover or vandal resistant glass is resistant to scratches, damages, and cleaning fluids.


Winmate Lightweight ARM HMI R15IBWS-MHC3 with Easy Upgrade

Service-Friendly Access

Upgrade the memory, change the hard disk, or access the PCIe Module. The M-Series HMI contains an easy access service window for a versatile and cost-effective solution for always changing industrial needs.


Winmate Lightweight ARM HMI R15IBWS-MHC3 with Front IP65

Front IP65 (Outer Dust and Water Splash Resistant)

Winmate M-Series HMI support IP65 sealing on the front side. Devices are protected from possible damages caused by direct snow, rain, dust, dirt, and grime. This feature makes it suitable for outdoor kiosks applications.


Winmate Lightweight ARM HMI R15IBWS-MHC3 with True Flat and Easy Clean

True Flat (Easy-to-clean)

Winmate M-Series HMI‘s true flat surface is more than just a stylish and elegant appearance. It is easy to maintain and clean. No more clogged dust on edges.

Display

Size

15.0 inches

Touch / Glass

Projected Capacitive Multi Touch Screen

Resolution

1024x768

Panel Brightness

300.0 nits

Contrast Ratio

2000:1

View Angles

88,88,88,88

Active Area

304.1x228.1 mm

System Specification

Processor

Intel Atom E3845 1.91GHz

Memory

2 x SO-DIMM, DDR3L 1600 MHz, 4GB 8GB (Optional)

Storage

1 x mSATA 128GB 1 x 2.5" 128GB SSD up to 512GB (Optional)

Ethernet controller

2 x Intel® Ethernet Controller

Security

TPM 1.2

Operating System

Windows 7 Embedded Systems (Optional) Windows 10 IoT Enterprise (64 bit) (Optional)

WLAN

Support (Optional)

BT

Support (Optional)

Expansion Port

Modular Design for easy service in the field

Mechanical

Dimension

367 x 291 x 78 mm

Cut out

342 x 261 mm

Weight

6.5 kg

Mounting

Panel mount VESA Mount

Enclosure

Metal Housing

Cooling System

Fanless design

Environment

Operating Humidity

10% to 90% RH, Non-Condensing

Operating Temperature

0°C to 50°C

Storage Temperature

-10°C to 60°C

IP rating

Front IP65

Certification

Certification

CE, FCC

IO Ports

USB Port

4 x USB2.0 (Type-A)

Serial Port

1 x RS232/422/485 (Default RS232)

LAN

2 x Giga LAN RJ45 Connector

Video

1 x HDMI 1.4 (Optional) 1 x VGA (Optional)

Audio

Line in Line out

Expansion Port

1 x mPCIe slot(for half size Wifi module) Swappable 2.5” HDD/SSD Bay Slot

Indicator

1 x LED Indicator for storage

mini PCIe

1 x Mini PCIE(For WLAN)

Power Input

1 x 12~24V DC, 3-Pin Terminal Block

Control

Button

1 x Power Button with LED Indicator 1 x Reset Button

Accessory

Accessory

100~240V AC to DC Adapter Power Cord Open Wire Cable with terminal block connector Mounting clips VESA screws

Power

Power Rating

12V~24V DC with protection fuse

Adapter

12V 84W

Consumption

30W~40W
