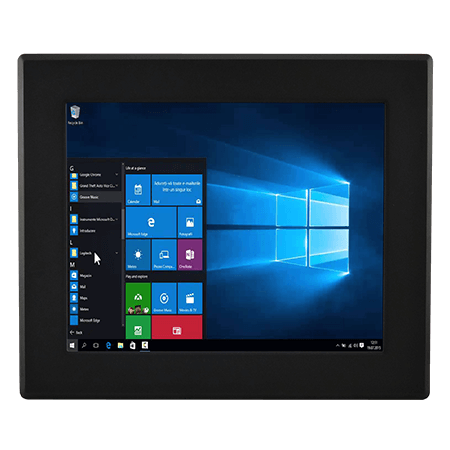

R15IF7T-IPC315" Intel® Core™ i3/i5/i7 (Coffee Lake Refresh) Front IP65 Panel PC
- 15” 1024 x 768 Resolution
- Intel® 9th Gen. Core™ i3/i5/i7 Processor (Coffee Lake Refresh)
- Flexible storage devices, one 2.5-inch HDD and one SSD socket
- Multiple I/Os, 2 x Serial Ports, 4 x USB 3.2 Gen. 1 Ports
- 12 V DC Power input
- DP Support 4096 x 2304 @ 60 Hz
- HDMI Support 4096 x 2304 @ 24 Hz
15" Intel® Core™ i3/i5/i7 (Coffee Lake Refresh) Front IP65 Panel PC
Waterproof Front IP65 Design
Winmate's Front IP65 Series Panel PC built for wet and dusty applications; it is rated to IP65 and supports water and dust resistance while keeping a compact and narrow bezel design, suitable for use in wet and dusty environments such as factory automation, outdoor kiosks, swimming pool and SPA kiosk, and others.
Intuitive Operations with the Touchscreen
For the convenience of the operators working in the industrial environment, the Front IP65 Panel PC Series offers flexible surface options such as cover glass (when touch is not required) and a resistive touch screen to meet different specifications.
HDMI, VGA Signal Interfaces
For easy integration to all embedded boards and systems, the Front IP65 Series Panel PC comes with VGA, HDMI signal interfaces. Both interfaces are easy to use and support most of the industrial and commercial applications.
The Front IP65 Series Panel PC has a unique rubber (O-ring) on the rear of the front bezel. This design allows sealing the front bezel and the customer's fixture to prevent water and dust from entering the enclosure. Moreover, the panel pc is easy to install inside a cabinet or a rack for various applications.
Suitable for Outdoor Kiosk Applications
When embedded in an enclosure, the Front IP65 Series Panel PC is suitable for use in wet and dusty industrial environments. When installed correctly, the panel pc rated IP65 from the front side withstands rigors of outdoors - water, humidity, cold, heat, sunlight, airborne particles – making it suitable for outdoor kiosks in parking, gas stations, swimming pools, and other locations.
Touch / Glass
Resistive Touch Screen Protection Glass w/o Touch Function (Optional)
Intel® Core™ i7-9700TE (12M Cache, up to 3.80 GHz) Intel® Core™ i5-9500TE (9M Cache, up to 3.60 GHz) Intel® Core™ i3-9100TE (6M Cache, up to 3.20 GHz)
1 x SO-DIMM, DDR4 2400 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) 2 x SO-DIMM, up to 64GB (Optional)
1 x M.2 2242 B-key SSD 64GB M.2 2242 B-key SSD up to 512GB (Optional) M.2 2280 M-Key NVME SSD, up to 4TB (Optional) 2 x SATA III support RAID 0,1 (Optional)
Intel® Ethernet Controller I211-AT + Intel® Ethernet Connection I219-LM
Windows 10 IoT Enterprise (Optional) Linux Ubuntu 18.04 (Optional) Linux Ubuntu 20.04 (Optional)
400 x 320 x 70 mm
Panel mount VESA Mount
10% to 90% (non-condensing)
4 x USB3.0 (Type-A)
1 x RS232/422/485 (Default RS232) 1 x RS232
2 x Giga LAN RJ45 Connector
1 x DP1.2 1 x HDMI 1.4 (Optional)
1 x Mic in 1 x Line out 2 x Speaker
2 x M.2 slot(1 for WiFi, 1 for SSD) 1 x PCIex 16 (Optional)
1 x LED Indicator for power 1 x LED Indicator for storage
1 x Brightness Adjustment Knob
1 x 12V DC, Din4 pin connector
1 x Power Button 1 x Reset Button
100~240V AC to DC Adapter Power Cord VESA screws Manual Mounting clips
12V DC (Lockable Power Jack)
