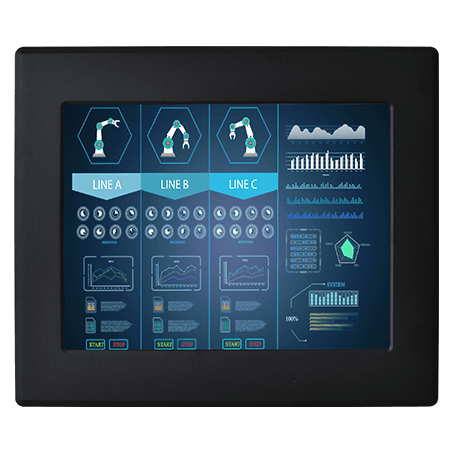

R15L100-IPA1 15" Front IP65 Display
- 15", 1024 x 768
- VGA and HDMI input
- Panel mount
- VESA mount
- Front IP65 waterproof and dustproof
15" Front IP65 Display
Waterproof Front IP65 Design
Winmate's Front IP65 Series Display built for wet and dusty applications; it is rated to IP65 and supports water and dust resistance while keeping a compact and narrow bezel design, suitable for use in wet and dusty environments such as factory automation, outdoor kiosks, swimming pool and SPA kiosk, and others.
Intuitive Operations with the Touchscreen
For the convenience of the operators working in the industrial environment, the Front IP65 Display Series offers flexible surface options such as cover glass (when touch is not required) and resistive touch screen to meet different specifications.
HDMI, VGA Signal Interfaces
For easy integration to all embedded boards and systems, the Front IP65 Series Display comes with VGA, HDMI signal interfaces. Both interfaces are easy to use and support most of the industrial and commercial applications.
The Front IP65 Series Display has a unique rubber (O-ring) on the front bezel's rear. This design allows sealing the front bezel and the customer's fixture to prevent water and dust from entering the enclosure. Moreover, the display is easy to install inside a cabinet or a rack for various applications.
Suitable for Outdoor Kiosk Applications
When embedded in an enclosure, the Front IP65 Series Display is suitable for use in wet and dusty industrial environments. When installed correctly, the display rated IP65 from the front side withstands rigors of outdoors - water, humidity, cold, heat, sunlight, airborne particles – making it suitable for outdoor kiosks in parking, gas stations, swimming pools, and other locations.
Touch / Glass
Resistive Touch Screen Protection Glass w/o Touch Function (Optional) SAW Touch (Surface Acoustic Wave) (Optional)
10% to 90% (non-condensing)
1 x USB for Touch Screen
1 x VGA 1 x HDMI (Optional) 1 x DVI (Optional)
Audio line in (3.5mm) (Optional) 2 x Speaker (Optional)
400 x 320 x 56.8 mm
360 x 280mm
VESA Mount/ Panel Mount
Metal Housing with Aluminum Bezel
1 x VGA cable 1 x HDMI cable 100~240V AC to DC Adapter Power Cord Manual VESA screws(Varies by product)
Remote Controller (Optional,Varies by product)
12V DC input
5 Keys: - , + , Power , Esc , Enter
