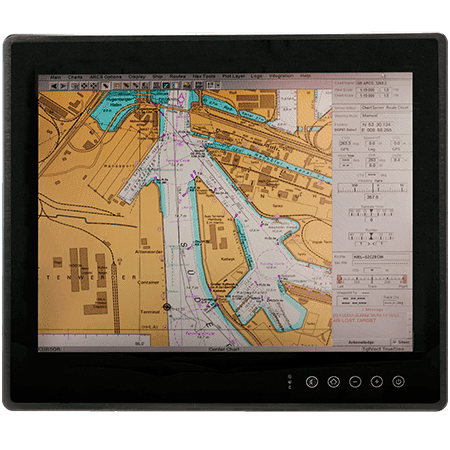

R15L600-MRA3FP

15" ECDIS Marine Display

R15L600-MRA3FP

15" ECDIS Marine Display
  • KEY FEATURES
  • 15” 1024 x 768 resolution with projective capacitive multi-touch screen
  • Edge-to-edge narrow bezel design and fanless cooling system
  • Color calibrated for ECDIS compliance (Optional)
  • Capacitive touch keys for quick function access and display control (Support DAY, DUSK, and NIGHT mode switching)
  • Meet the requirements of industrial marine standards, including IEC60945 4th Edition,DNVGL-CG-0339, IACS E10
  • CERTIFICATIONS
  • IACS-E10 IEC60945 DNVGL-CG-0339 FCC CE
Overview
Specification
Accessories
Reliable Computing Certified for Marine Applications

Reliable Computing Certified for Marine Applications

Winmate ECDIS Marine Displays are built and tested according to DNV 2.4 Standard, IEC60945, and IACS-E10 to meet the marine industry's international regulatory requirements. Winmate performs in-house reliability test to ensure optimal performance in harsh maritime environments.


ECDIS Reliability for the Real Marine Colors Representation

ECDIS Reliability for the Real Marine Colors Representation

On Winmate ECDIS Marine Displays, users can adjust to a day, dusk, or night mode through the capacitive touch key to accommodate any lighting situation. Winmate calibrates color settings at the factory for accurate color reproduction according to the IEC 61174 ECDIS Standard.


Sleek Design for Modern Bridge Workstations

Sleek Design for Modern Bridge Workstations

Easy to maintain and clean. The glass cover lens provides excellent protection from scratch and reduces the gap for a possible accumulation of dust and liquid. The true-flat surface also gives a slim and elegant appearance to the device goes beyond that of the standard industrial, marine computers with a sleek and edge-to-edge design, rugged construction, powerful performance, and flexible mounting options.


Ultimate Touch Experience

Ultimate Touch Experience

Enhance customer experience with PCAP touch that supports multi-touch and can easily be controlled by fingers. Enjoy every touch and convenience when using the ECDIS Marine Displays, and experience the ultimate durability in some of the most demanding applications, such as bridge navigation and control.


Video-Input Options

Video-Input Options

Video input consists of DVI-D, HDMI, and VGA connectors. Use the RS232 port for remote control and a USB connector for touch.

Display

Size

15.0 inches

Optional Function

Option: AR Glass

Touch / Glass

Projected Capacitive Multi Touch Screen Protection Glass (Optional)

Resolution

1024x768

Panel Brightness

500 nits

Contrast Ratio

2500:1

View Angles

88,88,88,88

Display Color

16.7M Colors

Environment

Operating Humidity

5% to 95%

Operating Temperature

-15~55°C

Shock

15G,11ms duration

Vibration

0.7g@DNVGL CG-0339 (Class A)

IP rating

IP66 (Front Side)

Certification

Certification

DNVGL-CG-0339, IEC60945 4th, IACS E10, CE, FCC

IO Ports

USB Port

1 x USB Type A

Serial Port

1 x RS232 for remote control

Video

1 x VGA 1 x DVI-D 1 x HDMI 1.4

Front Control

Power Brightness+ Brightness- OSD/ Enter ECDIS Key/ ESC

Indicator

Day Mode Dusk Mode Night Mode

Mechanical

Dimension

363 x 282.91 x 67.5 mm

Mounting

VESA Mount/ Panel Mount

Enclosure

Anodized Aluminum Bezel

Cooling System

Fanless Design

Power

Power Rating

24V DC-in with Isolation (Approval by Certificate) 9~36V DC Input Accpetable

Accessory

Accessory

User Manual Quick Start Guide (Hardcopy) M4 x 12 Black Screw Bolts AC to DC Adapter Power Cord 3 Pin Terminal Block 1 x VGA cable 1 x DVI cable 1 x HDMI cable 1 x RS232 cable

Optional Accessory

1 x USB cable

OPTIONAL ACCESSORIES

Marine Mounting Kit

Marine Mounting Kit

Model Name: MMK-15P

Part Number: 99KK00A0000K
