R17ID3S-MRM1 17" Intel Atom® N2600 Marine Panel PC

KEY FEATURES

  • Intel Atom® N2600 dual-core processor Marine Panel PC
  • Dimming knob control backlight brightness from nearly 0% to 100%
  • Transflective film technology enhances visibility
  • Panel (flush) mount IP66 aluminum housing with powder coating design (IP54 rear)
  • 9~36V DC power input acceptable
  • CERTIFICATIONS
  • IACS-E10 IEC60945 DNVGL-CG-0339 FCC CE

R17ID3S-MRM1

17" Intel Atom® N2600 Marine Panel PC
Overview
Specification
Accessories
Winmate 17-inch Marine Panel PC with DNVGL-CG-0339 Standard, IEC60945, and IACS-E10 marine certified

Reliable Computing Certified for Marine Applications

Winmate Marine Panel PCs are built and tested according to DNVGL-CG-0339 Standard, IEC60945, and IACS-E10 to meet the international regulatory requirements of the marine industry. Standard, IEC60945, and IACS-E10. Winmate performs in-house reliability test to ensure optimal performance in harsh maritime environments.


Winmate 17-inch Marine Panel PC with Dimming Knob

Safe Sailing at Bright Sun, Dusk, and Night

To face the challenges of sailing in different conditions, Winmate Marine Panel PCs suitable for day, dusk, and night settings. Our devices feature hyper dimming technology that can control backlight brightness linearly from nearly 0% to 100% by a dimming knob. At the same time, add an optional transflective film to enhance the visibility in an outdoor and bright ambiance environment.


Sleek Design for Winmate 17-inch Marine Panel PC

Convenient Front Panel OSD Control and Dimming Knob

All the controls are located on the front panel OSD for fast access anytime. Dimming knob allows controlling backlight brightness from nearly 0% to 100%, designed for marine industry applications.

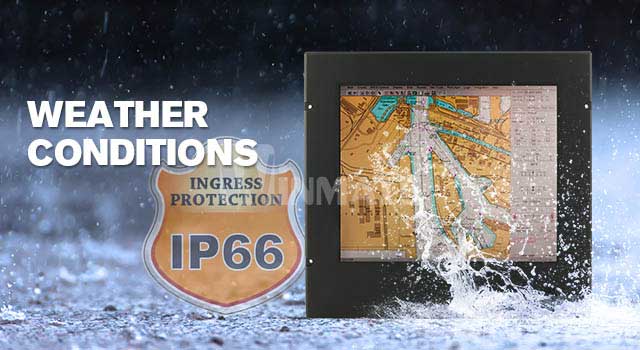

Weather Conditions  for Winmate 17-inch Marine Panel PC

Survives All Weather Conditions

The rugged mechanical design of the Winmate Marine Panel PCs provides enhanced shock and vibration resistance. Also, the high power efficiency and low heat design guarantee the stability and longevity required for mission-critical deployment. Deploy Winmate Winmate Marine Panel PCs for your safe operations at sea in all weather conditions.


Winmate 17-inch Marine Panel PC with Peripheral Connectivity

Peripheral Connectivity

Marine Panel PC feature-rich I/O connectivity that consists of two USB 2.0, three COM ports, VGA, LAN, and compact flash socket for an extension. Easy to integrate into existing marine equipment.

Display

Size

17.0 inches

Touch / Glass

Resistive Touch Screen AR Glass (Optional)

Resolution

1280x1024

Panel Brightness

350.0 nits

Contrast Ratio

1000:1

View Angles

85,85,80,80

Active Area

337.920x270.336 mm

System Specification

Processor

Intel Atom N2600 1.6GHz

Chipset

Intel® NM10

Memory

1 x SO-DIMM, DDR3L 1600 MHz, 4GB

Storage

1 x mSATA SSD 128GB mSATA SSD up to 512GB (Optional)

Ethernet controller

BCM57780A1KMLG

Operating System

Windows 7 Embedded Systems (Optional)

Environment

Operating Humidity

5% to 95%

Operating Temperature

-15~55°C

Shock

15G,11ms duration

Vibration

0.7g@DNVGL CG-0339 (Class A)

IP rating

IP66 (Front Side)

Certification

Certification

CE, FCC DNVGL-CG-0339, IEC60945 4th, IACS E10

IO Ports

USB Port

2 x USB2.0

Serial Port

1 x RS232/422/485 2 x RS232 or 2 x Isolation RS422/485

LAN

2 x RJ45-10/100/1000 Mbps

Video

1 x VGA

Mechanical

Dimension

337.5 x 272 x 77.2 mm

Cut out

405 x 356 mm

Weight

8 kg

Mounting

VESA mount Panel mount (Optional)

Enclosure

Metal Housing with Aluminum Bezel

Cooling System

Fanless Design

Accessory

Accessory

Driver CD & User Manual 4 x M6 Black Screw Bolt with M6 Nut 1 x AC Adapter12V/ 84W 1 x Power Cord

Power

Power Rating

24V DC-in with Isolation (Approval by Certificate) 9~36V DC Input Acceptable

Consumption

50W (Typical)

Control

Button

1 x Power Button 1 x Reset Button 1 x The Dimming Knob

OPTIONAL ACCESSORIES

Marine Mounting Kit

Marine Mounting Kit

Model Name: MMK-17

Part Number: 99KK17000010
