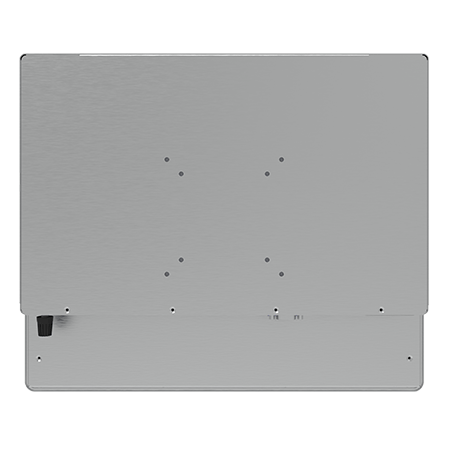

R17IT7T-PPM117” Intel® Core™ i5 (Tiger Lake) PP Series HMI Panel PC

KEY FEATURES

  • Intel® Core™ Tiger Lake UP3 i5-1135G7(Without vPro)/ Intel® Core™ Tiger Lake UP3 i5-1145G7E(With vPro)
  • 1280 x 1024 Resolution
  • Projected capacitive multi-touch screen
  • Multi display supports DP / HDMI / LVDS / eDP panel interface
  • Multiple I/Os, 2 x Serial Ports, 4 x USB 3.2 Gen. 1 Ports
  • Front IP65 water and dust proof
  • Aluminum housing and Fan design
  • 12V Single Voltage Power Input
  • CERTIFICATIONS
  • FCC CE

R17IT7T-PPM1

17” Intel® Core™ i5 (Tiger Lake) PP Series HMI Panel PC
Overview
Specification
Real Flat Surface and Slim Design

Real Flat Surface and Slim Design

The PP Series HMI panel PCs feature an elegant, slim design and true-flat design that works perfectly within industrial applications that satisfy the growing demand for control devices with a flat design. With a truly flat surface, PP Series HMI panel PCs are easy to maintain and clean, leaving no more clogged dust on the edges.


Convenient Onscreen Operations with PCAP Multi-Touch

Convenient Onscreen Operations with PCAP Multi-Touch

The PP Series HMI panel PCs offer an ultimate touch experience with a projected capacitive (PCAP) multitouch screen. This technology allows enjoying every touch and improving the convenience of using the device. Thus it helps to enhance the overall customer experience. Enjoy every touch!


Front IP65 Water and Dust Proof

Front IP65 Water and Dust Proof

The IP65 rating is utterly impervious to dust and protected against the splash of waters. The PP Series HMI panel PCs deliver outstanding processing, graphical, and media performance while operating in challenging conditions.


Rich I/O Interface for IoT Connectivity

Rich I/O Interface for IoT Connectivity

The PP Series HMI panel PCs feature high performance and a rich I/O interface for innovative industrial IoT solutions, including serial ports, USB ports, LAN, video, and audio ports. Connectivity options, high performance, and installation-friendly design deliver excellent performance for vertical applications.


Suitable for Industrial Automation

Suitable for Industrial Automation

Robust aluminum die-cast housing offers corrosion resistance and durability, making the PP Series HMI panel PCs suitable for a wide range of application possibilities in industrial and factory applications with challenging environments.

Display

Size

17 inches

Touch / Glass

Projected Capacitive Multi Touch Screen

Resolution

1280x1024

Panel Brightness

350 nits

Contrast Ratio

1000:1

View Angles

85,85,80,80

Active Area

337.920x270.336 mm

System Specification

Processor

Intel® Core™ i5-1135G7 (8M Cache, up to 4.20 GHz, Without vPro) Intel® Core™ i5-1145G7 (8M Cache, up to 4.40 GHz, With vPro) (Optional)

Memory

1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) 2 x SO-DIMM, DDR4 3200 MHz, 4GB (Optional) 8GB (Optional) 16GB (Optional) 32GB (Optional) 64GB (Optional)

Storage

1 x M.2 M-Key 2242 SATA SSD or 1 x M.2 M-Key 2280 NVMe SSD 128GB 256GB (Optional) 512GB (Optional) 1TB(for NVMe) (Optional) 2TB(for NVMe) (Optional) 4TB(for NVMe) (Optional) 1 x SATA III , up to 2TB (Optional)

Ethernet controller

2 x Intel® Ethernet Controller

Security

TPM 2.0

Operating System

Windows 11 IoT Enterprise (Optional) Windows 10 IoT Enterprise (Optional) Linux Ubuntu 22.04 (Optional)

Mechanical

Dimension

437.9 x 372.7 x 71 mm

Cut out

395x325mm

Mounting

Panel mount VESA Mount

Enclosure

Metal Housing

Cooling System

Fan design

Environment

Operating Humidity

10% to 90% (non-condensing)

Operating Temperature

0~50°C

Storage Temperature

-20~60°C

IP rating

Front IP65

Certification

Certification

CE, FCC

IO Ports

USB Port

4 x USB3.2 Gen1x1 (Type-A)

Serial Port

1 x RS232/422/485 (Default RS232) 1 x RS232

LAN

2 x Giga LAN RJ45 Connector

Video

1 x DP1.4 1 x HDMI 1.4 (Optional)

Audio

Mic in Line out

Expansion Port

1 x M.2 2242/2280 Key M slot for SATA/NVMe SSD 1 x M.2 2230 Key E slot for WiFi (Optional)

Indicator

1 x LED Indicator for power 1 x LED Indicator for storage

Brightness Knob

1 x Brightness Adjustment Knob

Power Input

1 x 12V DC, Din4 pin connector

Control

Button

1 x Power Button 1 x Reset Button

Accessory

Accessory

100~240V AC to DC Adapter Power Cord Driver CD & Manual VESA screws Mounting clips

Power

Power Rating

12V DC

Adapter

12V 50W
