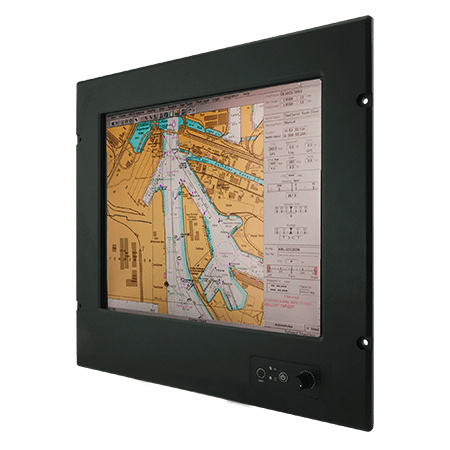

R17IV3S-MRM1 17" Intel® Core™ i7-3517UE Marine Panel PC
- Intel® Core™ i7-3517UE processor Marine Panel PC
- Dimming knob control backlight brightness from nearly 0% to 100%
- Transflective film technology enhances visibility
- Panel (flush) mount IP66 aluminum housing with powder coating design (IP54 rear)
- 9~36V DC power input acceptable
17" Intel® Core™ i7-3517UE Marine Panel PC
Reliable Computing Certified for Marine Applications
Winmate Marine Panel PCs are built and tested according to DNVGL-CG-0339 Standard, IEC60945, and IACS-E10 to meet the international regulatory requirements of the marine industry. Standard, IEC60945, and IACS-E10. Winmate performs in-house reliability test to ensure optimal performance in harsh maritime environments.
Safe Sailing at Bright Sun, Dusk, and Night
To face the challenges of sailing in different conditions, Winmate Marine Panel PCs suitable for day, dusk, and night settings. Our devices feature hyper dimming technology that can control backlight brightness linearly from nearly 0% to 100% by a dimming knob. At the same time, add an optional transflective film to enhance the visibility in an outdoor and bright ambiance environment.
Convenient Front Panel OSD Control and Dimming Knob
All the controls are located on the front panel OSD for fast access anytime. Dimming knob allows controlling backlight brightness from nearly 0% to 100%, designed for marine industry applications.
Survives All Weather Conditions
The rugged mechanical design of the Winmate Marine Panel PCs provides enhanced shock and vibration resistance. Also, the high power efficiency and low heat design guarantee the stability and longevity required for mission-critical deployment. Deploy Winmate Winmate Marine Panel PCs for your safe operations at sea in all weather conditions.

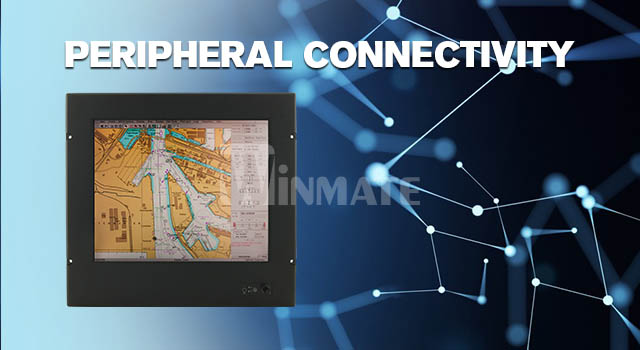

Marine Panel PC feature-rich I/O connectivity that consists of two USB 2.0, three COM ports, VGA, LAN, and compact flash socket for an extension. Easy to integrate into existing marine equipment.
Touch / Glass
Resistive Touch Screen AR Glass (Optional)
Intel Core i7-3517UE 1.7GHz (up to 2.8GHz)
1 x SO-DIMM, DDR3L 1600 MHz, 4GB 8GB (Optional)
1 x mSATA SSD 128GB mSATA SSD up to 512GB (Optional)
Intel® 82574L Gigabit Ethernet Controller + Intel® 82579LM Gigabit Ethernet PHY
Windows 7 Embedded Systems (Optional) Windows 10 IoT Enterprise (Optional) Linux Ubuntu 18.04 (Optional)
5% to 95%
0.7g@DNVGL CG-0339 (Class A)
IP66 (Front Side)
2 x USB 3.0
1 x RS232, 1 x RS232/422/485 2 x RS232 or 2 x Isolation RS422/485 (Optional)
2 x RJ45-10/100/1000 Mbps
1 x VGA 1 x HDMI (Optional)
337.5 x 272 x 77.2 mm
405 x 356 mm
VESA Mount/ Panel Mount
Metal Housing with Aluminum Bezel
Driver CD & User Manual 4 x M6 Black Screw Bolt with M6 Nut
24V DC-in with Isolation (Approval by Certificate) 9~36V DC Input Acceptable
1 x Power Button 1 x Reset Button 1 x The Dimming Knob
Marine Mounting Kit
Model Name: MMK-17
Part Number: 99KK17000010
