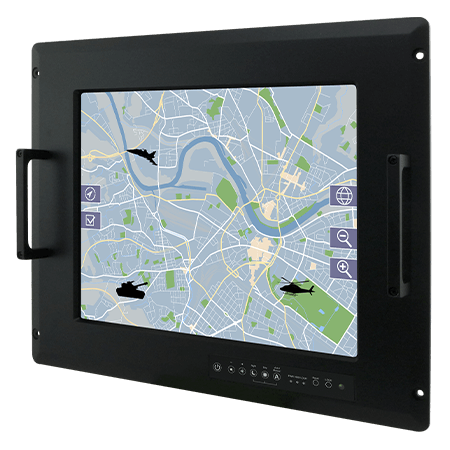

R17IW3S-MLA1FP17" Intel® Core™ i5-8265U Defence Console Rack Panel PC
- Intel® Core™ i5-8265U 1.6GHz Processor
- Anti-Corrosion Housing / Fanless
- Projective Touch
- Compliant with MIL-STD-810G/F , MIL-STD-461E/F
- Flush Rack / Rack Mount Mechanical Design (8U)
- Convenient On-Screen Display Controls
- AC 110~240 V Power input default
- Isolation DC 9~36 V Power input (Optional)
- Built-in Light Sensor for auto brightness control
17" Intel® Core™ i5-8265U Defence Console Rack Panel PC
Reliable Computing Tailored for Defence Applications
To meet the defence and defense regulatory requirements, all Winmate's Defence Console Rack Panel PCs are built and tested according to MIL-STD-810G environmental and MIL-STD 461F EMC standard. Selected models support the NVIS MIL-STD-3009 night vision. Winmate performs in-house reliability test to ensure optimal performance in harsh defence environments.
Command Center Focused Design
Increase the efficiency of the command center and control room personnel. Built your ergonomic command console that complies with defence and defense precise needs with Defence Console Rack Panel PCs that feature rack mount mechanical design (8U).
Defence – Grade Connectors for Compatibility with Existing Defence Systems
The Defence Console Rack Panel PCs come with a MIL-DTL-38999 type I power input connector. For selected models, MIL-DTL-38999 type III input/ output connectors – high-performance cylindrical connector for cable-to-panel applications in the defence, air traffic control, or other mission-critical situations. Compatible with existing defence systems.
Ultimate Touch Experience and Convenient On-Screen User Controls
The Defence Console Rack Panel PCs feature a user-friendly touchscreen and physical OSD buttons for fast access to the central control located on the front panel.
Auto Brightness Control with Built-in Light Sensor
The Defence Console Rack Panel PCs feature a built-in light sensor for auto-brightness control. The screen brightness effortlessly changes with the lighting conditions throughout the day.
Touch / Glass
Projected Capacitive Multi Touch Screen PCAP with With ITO Flim (Optional)
Intel® Core™ i5 -8265U (6M Cache, 1.6GHz up to 3.9 GHz)
1 x SO-DIMM, DDR4 2400 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional)
1 x M.2 2242 B-key SSD 64GB up to 512GB (Optional)
Intel® Ethernet Controller I210-AT + Intel® Ethernet Connection I219-LM
Windows 10 IoT Enterprise (Optional)
10% to 95% RH
RE101 / RE102 CE101 / CE102 with EMI Glass / Touch(Optional) RS101 / RS 103 CS101 / CS 106 / CS 109 / CS 114 / CS 115 / CS 116
Vibartion Method 514.5 Humidity Method 507.4 Transit Drop Method516.5
1 x Manual(Hardcopy) 1 x Driver CD 1 x Power Cord (MIL-DTL-38999/1)
482.6 x 399.3 x 79.6 mm
Rack Mount/ VESA Mount
Metal Housing with Aluminum Bezel
2 x USB 3.2 Gen 1
1 x RS232/422/485 (Default RS232)
2 x RJ-45
1 x HDMI (Optional)
AC 100~240V, Universal, ±10% DC 9~36V, ±10% (Optional)
8 Key OSD Control Pad: Power, Brightness DOWN, Brightness UP, Night, Day, Auto / Manual, Reset, Lock
