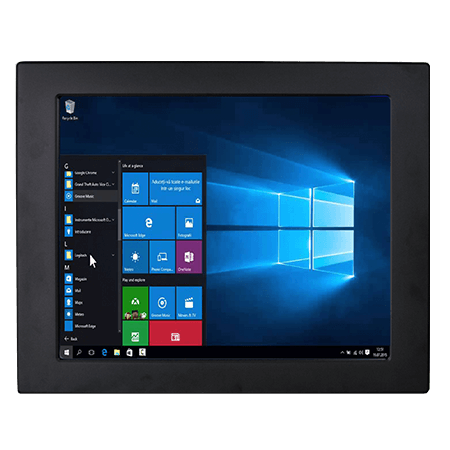

R19IP7T-IPA2WT 19" Intel® Pentium® N4200 Front IP65 Wide Temperature Panel PC
- Intel® Pentium® N4200 Apollo Lake Processor 1.10 GHz
- Flexible storage devices, one 2.5-inch HDD and one SSD socket
- Multiple I/Os, 2 x Serial Ports, 4 x USB 3.0 Ports
- 12 V DC Power input
- DP Support 4096 x 2160 @ 60 Hz
- HDMI Support 3840 x 2160 @ 30 Hz
Waterproof Front IP65 Design
Winmate's Front IP65 Series Panel PC built for wet and dusty applications; it is rated to IP65 and supports water and dust resistance while keeping a compact and narrow bezel design, suitable for use in wet and dusty environments such as factory automation, outdoor kiosks, swimming pool and SPA kiosk, and others.
Intuitive Operations with the Touchscreen
For the convenience of the operators working in the industrial environment, the Front IP65 Panel PC Series offers flexible surface options such as cover glass (when touch is not required) and a resistive touch screen to meet different specifications.
HDMI, VGA Signal Interfaces
For easy integration to all embedded boards and systems, the Front IP65 Series Panel PC comes with VGA, HDMI signal interfaces. Both interfaces are easy to use and support most of the industrial and commercial applications.
The Front IP65 Series Panel PC has a unique rubber (O-ring) on the rear of the front bezel. This design allows sealing the front bezel and the customer's fixture to prevent water and dust from entering the enclosure. Moreover, the panel pc is easy to install inside a cabinet or a rack for various applications.
Suitable for Outdoor Kiosk Applications
When embedded in an enclosure, the Front IP65 Series Panel PC is suitable for use in wet and dusty industrial environments. When installed correctly, the panel pc rated IP65 from the front side withstands rigors of outdoors - water, humidity, cold, heat, sunlight, airborne particles – making it suitable for outdoor kiosks in parking, gas stations, swimming pools, and other locations.
Touch / Glass
Resistive Touch Screen (Optional) Protection Glass w/o Touch Function (Optional)
Intel Pentium N4200 1.1GHz (up to 2.5GHz)
2 x SODIMM, DDR3L 1866 MHz, 4GB 8GB (Optional)
1 x M.2 2242 SSD 128GB M.2 2242 SSD up to 512GB (Optional)
2 x Intel® Ethernet Controller
Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional)
474 x 384 x 78 mm
431 x 341mm
Panel mount VESA Mount
30% to 90% RH, Non-Condensing
-20°C to 60°C
-30°C to 70°C
4 x USB3.2 Gen1x1 (Type-A)
1 x RS232/422/485 (Default RS232) 1 x RS232
2 x Giga LAN RJ45 Connector
1 x DP1.2 1 x HDMI 1.4 (Optional) 1 x VGA (Optional)
1 x Mic in 1 x Line out 2 x Speaker
2 x M.2 slot(1 for WiFi, 1 for SSD) 1 x PCIe 2.0 x1 (Optional)
1 x LED Indicator for power 1 x LED Indicator for storage
1 x Brightness Adjustment Knob
1 x 12V DC, Din4 pin connector
1 x Power Button 1 x Reset Button
100~240V AC to DC Adapter Power Cord VESA screws Mounting clips
