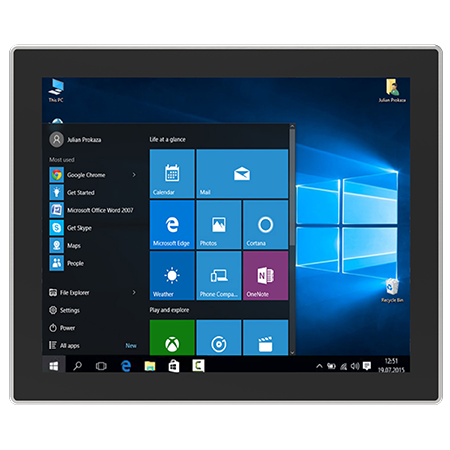

R19IW3S-PPM1 19" Intel® Core™ i5-8265U PP Series HMI Panel PC

Discontinued (EOL)

The R19IW3S-PPM1 has been phased out and replaced by the R19IT3S-PPM1 . For more information, please get in touch with us.

KEY FEATURES

  • 19", 1280 x 1024 resolution with PCAP touchscreen
  • Intel® 8th Generation Core™ i5-8265U, 1.6 GHz (turbo to 3.9GHz)
  • Fanless cooling system and ultra-low power
  • Front IP65 Water and Dust Proof
  • Aluminum housing and fanless design
  • Room booking schedule, Access Control, Room Information Display
  • CERTIFICATIONS
  • FCC CE

R19IW3S-PPM1New Design

19" Intel® Core™ i5-8265U PP Series HMI Panel PC
Overview
Specification
Winmate Panel Mount Whiskey Lake HMI R19IW3S-PPM1 with True Flat and Slim Design

Real Flat Surface and Slim Design

The PP Series HMI panel PCs feature an elegant, slim design and true-flat design that works perfectly within industrial applications that satisfy the growing demand for control devices with a flat design. With a truly flat surface, PP Series HMI panel PCs are easy to maintain and clean, leaving no more clogged dust on the edges.


Winmate Panel Mount Whiskey Lake HMI R19IW3S-PPM1 with PCAP Touch

Convenient Onscreen Operations with PCAP Multi-Touch

The PP Series HMI panel PCs offer an ultimate touch experience with a projected capacitive (PCAP) multitouch screen. This technology allows enjoying every touch and improving the convenience of using the device. Thus it helps to enhance the overall customer experience. Enjoy every touch!


Winmate Panel Mount Whiskey Lake HMI R19IW3S-PPM1 with Front IP65

Front IP65 Water and Dust Proof

The IP65 rating is utterly impervious to dust and protected against the splash of waters. The PP Series HMI panel PCs deliver outstanding processing, graphical, and media performance while operating in challenging conditions.


Winmate Panel Mount Whiskey Lake HMI R19IW3S-PPM1 with Rich I/O Ports

Rich I/O Interface for IoT Connectivity

The PP Series HMI panel PCs feature high performance and a rich I/O interface for innovative industrial IoT solutions, including serial ports, USB ports, LAN, video, and audio ports. Connectivity options, high performance, and installation-friendly design deliver excellent performance for vertical applications.


Winmate Panel Mount Whiskey Lake HMI R19IW3S-PPM1 with Application-focused

Suitable for Industrial Automation

Robust aluminum die-cast housing offers corrosion resistance and durability, making the PP Series HMI panel PCs suitable for a wide range of application possibilities in industrial and factory applications with challenging environments.

Display

Size

19.0 inches

Touch / Glass

Projected Capacitive Multi Touch Screen

Resolution

1280x1024

Panel Brightness

250.0 nits

Contrast Ratio

1000:1

View Angles

85,85,80,80

Active Area

376.32x301.06 mm

System Specification

Processor

Intel Core i5 -8265U 1.6GHz (up to 3.9GHz)

Memory

1 x SO-DIMM, DDR4 2400 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional)

Storage

1 x M.2 2242 B-key SSD 128GB 256GB (Optional) 512GB (Optional) 1 x M.2 2280 M-Key NVME SSD 128GB (Optional) 256GB (Optional) 512GB (Optional) 1TB (Optional) 2TB (Optional)

Ethernet controller

2 x Intel® Ethernet Controller

Security

TPM 2.0

Operating System

Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional)

WLAN

Support (Optional)

BT

Support (Optional)

Mechanical

Dimension

446 x 370 x 77 mm

Cut out

431 x 333 mm

Weight

7.0 kg

Mounting

Panel mount VESA Mount

Enclosure

Metal Housing

Cooling System

Fanless design

Environment

Operating Humidity

10% to 90% RH, Non-Condensing

Operating Temperature

0°C to 50°C

Storage Temperature

-10°C to 60°C

IP rating

Front IP65

Certification

Certification

CE, FCC

IO Ports

USB Port

2 x USB3.2 Gen1x1 (Type-A)

Serial Port

1 x RS232/422/485 (Default RS232) 1 x RS232

LAN

2 x Giga LAN RJ45 Connector

Video

1 x HDMI 1.4 (Optional)

Audio

2 x Speaker

Expansion Port

1 x M.2 2280/2242 M-Key Slot (for NVME SSD or SATA III SSD) 1 x M.2 2230 E-KeySlot (for Wi-Fi Module)

Indicator

1 x LED Indicator for power 1 x LED Indicator for storage

Brightness Knob

1 x Brightness Adjustment Knob

Power Input

1 x 12V DC, 2.5φ DC jack

Control

Button

1 x Power Button 1 x Reset Button

Accessory

Accessory

100~240V AC to DC Adapter Power Cord VESA screws Mounting clips

Power

Power Rating

12V DC

Adapter

12V 84W
