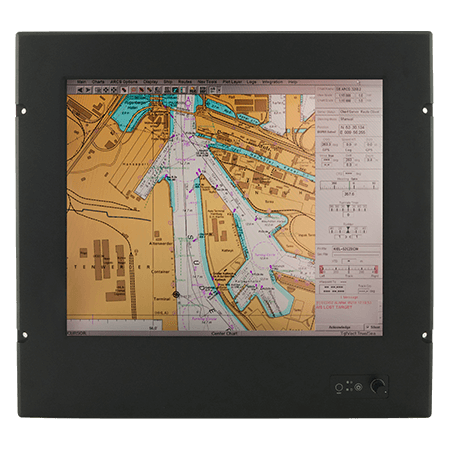

R19L300-MRA2ID3S 19" Intel Atom® N2600 Marine Panel PC
- Intel Atom® N2600 dual-core processor Marine Panel PC
- Dimming knob control backlight brightness from nearly 0% to 100%
- Transflective film technology enhances visibility
- Panel (flush) mount IP66 aluminum housing with powder coating design (IP54 rear)
- 9~36V DC power input acceptable
19" Intel Atom® N2600 Marine Panel PC
Reliable Computing Certified for Marine Applications
Winmate Marine Panel PCs are built and tested according to DNVGL-CG-0339 Standard, IEC60945, and IACS-E10 to meet the international regulatory requirements of the marine industry. Standard, IEC60945, and IACS-E10. Winmate performs in-house reliability test to ensure optimal performance in harsh maritime environments.
Safe Sailing at Bright Sun, Dusk, and Night
To face the challenges of sailing in different conditions, Winmate Marine Panel PCs suitable for day, dusk, and night settings. Our devices feature hyper dimming technology that can control backlight brightness linearly from nearly 0% to 100% by a dimming knob. At the same time, add an optional transflective film to enhance the visibility in an outdoor and bright ambiance environment.
Convenient Front Panel OSD Control and Dimming Knob
All the controls are located on the front panel OSD for fast access anytime. Dimming knob allows controlling backlight brightness from nearly 0% to 100%, designed for marine industry applications.
Survives All Weather Conditions
The rugged mechanical design of the Winmate Marine Panel PCs provides enhanced shock and vibration resistance. Also, the high power efficiency and low heat design guarantee the stability and longevity required for mission-critical deployment. Deploy Winmate Winmate Marine Panel PCs for your safe operations at sea in all weather conditions.
Marine Panel PC feature-rich I/O connectivity that consists of two USB 2.0, three COM ports, VGA, LAN, and compact flash socket for an extension. Easy to integrate into existing marine equipment.
Touch / Glass
Resistive Touch Screen AR Glass (Optional)
Intel Atom® N2600 (1M Cache, 1.6 GHz)
1 x SO-DIMM, DDR3L 1600 MHz, 4GB
1 x mSATA SSD 128GB mSATA SSD up to 512GB (Optional)
Windows 7 Embedded Systems (Optional) Linux Ubuntu 20.04 (Optional)
5% to 95%
0.7g@DNVGL CG-0339 (Class A)
IP66 (Front Side)
DNVGL-CG-0339, IEC60945 4th, IACS E10, CE, FCC
2 x USB2.0
1 x RS232/422/485 4 x RS232 or 4 x Isolation RS422/485
2 x RJ45-10/100/1000 Mbps
1 x VGA
384.5 x 444 x 75 mm
408 x 359 mm
VESA Mount/ Panel Mount
Metal Housing with Aluminum Bezel
Driver CD & User Manual 4 x M6 Black Screw Bolt with M6 Nut
24V DC-in with Isolation (Approval by Certificate) 9~36V DC Input Acceptable
1 x Power Button 1 x Reset Button 1 x The Dimming Knob
Marine Mounting Kit
Model Name: MMK-19
Part Number: 99KK19000010
