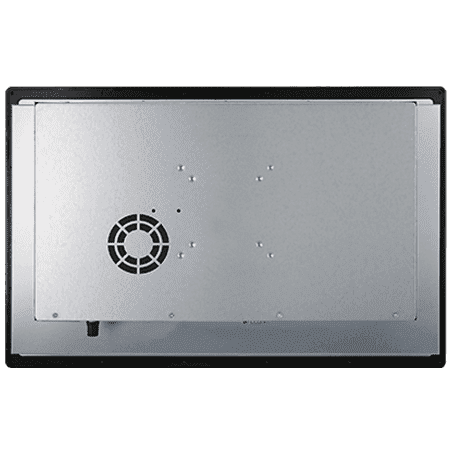

W22IK7T-PMA3 21.5" Intel® Core™ i3/i5/i7 (Kaby Lake) Industrial Panel PC

KEY FEATURES

  • 21.5" 1920 x 1080 Resolution
  • Intel®7th Generation Core™ i3/i5/i7 processor (Kaby Lake) industrial panel pc
  • Flexible storage devices, one 2.5-inch HDD and one SSD
  • Multiple I/Os, 2 x Serial Ports, 4 x USB 3.0 Ports
  • 12 V DC Power input
  • DP Support 4096 x 2304 @ 60 Hz
  • HDMI Support 4096 x 2304 @ 24 Hz
  • CERTIFICATIONS
  • FCC CE

W22IK7T-PMA3New Design

21.5" Intel® Core™ i3/i5/i7 (Kaby Lake) Industrial Panel PC
Overview
Specification
Winmate Panel Mount Kaby Lake Panel PC W22IK7T-PMA3 with Resistive Touch

Resistive Touch / Optional Protective Glass

For the convenience of the operators in the industrial environment, the Panel PC offers flexible surface options such as cover glass (when touch is not required) and a resistive touch screen to meet different specifications.


Winmate Panel Mount Kaby Lake Panel PC W22IK7T-PMA3 with Low Power Consumption

Low Power Consumption

This Panel PC is designed for low power consumption and effective heat dissipation, making it durable for long-term usage in production facilities. It is the ultimate energy-efficient solution.


Winmate Panel Mount Kaby Lake Panel PC W22IK7T-PMA3 with Comprehensive Mounting

Rear and VESA mounting

Several mounting solutions such as rear and VESA mounting that users can choose the most suitable mounting options for their application.

Display

Size

21.5 inches

Touch / Glass

Resistive Touch Screen (Optional) Protection Glass w/o Touch Function (Optional)

Resolution

1920x1080

Panel Brightness

250 nits

Contrast Ratio

3000:1

View Angles

89,89,89,89

Active Area

476.64x268.11 mm

System Specification

Processor

Intel® Core™ i7-7700T (8M Cache, 2.9 GHz up to 3.80 GHz, LGA plugable CPU) Intel® Core™ i5-7500T (6M Cache, 2.7GHz up to 3.30 GHz, LGA plugable CPU) Intel® Core™ i3-7100T (4M Cache, 3.34 GHz, LGA plugable CPU)

Chipset

Intel® C236

Memory

1 x SO-DIMM, DDR4 2400 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) 2 x SO-DIMM, DDR4 2400 MHz, 4GB (Optional) 8GB (Optional) 16GB (Optional) 32GB (Optional) 64GB (Optional)

Storage

1 x M.2 2242 B-key SSD 128GB. M.2 2242 B-key SSD Up to 512GB. (Optional) 1 x 2.5" SSD / HDD (Optional) 2 x SATA III support RAID 0,1 (Optional)

Ethernet controller

2 x Intel® Ethernet Controller

Security

TPM 2.0

Operating System

Windows 10 IoT Enterprise (Optional) Linux Ubuntu 20.04 (Optional)

WLAN

Support (Optional)

BT

Support (Optional)

Mechanical

Dimension

534 x 349 x 81 mm

Cut out

506x302mm

Mounting

Panel mount VESA Mount

Enclosure

Metal Housing

Cooling System

Fan design

Environment

Operating Humidity

10% to 90% (non-condensing)

Operating Temperature

0~50°C

Storage Temperature

-10~60°C

Certification

Certification

CE, FCC

IO Ports

USB Port

4 x USB3.2 Gen1x1 (Type-A)

Serial Port

1 x RS232/422/485 (Default RS232) 1 x RS232

LAN

2 x Giga LAN RJ45 Connector

Video

1 x DP1.2 1 x HDMI 1.4 (Optional)

Audio

1 x Mic in 1 x Line out 2 x Speaker

Expansion Port

2 x M.2 slot(1 for WiFi, 1 for SSD) 1 x PCIex 16 (Optional)

Indicator

1 x LED Indicator for power 1 x LED Indicator for storage

Brightness Knob

1 x Brightness Adjustment Knob

Power Input

1 x 12V DC, Din4 pin connector

Control

Button

1 x Power Button 1 x Reset Button

Accessory

Accessory

100~240V AC to DC Adapter Power Cord VESA screws Manual Mounting clips

Power

Power Rating

12V DC (Lockable Power Jack)

Adapter

12V 120W
