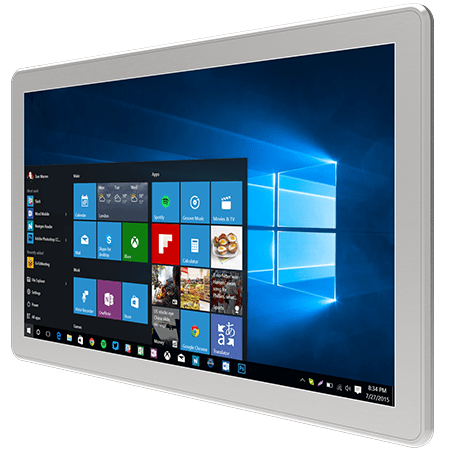

W24IP7T-PPA223.8" Intel® Pentium® N4200 PP Series HMI Panel PC
- 23.8", 1920 x 1080, 250 nit
- Projected capacitive multi-touch screen
- Intel® Pentium® Apollo Lake N4200, 1.10 GHz
- Fanless cooling system and ultra-low power power consumption
- Front IP65 water and dust proof
- Aluminum housing and fanless design
- Room booking schedule, access control, room information display
23.8" Intel® Pentium® N4200 PP Series HMI Panel PC
Real Flat Surface and Slim Design
The PP Series HMI panel PCs feature an elegant, slim design and true-flat design that works perfectly within industrial applications that satisfy the growing demand for control devices with a flat design. With a truly flat surface, PP Series HMI panel PCs are easy to maintain and clean, leaving no more clogged dust on the edges.
Convenient Onscreen Operations with PCAP Multi-Touch
The PP Series HMI panel PCs offer an ultimate touch experience with a projected capacitive (PCAP) multitouch screen. This technology allows enjoying every touch and improving the convenience of using the device. Thus it helps to enhance the overall customer experience. Enjoy every touch!
Front IP65 Water and Dust Proof
The IP65 rating is utterly impervious to dust and protected against the splash of waters. The PP Series HMI panel PCs deliver outstanding processing, graphical, and media performance while operating in challenging conditions.
Rich I/O Interface for IoT Connectivity
The PP Series HMI panel PCs feature high performance and a rich I/O interface for innovative industrial IoT solutions, including serial ports, USB ports, LAN, video, and audio ports. Connectivity options, high performance, and installation-friendly design deliver excellent performance for vertical applications.
Suitable for Industrial Automation
Robust aluminum die-cast housing offers corrosion resistance and durability, making the PP Series HMI panel PCs suitable for a wide range of application possibilities in industrial and factory applications with challenging environments.
Touch / Glass
Projected Capacitive Multi Touch Screen
Intel® Pentium® N4200 (2M Cache, up to 2.5 GHz)
2 x SODIMM, DDR3L 1866 MHz, 4GB 8GB (Optional)
1 x M.2 2242 SSD 128GB M.2 2242 SSD up to 512GB (Optional)
2 x Intel® Ethernet Controller I210-AT
Windows 10 IoT Enterprise (Optional) Linux Ubuntu 18.04 (Optional) Linux Ubuntu 20.04 (Optional)
625 x 390 x 72.7 mm
Panel mount VESA Mount
10% to 90% (non-condensing)
4 x USB3.0 (Type-A)
1 x RS232/422/485 (Default RS232) 1 x RS232 2 x RS232 (Optional)
2 x Giga LAN RJ45 Connector
1 x DP1.2 1 x HDMI 1.4 (Optional) 1 x VGA (Optional)
1 x Mic in 1 x Line out
1 x M.2 2242 Key B slot for SSD 1 x M.2 2230 Key E slot for WiFi (Optional) 1 x PCIe 2.0 x1 (Optional)
1 x LED Indicator for power 1 x LED Indicator for storage
1 x Brightness Adjustment Knob
1 x 12V DC, Din4 pin connector
1 x Power Button 1 x Reset Button
100~240V AC to DC Adapter Power Cord Driver CD & Manual VESA screws Mounting clips
