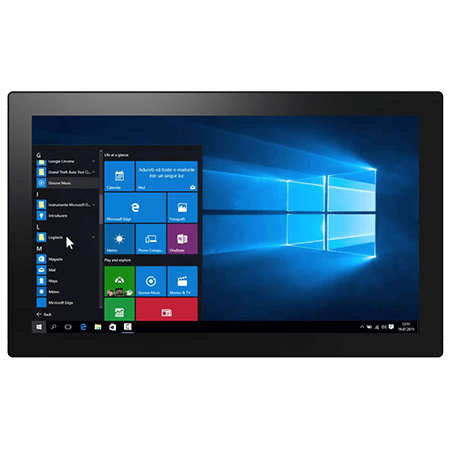

W27IE3S-PCA1 27" Intel® Celeron® N6211 PCAP Standalone HMI Panel PC
- Intel® Celeron® N6211 Processor
- 1920 x 1080 Resolution
- Projected capacitive multi-touch screen
- Multi display supports HDMI / LVDS / eDP panel interface
- Multiple I/Os, 2 x Serial Ports, 2 x USB 3.2 Gen2x1 Ports
- A true flat, easy-to-clean front surface with edge-to-edge design
- Front IP65 water and dust proof
- Aluminum housing and Fanless design
- 12V Single Voltage Power Input
27" Intel® Celeron® N6211 PCAP Standalone HMI Panel PC
Efficient Intel® Celeron® N6211 Processor
The Winmate 27-inch PCAP Standalone HMI panel PC features a 27-inch display, Intel® Celeron® N6211 processor, and true flat, easy-to-clean front surface with an edge-to-edge design. It offers powerful performance, responsive touch interface, and a sleek, maintenance-friendly design. Ideal for various industries and applications.
The Winmate 27" Intel® Celeron® N6211 PCAP Standalone HMI Panel PC boasts an easy-to-clean surface, making maintenance a breeze. With its powerful Elkhart Lake processor, it delivers exceptional performance. The PCAP touch technology ensures smooth and precise interactions. Its 27" display offers ample viewing space. Perfect for a range of applications, this HMI Panel PC combines functionality and convenience. Keep your workspace hygienic and enjoy efficient computing with this innovative device from Winmate.
HMI also comes with a VESA pattern for wall and desk mounting. Enable access to all of your I/O in high-traffic areas according to your specific requirements—easy access in all the industrial scenarios.
P-Cap Touch (Resistant to scratches)
The glass cover lens provides great protection from scratches. P-Cap Touch supports 4-point multi-touch and can easily be controlled by fingers. This technology allows enjoying every touch and improving the convenience of using the device. Thus it helps to enhance the overall customer experience.
Front IP65 Waterproof and Dustproof
Standout features is the front IP65 rating, which provides protection against water and dust. This level of ingress protection ensures that the panel PC can withstand harsh environments where moisture and particulate matter may be present. Whether it's in industrial settings, outdoor installations, or any other demanding conditions, the IP65 rating gives peace of mind regarding the device's durability.
Intel® Celeron® N6211 (up to 2.6GHz) Intel® Celeron® N6210 ( up to 3.0GHz) (Optional)
1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional)
1 x M.2 2242 B-key SSD 128GB M.2 2242 B-key SSD up to 512GB (Optional) 1 x SATA III for 2.5" SSD/HDD up to 1TB (Optional)
2 x Intel® Ethernet Controller
Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional)
675.4 x 413.4 x 48 mm
10% to 90% RH, Non-Condensing
0°C to 50°C
-10°C to 60°C
2 x USB3.2 Gen2x1 (Type-A)
1 x RS232/422/485 (Default RS232) 1 x RS232
2 x Giga LAN RJ45 Connector
1 x HDMI 2.0 (Optional)
1 x 12V DC, 2.5φ DC jack
1 x Power Button 1 x Reset Button
100~240V AC to DC Adapter Power Cord VESA screws
