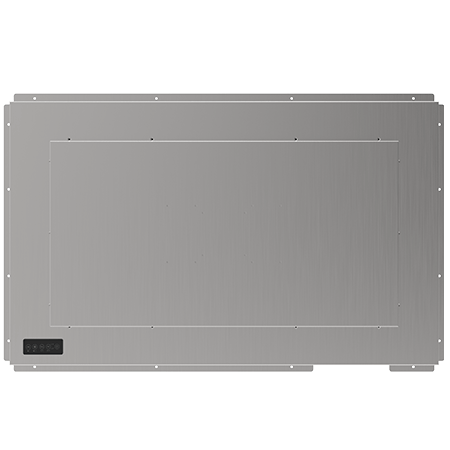

W32L100-POA3 32" Multi-Touch Open Frame Display

KEY FEATURES

  • 32", 1920 x 1080
  • VGA and HDMI input
  • Open frame
  • VESA mount
  • PCAP touch
  • CERTIFICATIONS
  • FCC CE

W32L100-POA3New Design

32" Multi-Touch Open Frame Display
Overview
Specification
Winmate multi-touch open frame display is durable industrial solution

Low Power Consumption

This display is designed for low power consumption and effective heat dissipation, making it durable for long-term usage in production facilities. It is the ultimate energy-efficient solution.


Winmate multi-touch open frame displa features universal mounting solution to suit your need

Rear and VESA mounting

Several mounting solutions such as rear and VESA mounting allow users to choose the most suitable mounting options for their application.


Winmate touch monitor offers superior quality for factory, business, and commercial applications

High Reliability for Various Industrial Applications

Winmate industrial monitors are designed to provide superior picture quality and state-of-the-art features in a rugged enclosure, ensuring years of reliable operation in any factory environment. Available in various sizes, housing materials, and optional features make these displays highly versatile and fit different use cases.


Winmate industrial vibrant and outstanding image quality

Outstanding Image Quality

Sophisticated timeless design coupled with Winmate expertise in industrial computers and touchscreen not only offers you a top product at an attractive cost but also gives you a sense of technical superiority and the future. Winmate display modules are perfectly assembled in the clean room for easy further processing.


Winmate technical support and customization industrial monitors

Display Ports and Customization

Winmate provides a wide range of customization options to meet your requirements, including product size, customer logo, LCD panel brightness, glass cover surface treatment, display ports, and many more. The power plug is selected according to the different styles of each country. Contact our team for more information.

Display

Size

32.0 inches

Touch / Glass

Projected Capacitive Multi Touch Screen

Resolution

1920x1080

Panel Brightness

400.0 nits

Contrast Ratio

4000:1

View Angles

89,89,89,89

Display Color

16.7M Colors

Active Area

698.4x392.85 mm

Environment

Operating Humidity

10% to 90% RH, Non-Condensing

Operating Temperature

0°C to 50°C

Storage Temperature

-10°C to 60°C

Certification

Certification

CE, FCC

IO Ports

USB Port

1 x USB for Touch Screen

Video

1 x VGA 1 x HDMI (Optional) 1 x DVI (Optional)

Audio

Audio line in (3.5mm) (Optional) 2 x Speaker (Optional)

Mechanical

Dimension

814 x 514 x 68 mm

Mounting

VESA Mount/ Panel Mount

Enclosure

Metal

Cooling System

Fanless Design

Accessory

Accessory

1 x VGA cable 1 x HDMI cable 100~240V AC to DC Adapter Power Cord Manual VESA screws(Varies by product)

Optional Accessory

Remote Controller (Optional,Varies by product)

Power

Power Rating

24V DC in

Control

Button

5 Keys: - , + , Power , Esc , Enter
