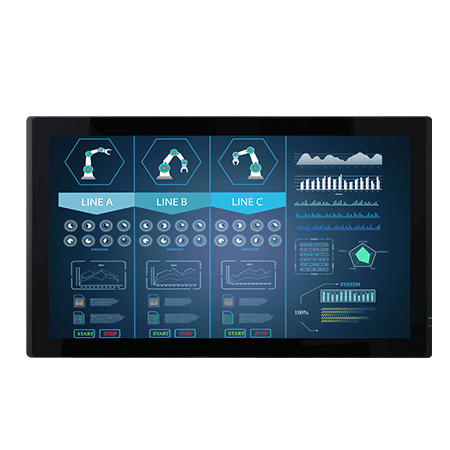

W32L100-PTA1-4K 32" Multi-Touch Chassis Display

KEY FEATURES

  • 32” 3840 x 2160 with P-CAP touchscreen, Multi-Touch Chassis Display
  • Bottom side keys x 5
  • Fanless and Ventless design, Easy-to-Clean
  • Support DP, HDMI signal input
  • Front IP65
  • CERTIFICATIONS
  • FCC CE

W32L100-PTA1-4KNew Design

32" Multi-Touch Chassis Display
Overview
Specification
Winmate multi-touch chassis display designed for energy efficient solution

Low Power Consumption

This display is designed for low power consumption and effective heat dissipation, making it durable for long-term usage in production facilities. It is the ultimate energy-efficient solution.


Winmate easy installation multi-touch chassis display for various industries

Easy Mounting

This industrial display comes with a universal VESA mounting option for wall and desk mounting. Enable easy installation and use in various industries according to your specific requirements.


Winmate touch monitor offers superior quality for factory, business, and commercial applications

High Reliability for Various Industrial Applications

Winmate industrial monitors are designed to provide superior picture quality and state-of-the-art features in a rugged enclosure, ensuring years of reliable operation in any factory environment. Available in various sizes, housing materials, and optional features make these displays highly versatile and fit different use cases.


Winmate industrial vibrant and outstanding image quality

Outstanding Image Quality

Sophisticated timeless design coupled with Winmate expertise in industrial computers and touchscreen not only offers you a top product at an attractive cost but also gives you a sense of technical superiority and the future. Winmate display modules are perfectly assembled in the clean room for easy further processing.


Winmate technical support and customization industrial monitors

Display Ports and Customization

Winmate provides a wide range of customization options to meet your requirements, including product size, customer logo, LCD panel brightness, glass cover surface treatment, display ports, and many more. The power plug is selected according to the different styles of each country. Contact our team for more information.

Display

Size

32.0 inches

Touch / Glass

Projected Capacitive Multi Touch Screen

Resolution

3840x2160

Panel Brightness

350.0 nits

Contrast Ratio

1000:1

View Angles

89,89,89,89

Display Color

1.07B Colors

Active Area

708.48x398.52 mm

Environment

Operating Humidity

10% to 90% RH, Non-Condensing

Operating Temperature

0°C to 50°C

Storage Temperature

-10°C to 60°C

IP rating

Front IP65

Certification

Certification

CE, FCC

IO Ports

USB Port

1 x USB for Touch Screen

Video

1 x DP 1.2 1 x HDMI 1.4 (Optional) 1 x HDMI 2.0 (Optional)

Audio

2 x Speaker

Mechanical

Dimension

799 x 478 x 63.7 mm

Weight

18.5 kg

Mounting

VESA Mount

Enclosure

Plastic

Cooling System

Fanless Design

Accessory

Accessory

1 x DP cable 2 x HDMI cable 100~240V AC to DC Adapter Power Cord Manual VESA screws(Varies by product

Optional Accessory

Remote Controller (Optional,Varies by product)

Power

Power Rating

12V DC in 24V DC in (optional)

Control

Button

5 Keys: - , + , Power , Esc , Enter
