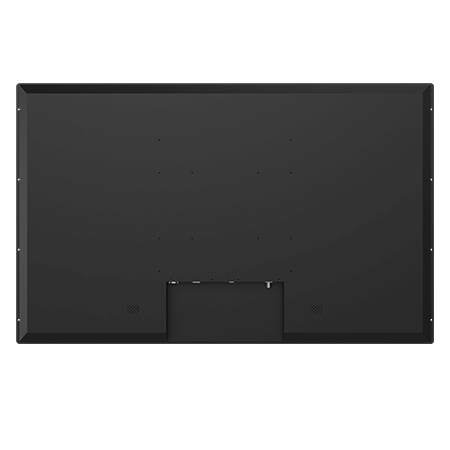

W55L100-MLA1FP 55" 4K2K UHD Defence Display
- 55” Display with 4K2K UHD Rack Mount Display (3840 x 2160) native resolution
- AC 100~240V, Universal, ±10%; DC 9~36V, ±10% (Optional)
- Compliant MILSTD 810G/ MILSTD 461E
- Convenient onscreen display controls
- Defence grade power connector (MILDTL38999/1)
- PCAP multitouch screen
- Rack mount mechanical design, supports VESA mount
55" 4K2K UHD Defence Display
4K2K – UHD TFT Panel – 4 times higher pixel density than HD
UHD (=Ultra High Definition) displays an extremely high resolution - from now on for industrial applications by Winmate. 4-times higher resolution and pixel density. Winmate 4K2K PPC displays with an incomprehensible high resolution of 3840 x 2160 pixels by Innolux are applicable for your industrial applications – NOW.
Reliable Computing Tailored for Defence Applications
To meet the regulatory requirements of the defence and defense, all Winmate's Defence Console Rack Displays are built and tested according to MIL-STD-810G environmental and MIL-STD 461F EMC standard. Winmate performs in-house reliability test to ensure optimal performance in harsh defence environments.
Command Center Focused Design
Increase the efficiency of the command center and control room personnel. Built your ergonomic command console that complies with defence and defense precise needs with Defence Console Rack Displays that feature rack mount mechanical design (8U).
Defence – Grade Connectors for Compatibility with Existing Defence Systems
The Defence Console Rack Displays come with MIL-DTL-38999 type I power input connector and, for selected models, MIL-DTL-38999 type III input/ output connectors – high-performance cylindrical connector for cable-to-panel applications in the Defence, air traffic control, or other mission-critical situations. Compatible with existing defence systems.
Convenient On-Screen User Controls
The Defence Console Rack Displays feature user-friendly physical OSD buttons for fast access to the central control located on the front panel.
Auto Brightness Control with Built-in Light Sensor
The Defence Console Rack Displays feature a built-in light sensor for auto-brightness control. The screen brightness effortlessly changes with the lighting conditions throughout the day.
Touch / Glass
Projected Capacitive Multi Touch Screen PCAP with With ITO Flim (Optional)
1209.6 x 680.4 mm
MILSTD 461F, MILSTD 810G, FCC, CE
10% to 95% RH
RE101 / RE102 CE101 / CE102 with EMI Glass / Touch(Optional) RS101 / RS 103 CS101 / CS 106 / CS 109 / CS 114 / CS 115 / CS 116
Vibration Method 514.5 Humidity Method 507.4 Transit Drop Method516.5
1 x USB for Touch Screen
1 x RS232 for Remote Control (Optional)
1 x VGA 1 x DVI 1 x Display Port 1.2 1 x HDMI 1.4 (Optional) 1 x HDMI 2.0 (Optional)
1 x Audio Line In (Optional)
1320 x 825 x 85 mm
VESA Mount/ Rack Mount
1 x User Manual(Hardcopy) 1 x Power Cord MILDTL38999/1 1 x VGA Cable 1 x DVI Cable 2 x HDMI Cable 1 x DP Cable 1 x USB Cable
1 x Audio cable
AC 100~240V, Universal, ±10% DC 9~36V, ±10% (Optional)
5 x Capacitive Touch Key Power Brightness+ Brightness- OSD/ Enter ESC
