I330EAC-ID3

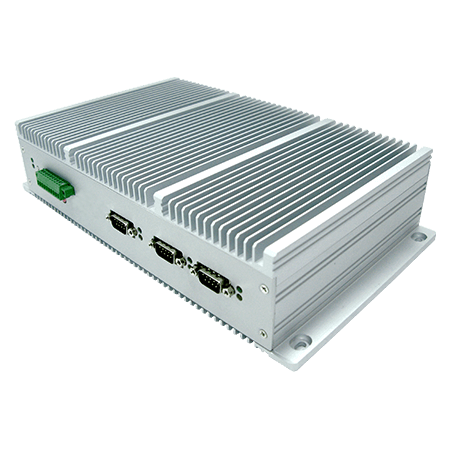

Winmate I330EAC Marine Computer is an embedded system certified for use in marine, rail, and other vehicle applications. The fanless system has EN 50155, EN 50121, DNV 2.4, IEC 60945 compliance together with CE (Class A), E-Mark, and ISO 7637 certification. The unit is powered by the Onboard Intel® Atom® N2600 1.6GHz (4C@1.91 GHz) processor making it a great performance vs cost choice on-board for rolling stock or shipping applications. The Winmate I330EAC Marine computer supports a hot-swappable 2.5” HDD/SSD hard drive plus 1x mSATA plus DDR3L-1333, 4 GB memory onboard. I/O includes 1x COM, 2x USB 2.0, 1x VGA, 5 x BNC (4 x video-in/1 x audio-in) and 2 x M12 or RJ-45 GbE LAN. You can also add WiFi, 3G/4G, and GPS via a SIM slot and 1x mini PCI-Express expansion. In our age of rapid technological advancement, the marine and offshore industries are continually searching for new ways to take advantage of the latest benefits of the technology tidal wave. In maritime activities and naval forces, rapid, reliable, and durable technology are mission-critical. Winmate offers marine products that feature industrial-grade design and undergo rigorous testing beyond military standard compliance to ensure safety and performance. The innovative Marine Panel PC, Display, and EAC Box PC deliver power, peripheral connectivity, and the ability to control and power multiple devices at once while meeting marine equipment standards DNVGL-CG-0339, IEC60945, and IACS E10. Winmate marine panel PCs and displays are suitable for maritime applications, including bridge control systems, engine room monitoring, navigation, and positioning systems. Why Winmate? Ruggedness – Winmate performs in-house product reliability tests to ensure optimal performance in harsh environments, including exposure to humidity, shock, and vibration. Panel Options – For demanding applications such as in marine navigation, daylight-viewable screens can provide reliable use in all daytime lighting conditions; Winmate offers transflective or high brightness screen options. Viewability – Winmate marine series offers numerous combinations of display and touch technologies and backlight intensities for convenient brightness control and viewability during the day, night, and dusk. Design and Electronics – Powder-coated aluminum housings feature anti-corrosion protection against salt, water, and humidity necessary for marine applications. Longevity – Our marine-approved computers have a long product life cycle to guarantee compliance with existing systems for many years. with Winmate IPC System Processor with Intel Atom® N2600 (1M Cache, 1.6 GHz) Chipset, Intel® NM10 and Memory 1 x SO-DIMM, DDR3L 1600 MHz, 4GB, Storage with 1 x mSATA SSD 64GB or mSATA SSD up to 512GB (Optional), Ethernet controller BCM57780A1KMLG, and Operating System Windows 7 Embedded Systems (Optional) or Linux Ubuntu 16.04 (Optional). The Marine Box pc with Environment Operating Humidity 5% to 95%, Operating Temperature -15~55°C. DNVGL-CG-0339, IEC60945 4th, IACS E10, CE, FCC. can with Mounting on desktop or wall mount. Enclosure Aluminum, Cooling System, Fanless Design, with best of battery powered, a long range like others electric vehicles or like Volkswagen, the id.3 can go with an electric motor, or electric car, with carbon, neutral design firm on 1st edition. voice control or pro performance with 77kwh battery, and id models with a steering wheel. DVN GL is an autonomous and independent foundation with the objectives of safeguarding life, property, and the environment at sea and onshore. DNV certification is related to the quality of ships, offshore units, and installations of the system and components. Equipment intended to be used in navigation and radio communication systems is to comply with IEC Publication No. 60945, "Maritime navigation and radio communication equipment and systems – General Requirements- Method of testing and required test results."IACS is an organization that provides technical support and guidance for promoting the safety of life, property, and the environment through the verification of compliance with technical and engineering standards for the design, construction, and life-cycle maintenance of ships, offshore units, and other marine facilities. Embedded automation controller for peripheral connectivity in marine applications, with Fanless, high-efficiency thermal design in a sealed construcWinmate Inc. is a rugged computing and embedded solutions provider for industries operating in some of the most challenging environments. The Intel ® Atom® N2600 Marine IPC Box PC with Aluminum housing, go with 8 x Isolated DIDO, 4 In/ 4 Out, 4 x Isolated RS42. Winmate was Founded in 1996 in Taipei, Taiwan, where its headquarters, research, and development facility, and production lines are located. Today, the company has offices and service centers worldwide. Winmate Marine computer develops rugged industrial-grade computing solutions that advance the Industrial Internet-of-Things (IoT), including the industrial display and panel PC, HMI, embedded systems, IoT gateways, rugged tablets, and handheld devices for industries ranging from transportation and logistics to marine and military, railway, oil and gas, smart grid, healthcare, and field services. Winmate Marine computer also provides professional services in customizing products and project management to create a unique solution for specific customer needs. Winmate Marine computer was born to automation and M2M (machine to machine) applications. These Winmate Marine computers are essentially embedded fanless PCs configured for various applications of processing and input/output control tasks. It combines different processors with extensive and Flexible I/O support both for connections requiring RS232/422/485 serial ports with isolation and auto-direction function as well as digital I/O Ports, standard USB connections, and Gigabit Ethernet. Good thermal engineering means no fan and therefore no ventilation holes.
