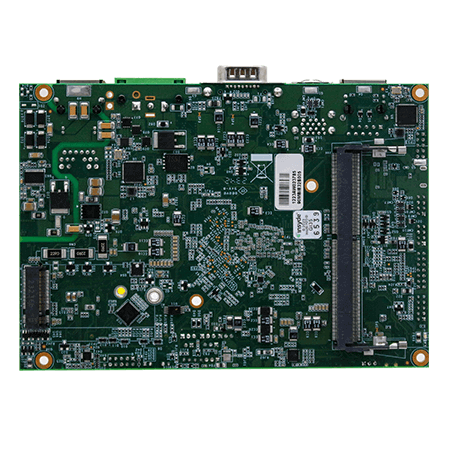

IE32S
Intel® Celeron® N6211 x86 Embedded Motherboard
KEY FEATURES
- 3.5” Form Factor (146mm x 102mm / 5.7 x 4 inches)
- Intel® Celeron® Elkhart Lake N6211 Processor
- 1 x DDR4 SO-DIMM 3200 MHz, max. 16GB
- Intel® UHD Graphics 10th Gen
- 2 x 2.5 Gbps Ethernet, one with PoE function on
- 2 x USB 3.2 Gen 2x1, 1 x RS232/422/485, 1 x Micro HDMI(Optional)
- Support M.2 B-Key 2242 SATA III SSD, max. 512GB
FCC" title="FCC
CE" title="CE
CERTIFICATIONS
IE32S
Intel® Celeron® N6211 x86 Embedded Motherboard
Product Details
Powered by a High-Performance CPU
Winmate IE32S industrial single board computer, featuring the Intel® Celeron® Elkhart Lake N6210 Processor. Unlock the potential for next-generation IoT solutions across diverse sectors, including retail, transportation, and industrial automation
Industrial-Grade Components for Reliable Operation
Designed with an array of robust I/O capabilities, advanced connectivity and versatile customization options, Winmate IE32S industrial single board computer not only optimizes space with its smaller footprint but also facilitates easy integration into installations with space constraints.
Fully Integrated and Compact Industrial Computer Board.
Winmate’s IE32S industrial single board computer facilitates seamless connections, boasting 2 x SATA III, 4 x COM, 2 x USB 3.2 Gen2x1, and 4 x USB 2.0 interfaces. With dimensions measuring 102x146mm, the board is not only compact but also operates efficiently within a wide power input range of 9V - 36V. Its extended temperature range, spanning from -40 to +85°C, ensures reliable performance in diverse environments.
Specification
Processor
Intel® Celeron® N6211 ( up to 3.0GHz)
Memory
4GB(Default) (Default)
8GB (Optional)
16GB (Optional)
Storage
128GB SSD(Default) (Default)
256GB SSD (Optional)
512GB SSD (Optional)
1TB (Optional)
2TB (Optional)
Ethernet controller
2 x Intel® Ethernet Controller
Security
TPM 2.0
Operating System
Windows 11 IoT Enterprise (64 bit) (Optional)
Windows 11 Pro 64 bit (Optional)
Windows 10 IoT Enterprise (64 bit) (Optional)
Linux Ubuntu 22.04 (Optional)
WLAN
Support (Optional)
BT
Support (Optional)
USB Port
2 x USB3.2 Gen2x1 (Type-A)
Serial Port
1 x RS232/422/485 (Default RS232)
LAN
2 x 2.5 Giga LAN RJ45 Connector,one with PoE(PD, 802.3 at)(Optional)
Video
1 x Micro HDMI (Optional)
Expansion Port
1 x M.2 2242 B-Key Slot (for SATA III SSD)
1 x M.2 2230 E-Key Slot (for Wi-Fi module)
Power Input
1 x 12V DC, 3-Pin Terminal Block
Power input
1 x 3pin Terminal Block
Power output
1 x 2pin(1x2) red wafer for 5V DC out
USB
2 x 8pin(2x4) for 4 x USB 2.0
1 x FPC connector(CN8) for touch screen
UART
1 x 6pin(1x6) for UART
Display
1 x 40pin DF13 connector for LVDS.Co-lay for eDP (Default)
1 x 40pin FPC connector Co-lay for LVDS(CON3) (Optional)
Backlight
1 x 7pin(1x7) for panel backlight
DIDO
1 x 14pin(2x7) for Digital input/output
VR
1 x 5pin(1x5) MCU debug port
OSD
1 x 10pin(2x5) for OSD control
Speaker
2 x 2pin(1x2) for Speaker
Backup battery
1 x 2pin(1x2) for RTC battery
Audio
1 x 12pin(2x6) for Line in/Line out/ Mic in
Certification
CE, FCC
Dimension
146 x 102 mm
Operating Humidity
10% to 95% RH, Non-Condensing
Operating Temperature
0°C to 60°C
Storage Temperature
-40°C to 70°C
Accessory
1 x Installation Guide
Optional Accessory
1 x SATA cable (94H007Z070K0) (Optional)
1 x SATA Power cable (94HE08Z150E0) (Optional)
1 x COM cable (94G309E100E1) (Optional)
1 x 2-Port USB 2.0 Type A cable (94E808E080K0) (Optional)
1 x 12V 84W Adapter (922D084W12V1) (Optional)
1 x Power cord (Varies by country) (Optional)
1 x CPU Heatspreader (98K000A000N2) (Optional)
1 x Membrane (98K000A000N1) (Optional)
2 x Speaker (612620000007) (Optional)
Power Rating
12V DC
POE
PoE (PD): follows IEEE 802.3at (25 W)
Product FAQs
What is the Winmate IE32S embedded motherboard used for?
The Winmate IE32S embedded motherboard is designed for industrial automation, compact HMI, embedded control, and network-connected edge devices. In Winmate product planning, board selection is usually based on the full system design rather than board size alone, so this platform is best evaluated together with installation space, interface demand, and long-term service requirements.
What processor does the IE32S embedded motherboard use?
The IE32S embedded motherboard uses Intel® Celeron® N6211 processor. This gives buyers a compact x86 platform for embedded and industrial workloads, while the final configuration should still be aligned with the application’s performance target, thermal conditions, and operating environment.
Why does the form factor of the IE32S embedded motherboard matter in system design?
In Winmate product planning, motherboard form factor refers to the board’s physical size, mounting layout, and expansion structure. For the IE32S embedded motherboard, this directly affects enclosure design, port placement, cooling strategy, and upgrade flexibility. Smaller platforms help reduce installation footprint while still supporting essential I/O and reliable performance.
How much memory does the IE32S embedded motherboard support?
The IE32S embedded motherboard supports DDR4 3200 SO-DIMM memory up to 16GB. Memory selection should be matched to the intended workload, especially for applications involving multitasking, edge analytics, graphics, or data-intensive control processes.
What storage options are available on the IE32S embedded motherboard?
The IE32S embedded motherboard supports M.2 2242 B-Key SATA III SSD storage with official capacities up to 2TB. For Winmate-related industrial use cases, storage planning should consider boot speed, data logging needs, maintenance access, and whether the application benefits more from compact flash storage, additional drive capacity, or both.
What networking features does the IE32S embedded motherboard provide?
The IE32S embedded motherboard provides dual 2.5 Gigabit LAN, with one port supporting optional PoE under IEEE 802.3at. In industrial deployment, network choice affects system architecture, cable routing, and connected device strategy, so buyers should match the board’s Ethernet capability to their real communication and field integration requirements.
What display and I/O options are supported by the IE32S embedded motherboard?
The IE32S embedded motherboard supports optional Micro HDMI, plus internal LVDS and optional eDP connections, along with practical embedded I/O for industrial integration. This kind of flexibility matters because enclosure compatibility, connector clearance, display routing, and peripheral support all influence how easily the final system can be deployed and maintained.
Does the IE32S embedded motherboard support expansion or wireless integration?
Yes. The IE32S embedded motherboard supports an M.2 2230 E-Key slot for optional WLAN and BT modules. For compact industrial systems, expansion planning should balance footprint, thermal headroom, and future upgrade needs rather than focusing on connector count alone. Its optional PoE capability is useful when a project wants simpler cable routing and cleaner deployment for connected industrial systems.
Which operating systems, power input, and platform protection features are available on the IE32S embedded motherboard?
The IE32S embedded motherboard supports Windows 11 IoT Enterprise, Windows 11 Pro, Windows 10 IoT Enterprise, and Ubuntu 22.04 with TPM 2.0 and uses 12V DC input through a 3-pin terminal block. In Winmate product selection, power architecture should be matched to the deployment environment first, with attention to input stability, thermal design, security requirements, and the surrounding application ecosystem.
Is the IE32S embedded motherboard suitable for industrial environments?
Yes. The IE32S embedded motherboard is specified for 0°C to 60°C operating temperature, -40°C to 70°C storage temperature, 10% to 95% non-condensing humidity, and CE/FCC compliance. With Winmate products, compatibility is evaluated at the system level: board dimensions, mounting pattern, I/O clearance, power input, and cooling space all matter. The right platform should therefore be selected according to ruggedness, operating environment, and application-specific integration needs.
