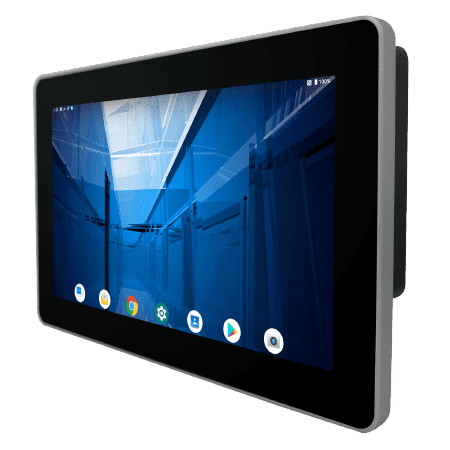

R12MG3S-GSM2(HB)
12.1" ARM A78 + A55 G-WIN GS-Series Full IP65 PCAP Panel PC

Winmate R12MG3S-GSM2(HB) is a 12.1-inch ARM A78 + A55 G-WIN GS-Series Full IP65 PCAP Panel PC designed for machine control, factory automation, and operator HMI. This product helps industrial buyers, OEMs, and system integrators select a reliable Winmate solution for rugged, embedded, or mission-critical environments where performance, durability, and long lifecycle availability matter. Best for: The R12MG3S-GSM2(HB) is best suited for machine control, factory automation, and operator HMI, especially when teams need stable hardware integration, dependable field operation, and a supplier with industrial computing experience. Key specifications: Important product highlights include 12.1” 1024 x 768 with P­CAP touchscreen, ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz, Fanless cooling system and Ultra­low power consumption, Full IP65, Onboard 32GB eMMC, and Onboard LPDDR4 4GB. SEO search intent: This content is optimized for users searching for R12MG3S-GSM2(HB), Winmate R12MG3S-GSM2(HB), Winmate industrial panel PC, industrial panel PC, 12.1-inch industrial panel PC, and IP65 industrial panel PC, and for purchase-intent queries related to industrial-grade Winmate hardware, rugged computing, embedded systems, and application-ready product solutions.

KEY FEATURES

  • 12.1” 1024 x 768 with P­CAP touchscreen
  • ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz
  • Fanless cooling system and Ultra­low power consumption
  • Full IP65
  • Onboard 32GB eMMC
  • Onboard LPDDR4 4GB
  • 1 x LAN, 1 x RS232, 1 x USB, 1 x USB Type-C, 1 x Micro SD

    CERTIFICATIONS

  • IP65
    FCC
    CE

R12MG3S-GSM2(HB)

12.1" ARM A78 + A55 G-WIN GS-Series Full IP65 PCAP Panel PC
Winmate GS Series R12MG3S-GSM2(HB) Panel PC featuring PCAP Touch, seamless and responsive touch interface enabling single-touch, dual-touch, and multi-touch functionalities, enhancing user interaction across various applications

Seamless Gestures Enabled by PCAP Touch

The GS series panel PC with PCAP displays seamlessly reacts to touch input, accommodating single-touch, dual-touch, and multi-touch functionalities with ease. In contrast to resistive screens, they operate without the need for pressure, thereby improving accuracy and user comfort. These displays find extensive utilization across various sectors such as consumer electronics, medical equipment, and industrial control systems, significantly enriching user interaction across a diverse range of applications.


Winmate's GS Series R12MG3S-GSM2(HB) Panel PC showcasing cutting-edge eMMC storage and DDR4 memory for superior performance and reliability in industrial computing.

Enhanced Performance and Reliability

The GS series Panel PC integrating eMMC storage with DDR4 memory offers optimized performance, reliability, data integrity, space efficiency, energy efficiency, and cost-effectiveness, making it a compelling choice for a wide range of industrial applications requiring robust and efficient computing solutions.


Winmate's R12MG3S-GSM2(HB) Panel PC, featuring an innovative fanless cooling system, ensures silent and energy-efficient operation, enhancing user experience

Silence and Performance Combined

By adopting fanless cooling systems featuring heat sinks and vapor chambers, the Winmate GS Series ensures quiet and energy-efficient operation, eliminating the usual noise associated with fans. Specifically crafted for panel PCs and industrial settings, they offer smooth performance without compromising on silence. Additionally, these advanced cooling methods contribute significantly to energy conservation, enhancing their overall value.


Front IP65 rating certification for Winmate's G-WIN GS series R12MG3S-GSM2(HB) HMI panel PC, offering robust protection against water, dust, and contaminants for reliable performance in demanding environments.

Water Resistance (IP65)

The G-WIN GS series HMI panel PC features a front IP65 rating, providing robustness in challenging environments against water and dust. This shield defends it from water splashes, dust, and other contaminants, preserving operational reliability. With this certification, operators can confidently employ the HMI in demanding industrial conditions, without fears of damage from moisture or dust. This attribute enhances dependability and durability, facilitating effective support for critical industrial operations.


Winmate's G-WIN GS Series R12MG3S-GSM2(HB) Panel PC highlighting a variety of I/O interfaces including LAN, RS232, USB, USB Type-C, and Micro SD, catering to diverse industrial connectivity needs.

Diverse I/O Ports

Tailored to address diverse industrial requirements, the Winmate G-WIN GS Series Panel PC offers an array of I/O interfaces, such as 1 x LAN, 1 x RS232, 1 x USB, 1 x USB Type-C, 1 x Micro SD. These interfaces enable effortless connectivity and interaction with a wide array of external devices and peripherals, enhancing the versatility of the Panel PCs for various applications.

Display

Touch / Glass

Projected Capacitive Multi Touch Screen (Default)
Protection Glass (Optional)

Size

12.1 inches

Resolution

1024x768

Panel Brightness

500 nits(Default)
1000 (Optional)

Contrast Ratio

1000:1

View Angles

89,89,89,89

Active Area

245.76x184.32 mm

System Specification

Processor

ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz

Memory

4GB LPDDR4

Storage

Onboard 32 GB

Operating System

Android 13 (Default)
Linux Yocto 5.15.47 with QT 5.15 (Optional)
Linux Ubuntu 22.04 (Optional)

Environment

Operating Humidity

10% to 95% RH, Non-Condensing

Operating Temperature

-15°C to 55°C

Storage Temperature

-30°C to 60°C

Shock

MIL-STD-810H Method 516.8 Procedure I

Vibration

MIL-STD-810H Method 514.8 Procedure I

IP rating

IP65

Certification

Certification

CE, FCC

IO Ports

USB Port

1 X USB 2.0 (M12 type)
1 X USB Type-C

Serial Port

1 x RS232 (M12 type)(Optional 422/485)

LAN

1 x LAN 10/100/1000 Mbps (M12 type)

Audio

2 x Speaker

SD Card Slot

1 x Micro SD card slot

Mechanical

Dimension

296.2 x 226.7 x 45.5 mm

Mounting

Panel mount
VESA mount

Enclosure

Metal Housing with Aluminum Bezel

Cooling System

Fanless Design

Power

Power Rating

12V DC (M12 type)

Accessory

Accessory

Quick Start Guide (Hardcopy)
M12 Power Cable
M12 Serial Interface Cable
M12 USB/ LAN Cable
I/O Protective Cap x 3

  • What is the Winmate R12MG3S-GSM2(HB)?

    R12MG3S-GSM2(HB) is a 12.1-inch Winmate G-WIN GS full-IP65 panel PC based on ARM 2 × A78 2.0 GHz + 4 × A55 2.0 GHz. It combines an industrial touchscreen and local computing for an operator interface.

  • What are the display size, resolution and brightness of R12MG3S-GSM2(HB)?

    The detailed panel lists 12.1 inches, 1024 × 768, and 500 nits standard, 1000 nits optional.

  • What touch configuration does R12MG3S-GSM2(HB) offer?

    The detailed entry lists projected capacitive multi-touch. Protective glass or a different front is only available if the model lists that option.

  • Which connections does R12MG3S-GSM2(HB) use?

    The product specification includes USB, serial and network interfaces; the port counts and optional video or wireless modules vary by model and order.

  • How can R12MG3S-GSM2(HB) be mounted?

    The model-specific mechanical drawing and ordered bracket determine mounting. Check cutout, clearance, the full IP65 sealing boundary and connector routing; do not assume a family-wide mounting kit.

  • Which operating systems are listed for R12MG3S-GSM2(HB)?

    The operating-system entry lists Android 13 standard; Yocto / Ubuntu 22.04 optional. Confirm the selected image and support plan before deployment.

  • What operating conditions apply to R12MG3S-GSM2(HB)?

    The detailed operating range is -15–55°C and the protection is full IP65. Preserve the rated seal with the specified connectors, caps and cables in the complete installation.

  • What distinguishes R12MG3S-GSM2(HB) in system integration?

    The ARM 2 × A78 2.0 GHz + 4 × A55 2.0 GHz platform differentiates this panel PC; application performance depends on memory, storage, OS image and connected peripherals.

  • Where can R12MG3S-GSM2(HB) be used?

    It can be evaluated for machine HMI, production monitoring and industrial operator stations after software, I/O and installation requirements are matched.

  • What should an integrator check before specifying R12MG3S-GSM2(HB)?

    Before selecting this model, verify 1024 × 768 layout, ARM 2 × A78 2.0 GHz + 4 × A55 2.0 GHz, the chosen OS, touch type, I/O and connector sealing, full IP65, and the -15–55°C operating range.
