R19IK7T-PMA1

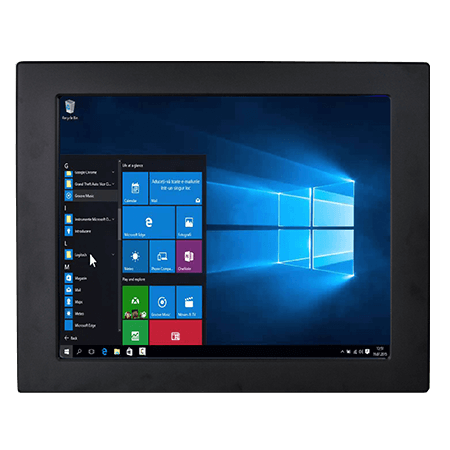

19" Intel® Core™ i3/i5/i7 (Kaby Lake) Panel Mount Panel PC

Name: 19" Intel® Core™ i3/i5/i7 (Kaby Lake) Panel Mount Panel PC | R19IK7T-PMA1
Brand: Winmate
SKU: R19IK7T-PMA1

Winmate R19IK7T-PMA1 is a 19-inch Intel® Core™ i3/i5/i7 (Kaby Lake) Panel Mount Panel PC designed for machine control, factory automation, and operator HMI. This product helps industrial buyers, OEMs, and system integrators select a reliable Winmate solution for rugged, embedded, or mission-critical environments where performance, durability, and long lifecycle availability matter. Best for: The R19IK7T-PMA1 is best suited for machine control, factory automation, and operator HMI, especially when teams need stable hardware integration, dependable field operation, and a supplier with industrial computing experience. Key specifications: Important product highlights include 19" 1280 x 1024 Resolution, Intel®7th Generation Core™ i3/i5/i7 processor (Kaby Lake), Flexible storage devices, one 2.5-inch HDD and one SSD, Multiple I/Os, 2 x Serial Ports, 4 x USB 3.0 Ports, 12 V DC Power input, and DP Support 4096 x 2304 @ 60 Hz. SEO search intent: This content is optimized for users searching for R19IK7T-PMA1, Winmate R19IK7T-PMA1, Winmate industrial panel PC, industrial panel PC, 19-inch industrial panel PC, and Intel® Core™ i3/i5/i7, and for purchase-intent queries related to industrial-grade Winmate hardware, rugged computing, embedded systems, and application-ready product solutions.

Discontinued (EOL)

The R19IK7T-PMA1 has been phased out and replaced by the R19IAD7T-PMA1 . For more information, please get in touch with us.

KEY FEATURES

19" 1280 x 1024 Resolution
Intel®7th Generation Core™ i3/i5/i7 processor (Kaby Lake)
Flexible storage devices, one 2.5-inch HDD and one SSD
Multiple I/Os, 2 x Serial Ports, 4 x USB 3.0 Ports
12 V DC Power input
DP Support 4096 x 2304 @ 60 Hz
HDMI Support 4096 x 2304 @ 24 Hz

CERTIFICATIONS

DATASHEET RESOURCE

ADD TO INQUIRY

ADD TO COMPARE

R19IK7T-PMA1

19" Intel® Core™ i3/i5/i7 (Kaby Lake) Panel Mount Panel PC

EOL

Overview Specification

Winmate Panel Mount Kaby Lake Panel PC R19IK7T-PMA1 with Resistive Touch

Resistive Touch / Optional Protective Glass

For the convenience of the operators in the industrial environment, the Panel PC offers flexible surface options such as cover glass (when touch is not required) and a resistive touch screen to meet different specifications.

Low Power Consumption

This Panel PC is designed for low power consumption and effective heat dissipation, making it durable for long-term usage in production facilities. It is the ultimate energy-efficient solution.

Winmate Panel Mount Kaby Lake Panel PC R19IK7T-PMA1 with Comprehensive Mounting

Rear and VESA mounting

Several mounting solutions such as rear and VESA mounting that users can choose the most suitable mounting options for their application.

Display

Size

19.0 inches inches

Touch / Glass

Resistive Touch Screen (Optional)
Protection Glass Without Touch Function (Optional)

Resolution

1280x1024

Panel Brightness

400.0 nits nits

Contrast Ratio

1000:1

View Angles

85,85,80,80

Active Area

376.32x301.06 mm mm

System Specification

Processor

Intel Core i7-7700T 2.9 GHz (up to 3.8GHz) (Default)
Intel Core i5-7500T 2.7GHz (up to 3.3GHz) (Optional)
Intel Core i3-7100T 3.4GHz (Optional)

Chipset

Intel® C236

Memory

2 x non-ECC SO-DIMM RAM, up to 64GB (32GB per DIMM)

Storage

128GB SSD(Default) (Default)
256GB SSD (Optional)
512GB SSD (Optional)
1TB SSD
2 x SATA III for 2.5" SSD / HDD, support RAID (Optional)

Ethernet controller

2 x Intel® Ethernet Controller

Security

TPM 2.0

Operating System

Windows 10 IoT Enterprise (64 bit) (Optional)
Linux Ubuntu 20.04 (Optional)

WLAN

Support (Optional)

Mechanical

Dimension

474 x 384 x 78 mm

Cut out

431 x 341 mm

Weight

6.9 kg

Mounting

Panel mount (Default)
VESA mount (Optional)

Enclosure

Metal Housing

Cooling System

Fan Design

Environment

Operating Humidity

10% to 90% RH, Non-Condensing

Operating Temperature

0°C to 50°C

Storage Temperature

-10°C to 60°C

Certification

CE, FCC

IO Ports

USB Port

4 x USB3.2 Gen1x1 (Type-A)

Serial Port

1 x RS232/422/485 (Default RS232)
1 x RS232

LAN

2 x Giga LAN RJ45 Connector

Video

1 x DP1.2 (Default)
1 x HDMI 1.4 (Optional)

Audio

1 x Mic in
1 x Line out
2 x Speaker

Expansion Port

1 x M.2 2242 B-key Slot (for SATA III SSD)
1 x M.2 2230 E-Key Slot (for Wi-Fi module)
1 x PCIe 3.0 (x16) slot

Indicator

1 x LED Indicator for power
1 x LED Indicator for storage

Brightness Knob

1 x Brightness Adjustment Knob

Power Input

1 x 12V DC, Din4 pin connector

Control

Button

1 x Power Button
1 x Reset Button

Accessory

100~240V AC to DC Adapter
Power Cord
VESA screws
Mounting clips

Power

Power Rating

12V DC (Lockable Power Jack)

Adapter

12V 120W

Display Size 19 inches Touch / Glass Resistive Touch Screen Protection Glass Without Touch Function (Optional) Resolution 1280x1024 Panel Brightness 400 nits Contrast Ratio 1000:1 View Angles 85,85,80,80 Active Area 376.32x301.06 mm System Specification Processor Intel® Core™ i7-7700T (8M Cache, 2.9 GHz up to 3.80 GHz) Intel® Core™ i5-7500T (6M Cache, 2.7GHz up to 3.30 GHz) Intel® Core™ i3-7100T (4M Cache, 3.34 GHz) Chipset Intel® H170 Memory 1 x SO-DIMM, DDR4 2400 MHz, 4GB 8GB (Optional) 16GB (Optional) 2 x SO-DIMM, up to 32GB (Optional) Storage 1 x M.2 2242 B-key SSD 64GB. M.2 2242 B-key SSD Up to 512GB. (Optional) 1 x 2.5" SSD / HDD (Optional) 2 x SATA III support RAID 0,1 (Optional) Ethernet controller Intel® Ethernet Controller I211-AT + Intel® Ethernet Connection I219-LM Security TPM 2.0 Operating System Windows 10 IoT Enterprise (Optional) Linux Ubuntu 18.04 (Optional) WLAN Support (Optional) BT Support (Optional) Mechanical Dimension 474 x 384 x 78 mm Cut out 431x341mm Mounting Panel mount VESA Mount Enclosure Metal Housing Cooling System Fan design Environment Operating Humidity 10% to 90% (non-condensing) Operating Temperature 0~50°C Storage Temperature -10~60°C Certification Certification CE, FCC IO Ports USB Port 4 x USB3.2 Gen.1 (Type-A) Serial Port 1 x RS232/422/485 (Default RS232) 1 x RS232 LAN 2 x Giga LAN RJ45 Connector Video 1 x DP1.2 1 x HDMI 1.4 (Optional) Audio 1 x Mic in 1 x Line out 2 x Speaker Expansion Port 2 x M.2 slot(1 for WiFi, 1 for SSD) 1 x PCIex 16 (Optional) Indicator 1 x LED Indicator for power 1 x LED Indicator for storage Brightness Knob 1 x Brightness Adjustment Knob Power Input 1 x 12V DC, Din4 pin connector Control Button 1 x Power Button 1 x Reset Button Accessory Accessory 100~240V AC to DC Adapter Power Cord Driver CD & Manual VESA screws Mounting clips Power Power Rating 12V DC (Lockable Power Jack) Adapter 12V 120W
