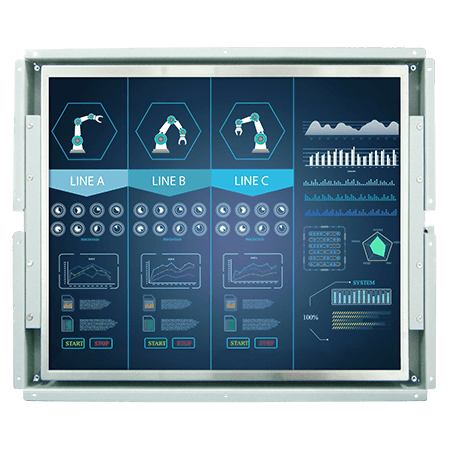

S17L500-OFM1
17” Open Frame Display

Display Size 17 inches Touch / Glass Resistive Touch Screen (Optional) Protection Glass w/o Touch Function (Optional) SAW Touch (Surface Acoustic Wave) (Optional) Resolution 1280x1024 Panel Brightness 350 nits Contrast Ratio 1000:1 View Angles 85,85,80,80 Display Color 16.2M Colors Active Area 337.920x270.336 mm Environment Operating Humidity 10% to 90% (non-condensing) Operating Temperature 0~50°C Storage Temperature -10~60°C Certification Certification CE, FCC IO Ports USB Port 1 x USB for Touch Screen Video 1 x VGA 1 x HDMI (Optional) 1 x DVI (Optional) Audio Audio line in (3.5mm) (Optional) 2 x Speaker (Optional) Mechanical Dimension 410 x 330 x 58 mm Mounting VESA Mount/ Panel Mount Enclosure Metal Cooling System Fanless Design Accessory Accessory 1 x VGA cable 1 x HDMI cable 100~240V AC to DC Adapter Power Cord Manual VESA screws(Varies by product) Optional Accessory Remote Controller (Optional,Varies by product) Power Power Rating 12V DC input Control Button 5 Keys: - , + , Power , Esc , Enter Winmate Corporations, a leading manufacturer of industrial and embedded computer platforms and technologies, announced today the launch of a new open frame Panel PC. With outstanding configuration flexibility which can be configured in many ways to deliver the best results, it is highly customizable to specific needs. To easily fit into any space or encased in any chassis, it comes with open frame and slim design. For versatile applications, several touch screen options are available and can offer different intelligent user experiences. the differences in the two are the CPU system, connectors, and power supply. The heavy duty steel with open frame metal construction provides a rugged and durable built. Combined with the operating temperature to be able to withstand a range from 32°F to 122°F and relative humidity of 10~90% non-condensing, the unit is produced for crucial environments both industrial and commercial industries have to endure in. For added protection, customizable features such as resistive or capacitive touch screens, protected glass (AR/AG), sunshine UV film, and light or motion sensor are available options for upgrade. With the 24” LCD panel, it presents a vibrant 1920 x 1080P full HD display with LED backlight, 1000:1 contrast ratio, 16.7 million colors, and options for 700/1000/1500-nits high brightness. operates on Celeron J1990 with two SATA HDD power supplied with 9~19V DC with AC power adapter, it operates on Haswell Core i3/i5/i7 Quad Core with four SATA 2 HDD power supplied with ATX PWR with AC power adapter with option for 24/ 48V DC power input. The connectors include the base of COM, USB 2.0, USB 3.0, HDMI, VGA, RJ45 GbE LAN, and Audio. They both support a Mini PCI Express expansion slot. Winmate 24” Panel PC with Haswell or Celeron Quad Core CPU, open frame metal construction, configurations with 4GB DDR3 memory, Ethernet, Serial, USB, VGA & HDMI output, 1 x mini PCI express expansion slot. Look inside to discover full range of Panel PCs from Winmate •Panel PC with up to 12” Touch Screen – Panel PCs with 5.7” to 12” touch screen •Panel PC with up to 19” Touch Screen - Panel PCs with 15” to 19” touch screen •Panel PC with Expansion Slots – Panel PCs with PCI or PCI Express expansion slots •Medical Grade Panel PC – Panel PCs with anti-bacteria coating, water/dust proof slim casing •Open Frame Panel PC – Panel PCs with rugged metal open frame housing for wall or VESA mounting •Rugged Industrial and Military Panel PC - Panel PCs that meet MIL-810G-STD testing standard for industrial and military computing applications. •Slim Design Panel PC – Panel PCs with ultra-slim housing for space-limited industrial applications •Stainless Steel Panel PC – Panel PCs with IP protection enclosure to cope industrial applications with harsh environmental conditions About Winmate Winmate manufactures, designs, and markets industrial computers and display solutions for diverse industries ranging from automation to military. We have an array of technological innovations in the area of rack mount servers, embedded computers, Panel PC’s and rugged monitors that create simpler and more valuable products to the customers. We work closely with our clients to customize computer products to meet their required projects and challenges. Winmate strives to explore new technologies to better improve life and work.
