W10IM3S-EHH2

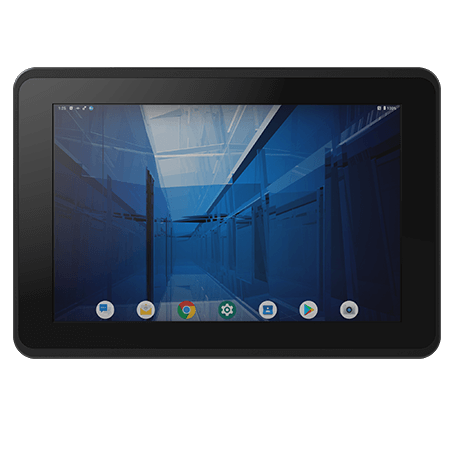

Winmate W10IM3S-EHH2 is a 10.1-inch ARM A53 E Series HMI Panel PC designed for machine control, factory automation, and operator HMI.

KEY FEATURES

W10IM3S-EHH2, Winmate W10IM3S-EHH2, Winmate HMI panel PC, HMI panel PC, 10.1-inch HMI panel PC, IP65 HMI panel PC, HMI panel PC for machine control, HMI panel PC for factory automation, HMI panel PC for operator HMI, 10.1-inch ARM A53 E Series HMI Panel PC, projected capacitive touch, fanless design
Winmate W10IM3S-EHH2 is a 10.1-inch ARM A53 E Series HMI Panel PC designed for machine control, factory automation, and operator HMI. This product helps industrial buyers, OEMs, and system integrators select a reliable Winmate solution for rugged, embedded, or mission-critical environments where performance, durability, and long lifecycle availability matter. Best for: The W10IM3S-EHH2 is best suited for machine control, factory automation, and operator HMI, especially when teams need stable hardware integration, dependable field operation, and a supplier with industrial computing experience. Key specifications: Important product highlights include 10.1” 1280 x 800 Resolution with Projected Capacitive Multi-Touch (PCAP), ARM A53 Quad Core 2.0GHz CPU, Fanless cooling system and ultra-low power consumption, Front IP65 Water and Dust Proof, Android 11, and Support Android or Linux operating system. SEO search intent: This content is optimized for users searching for W10IM3S-EHH2, Winmate W10IM3S-EHH2, Winmate HMI panel PC, HMI panel PC, 10.1-inch HMI panel PC, and IP65 HMI panel PC, and for purchase-intent queries related to industrial-grade Winmate hardware, rugged computing, embedded systems, and application-ready product solutions.
10.1” 1280 x 800 Resolution with Projected Capacitive Multi-Touch (PCAP)
ARM A53 Quad Core 2.0GHz CPU
Fanless cooling system and ultra-low power consumption
Front IP65 Water and Dust Proof
Android 11
Support Android or Linux operating system

CERTIFICATIONS

DATASHEET RESOURCE

ADD TO INQUIRY

ADD TO COMPARE

W10IM3S-EHH2

Winmate W10IM3S-EHH2 is a 10.1-inch ARM A53 E Series HMI Panel PC designed for machine control, factory automation, and operator HMI.

Overview Specification

Winmate Elegant ARM HMI W10IM3S-EHH2 with True Flat and Easy Clean

True Flat (Easy-to-clean)

True Flat surface is not only for a stylish look, elegant for aesthetically pleasant look that fits in modern interiors and exteriors. It is easy to maintain and clean. No more clogged dust on edges.

Winmate Elegant ARM HMI W10IM3S-EHH2 with ARM high computing performance

Next generation computing power

The Winmate HMI delivers next-generation ARM processing power and a highly versatile complement for industrial IoT, providing high computing performance with low power consumption.

Winmate Elegant ARM HMI W10IM3S-EHH2 with PCAP Touch

P-Cap Touch (Resistant to scratches)

The glass cover lens provides a great protection from scratches. P-Cap Touch supports 4-point multi-touch and can easily be controlled by fingers. This technology allows enjoying every touch and improving convenience of using the device. Thus it helps to enhance overall customer experience.

Winmate Elegant ARM HMI W10IM3S-EHH2 with Quick Deployment

Mounting clips (Quick installation)

With mounting clips for panel mounting there is no need to drill holes in a fixture. This saves you the time for mounting and guarantee aesthetic look of the wall after the unit gets removed.

Display

Size

10.1 inches

Touch / Glass

Projected Capacitive Multi Touch Screen

Resolution

1280x800

Panel Brightness

350.0 nits

Contrast Ratio

800:1

View Angles

85,85,85,85

Active Area

216.96x135.6 mm

System Specification

Processor

ARM A53 (Quad Core 2.0GHz)

Memory

4GB LPDDR4

Storage

eMMC: Onboard 32 GB

Operating System

Android 11 (Upgradeable to Android 13) (Default)
Linux Yocto 5.15.47 with QT 5.15 (Optional)
Linux Ubuntu Server 22.04 (Optional)

Mechanical

Dimension

267 x 182 x 56.5 mm

Cut out

244x159mm

Weight

1.5 kg

Mounting

Panel mount
VESA mount

Enclosure

Metal Front Bezel with Plastic Back Cover

Cooling System

Fanless Design

Environment

Operating Humidity

10% to 90% RH, Non-Condensing

Operating Temperature

0°C to 50°C

Storage Temperature

-20°C to 60°C

Shock

MIL-STD-810H Method 516.8 Procedure I

Vibration

MIL-STD-810H Method 514.8 Procedure I

IP rating

Front IP65

Certification

CE, FCC

IO Ports

USB Port

2 x USB 2.0 Type A
1 x Micro USB 2.0 OTG

Serial Port

1 x RS232/422/485 (Default RS232)

LAN

1 x LAN 10/100/1000 Mbps (Default)
PoE(PD, 802.3at) (Optional)

Video

1 x Micro HDMI Output (Optional)

SD Card Slot

1 x Micro SD card slot (Max to 32GB)

Accessory

100~240V AC to DC Adapter
Power Cord
VESA screws
Mounting clips

Power

Power Rating

12V DC with Terminal Block

Adapter

12V 50W

Display Size 10.1 inches Touch / Glass Projected Capacitive Multi Touch Screen Resolution 1280x800 Panel Brightness 350 nits 1000 nits(Optional) Contrast Ratio 800:1 View Angles 85,85,85,85 Active Area 216.96 x135.6 mm System Specification Processor Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz) Memory 3GB LPDDR4 Storage 32GB eMMC Operating System Android 9.0 WLAN Support (Optional) BT Support (Optional) Mechanical Dimension 267 x 182 x 58 mm Cut out 244x159mm Mounting Panel mount Enclosure Aluminum Front Bezel with Metal Back Cover Cooling System Fanless design Environment Operating Humidity 10% to 90% (Non-Condensing) Operating Temperature 0~50°C Storage Temperature -20~60°C Shock MIL-STD-810G Method 516.6 Vibration MIL-STD-810G Method 514.6 IP rating Front IP65 Certification Certification CE, FCC IO Ports USB Port 2 x USB 2.0 (Type A), 1 x USB 3.0 (Type-C) Serial Port 1 x RS232/422/485 (Default RS232) LAN 1 x LAN(USB to LAN AX88178A) Video 1 x Micro HDMI (Optional) Audio 2 x Speaker (Optional) SD Card Slot 1 x Micro SD card slot Accessory Accessory 100~240V AC to DC Adapter Power Cord VESA screws Manual Mounting clips Power Power Rating 12V DC with Terminal Block 9~36V (Optional) Adapter 12V 50W
