DD-2412
24V to 12V 100W DC/DC Converter Module

Key Features

High efficiency DC-DC Converter Module
Low inrush current
Output over-current protection
Wide range voltage input

Introduction

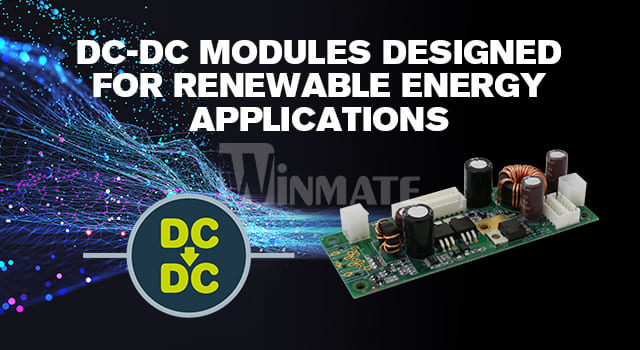

Winmate DD-2412 Wide Voltage Input DC Converter is a high-efficiency DC-DC converter module designed to meet the demands of renewable energy and industrial applications. It features wide voltage input support, low inrush current, and output over-current protection for reliable operation. With configurations available for board, chassis, and DIN rail mounting, it is ideal for solar energy systems, wind generators, and electric charging stations. Operating in a broad temperature range of -20°C to +70°C and up to 10,000 feet altitude, it ensures dependable performance even in remote or high-altitude installations. Its zero-voltage switching (ZVS) design enhances efficiency and power distribution.

Specifications

System Specification

Input Voltage

24V to 12V DC

Load Range

12V 10A

Power Consumption

100W

Ripple And Noise

Less than 120mV

Line Regulation

Less than ±1% at rated 9~36V input voltage

Load Regulation

Less than ±5%

Efficiency

Up to 90% (Full loading)

Protection

OCP protection
OVP protection

Certification

CE, FCC

Environment

Operating Humidity

10% to 90% RH, Non-Condensing

Operating Temperature

0°C to 50°C

Storage Temperature

-20°C to 70°C

Altitude

0 to 10000ft

Mechanical

Dimension

120 x 45 x 25.6 mm

Dimensions Unit:mm

To preview the mechanical drawings, please contact the Winmate sales team for more information.

Note

1. This is a simplified drawing and some components are not marked in detail.
2. Please contact our sales representative if you need further product information.
3. All specifications are subject to change without prior notice.
4. The product shown in this datasheet is a standard model. For diagrams that contain customized or optional I/O, please contact the Winmate Sales Team for more information.
