G156AD-SUIT

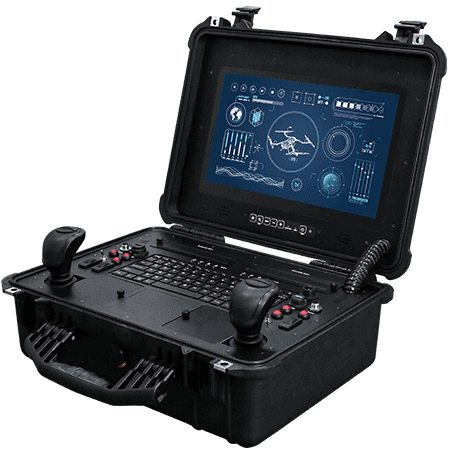

15.6” Intel® Core™ i5-1235U Rugged Ground Control Station Suitcase
Key Features
- Dust, and water-resistant design (IP65). MIL-grade drop, Shock and vibration
- Packed with 2 replacement batteries and boasting a long battery life, this is a must-have tool for serious UAV pilots.
- Packed in rugged and waterproof case for better protection and easy carrying solution
Introduction
Winmate G156AD-SUIT is a 15.6-inch Intel® Core™ i5-1235U Rugged Ground Control Station Suitcase engineered for industrial automation, embedded systems, and mission-critical applications. It combines Intel® Core™ i5-1235U, 15.6-inch form factor, and IP65 to support reliable operation in harsh industrial environments. With Dust, and water-resistant design (IP65). MIL-grade drop, Shock and vibration, the G156AD-SUIT helps OEMs, system integrators, and project teams deploy durable, configurable solutions for demanding field, factory, and mission-critical applications.
Specifications
Display
Bonding
Optical Bonding for Sunlight Viewability
Resolution
1920x1080
Size
15.6 inches inches
Contrast Ratio
800:1
Panel Brightness
2000.0 nits nits
View Angles
89,89,89,89
System Specification
Processor
Intel® Core™ i5-1235U 3.3GHz(up to 4.40 GHz)
Memory
8GB RAM, up to 32GB
Storage
128GB, up to 2TB SSD
Ethernet controller
2 x Intel® Ethernet Controller
Security
TPM 2.0
Operating System
Windows 11 IoT Enterprise (64 bit)
Windows 11 Pro 64 bit (Optional)
Linux Ubuntu 22.04(Do not support Wake on Touch, optional)
Windows 11 Pro 64 bit (Optional)
Linux Ubuntu 22.04(Do not support Wake on Touch, optional)
WLAN
Support (Optional)
BT
Support (Optional)
Mechanical
Dimension
502 x 401 x 188 mm
Weight
14.6kg
Cooling System
Fan Design
IO Ports
USB Port
1 x waterproof connector for USB 3.0 (typeA)
Serial Port
1 x M12 waterproof connector for RS232
Video
1 x waterproof connector for HDMI output(Optional)
Audio
2x Speakers
LAN
1 x waterproof Giga LAN RJ45 connector
Environment
Operating Humidity
10% to 90% RH, non-condensing
Operating Temperature
-20°C to 60°C (AC mode), -10°C to 50°C (Battery mode)
Storage Temperature
-30°C to 70°C (-22°F to 158°F)
Shock
MIL-STD-810H Method 516.8 Procedure I
Vibration
MIL-STD-810H Method 514.8 Procedure I
IP rating
IP65
Certification
Certification
CE, FCC
Control
Button
2x joystick
3x roller switch
2x 2 band toggle switch
6x button
1x OSD control
1x keyboard and touch pad
3x roller switch
2x 2 band toggle switch
6x button
1x OSD control
1x keyboard and touch pad
Power
Battery
2 x 10.8 V, typ. 10050 mAh LiIon Battery (3S1P)
Power Rating
19V DC
Adapter
19V 150W
Accessory
Accessory
1 x 19V Adapter and Power Cord
1 x M12 to RS232 Cable (1.8M)
1 x Waterproof HDMI Cable (2M)
1 x Waterproof USB Type-A Cable (1.8M)
1 x Waterproof LAN Cable (2M)
1 x M12 to RS232 Cable (1.8M)
1 x Waterproof HDMI Cable (2M)
1 x Waterproof USB Type-A Cable (1.8M)
1 x Waterproof LAN Cable (2M)
Optional Accessory
M10 Push-pull LAN Cable
Dimensions Unit:mm
Note
1.This is a simplified drawing and some components are not marked in detail.2.Please contact our sales representative if you need further product information.
3.All specifications are subject to change without prior notice.
4.The product shown in this datasheet is a standard model.For diagrams that contain customized or optional I/ O, please contact the Winmate Sales Team for more information.
