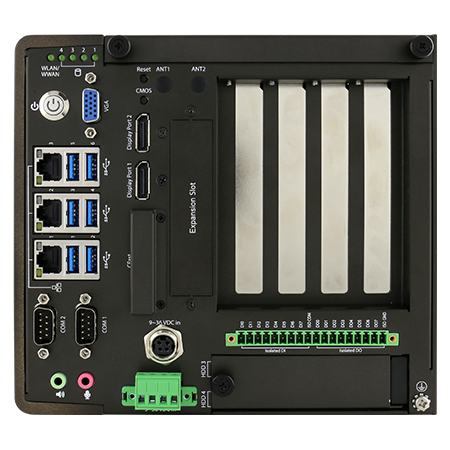

EAC PRO-IK90

EAC Pro Box PC

EAC PRO-IK90

EAC Pro Box PC
  • KEY FEATURES
  • 6th Generation Intel® Xeon E3, 7th Generation Core™ i7/i5/i3 Processors
  • HD 4K resolution & 4U Height Design
  • Flexibility, Connectivity and Multi-Expansion
  • High Storage Density & Easy Maintenance
  • 9-36V Wide voltage and -15 to 55 Celsius degrees wide temperature
  • CERTIFICATIONS
  • FCC CE
Overview
Specification
 Machine Vision

Machine Vision

Vision analytics on the factory floor adds intelligence to factories' design and process. Today's technologies automate the collection, storage, retrieval, and decision making across multiple factories and factory sub-systems at the edge.


Windows 10 IoT Enterprise

Windows 10 IoT Enterprise

Windows 10 IoT Enterprise is a full version of Windows 10 that delivers enterprise manageability and security to IoT solutions. Windows 10 IoT Enterprise shares all the benefits of the world-wide Windows ecosystem. It is a binary equivalent to Windows 10 Enterprise to use the same familiar development and management tools as client PCs and laptops.


High-Performance CPU

High-Performance CPU

EAC Pro Box PC is offered with6th Generation Intel® Xeon E3, Core™ i7/i5/i3 Processors to provide high performance and low power consumption.


 Smart Choice for Inference System with AI

Smart Choice for Inference System with AI

Artificial intelligence, AI, is changing our lives from the past to the future. It enables machine learning by using various training models to simulate and infer objects' status or appearance. For example, the inference system with the video analysis model can perform face and vehicle license plate analysis for safety and security purposes.
The EAC Pro Box PC features rich I/O and dual PCIe x16 to enhance performance and function for various applications.

System Specification

Processor

Intel® Xeon® E3-1268L v5 (8M Cache, 2.40 GHz) Intel® Core™ i7-7700T (8M Cache, 2.9 GHz up to 3.80 GHz) Intel® Core™ i5-7500T (6M Cache, 2.7GHz up to 3.30 GHz) Intel® Core™ i3-7100T (4M Cache, 3.34 GHz)

Chipset

Intel® C236

Memory

2 x SO-DIMM, DDR4 2133 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional)

Storage

1 x CFast 2.0 2 x Internal 2.5” SATA III interface 2 x External 2.5” SATA III interface Support RAID 0, 1, 5, 10 Default 1 x 2.5" 500GB HDD

Ethernet controller

2 x Intel® Ethernet Controller I210-AT + Intel® Ethernet Connection I219-LM

Security

TPM 1.2

Operating System

Windows 10 IoT Enterprise (Optional) Linux Ubuntu 18.04 (Optional)

WLAN

802.11 a/b/g/n/ac (Optional)

BT

BT Support (Optional)

Expansion Port

Swappable 2.5” HDD/SSD Bay Slot

Mechanical

Dimension

195 x 177 x 255 mm

Mounting

Panel Mount Table Mount Rack Mount

Enclosure

Metal Housing

Cooling System

Fan design

Environment

Operating Humidity

10% to 90% (non-condensing)

Operating Temperature

0~50°C

Storage Temperature

-10~60°C

Certification

Certification

CE, FCC

IO Ports

USB Port

6 x USB3.0 (Type-A)

Serial Port

2 x RS232/422/485 w/ isolation (Default RS232)

LAN

3 x Giga LAN RJ45 Connector

Video

1 x VGA 2 x DP1.2

Audio

Mic in Line out

Expansion Port

1 x mPCIe slot(for half size Wifi module) 1 x CFast 2.0 card slot Swappable 2.5” HDD/SSD Bay Slot SKU1 (1 PCIe3.0 x16, 1 PCIe3.0 x4, 1 PCI) SKU2 (1 PCIe3.0 x8, 1 PCIe3.0 x4, 1 PCI)

Indicator

1 x LED Indicator for Wifi

DIDO

Digital input: 8ch dry contact DI0 ~ DI7, 1.5kV Isolation Logic 1 : Open ; Logic 0 : close to GND Digital output: 8ch DO0 ~ DO7, 1.5kV Isolation, 20mA max/channel by internal com 12V or 5V

Control

Button

1 x Power Button with LED Indicator 1 x Reset Button 1 x Clear CMOS Button

Power

Power Rating

9V to 36V DC (4 Pin Terminal Block/DC Jack)

Adapter

12V 220W
