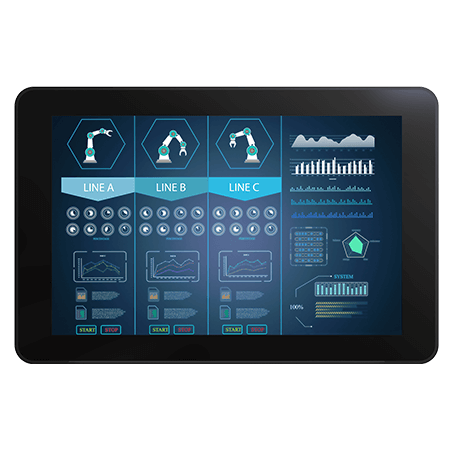

W10L100-SDH2 10.1" SDI Chassis Display
- 10.1", 1280 x 800
- G-SDI in, 3G-SDI out, HDMI, VGA, two CVBS (BNC)
- VESA mount
10.1" SDI Chassis Display
Ultra-fine Metal Mesh Design
The touchscreen and electronics are tuned for precise, multi-touch functionality - even at the edges and corners of the display.
Projected Capacitive Multi-Touch (P-CAP)
The highly sensitive touch screen and PCAP multi-touch support make it easy for users to key in data, rotate images, drag and drop files, and zoom in with two or more fingers.
Winmate's testing facilities ensure that every product complies with stringent industry standards. At Winmate, durability testing is regularly conducted throughout the manufacturing process to ensure that each product is operable in the specific conditions they were designed for.
Equipped with SDI input / output terminal
Winmate SDI monitor equipped with SDI input / output terminals compliant with SMPTE standards, to pass through the input SDI, the daisy chaining between monitors is possible.
Touch / Glass
Projected Capacitive Multi Touch Screen
216.96 x135.6 mm
10% to 90% (non-condensing)
1 x USB for Touch Screen
1 x VGA In 2 x CVBS 1 x SDI in 1 x SDI out 1 x HDMI (Optional)
2 x Speaker (Optional)
263.6 x 172.3 x 38.5 mm
User Manual(Hardcopy) Black Screw Bolts 110~240V AC Power Adapter Power Cord VGA Cable HDMI Cable SDI Cable CVBS cable
12V DC input
8 key: Power Up Down Menu/Enter Left Right Exit Auto
