G500G7
KEY FEATURES
- 1920 x 1080 TFT LCD Panel with direct bonding
- Genio 510 2 x A78 2.0GHz + 4 x A55 2.0GHz
- All-weather, dust, and water-resistant design (IP65). MIL-grade drop, Shock and vibration
- Compact and ergonomic design
- Supports WIFI/BT
FCC" title="FCC
CE" title="CE
CERTIFICATIONS
G500G7
5.5" ARM A78 + A55 Rugged Robotic Controller
Product Details
Efficient and Reliable Performance
Powered by an ARM-based processor, the Winmate G500G7 Handheld Robotic Controller offers efficient and reliable performance for industrial and robotic tasks. Running on Linux and Android operating systems, it ensures smooth multitasking and compatibility with diverse applications, providing flexibility for various operational needs.
Compact and Durable Design for Any Environment
The Winmate G500G7 Handheld Robotic Controller combines portability and durability in a compact 5.5” form factor. Featuring a 1080(RGB) x 1920 TFT LCD panel with direct bonding, it ensures sharp visuals and high responsiveness in a lightweight, ergonomic design. Built to withstand harsh environments, the G500G7 meets IP65 standards for dust and water resistance and adheres to military-grade certifications for drop, shock, and vibration, delivering reliable performance in demanding industrial applications.

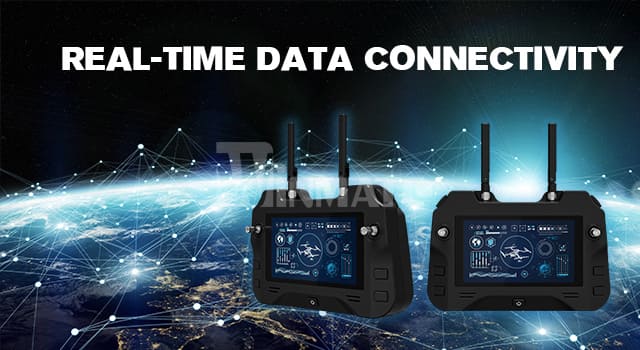

Seamless Wireless Connectivity
The Winmate G500G7 Handheld Robotic Controller supports WiFi and BT connectivity, enabling reliable communication and data transfer across industrial networks. These wireless options ensure smooth integration with robotic systems and real-time access to critical information, making it an essential tool for dynamic environments requiring uninterrupted connectivity.
Tailored Configurations for Versatile Applications
Winmate offers a fully customizable robotic controller solution tailored to user-specific needs. The Winmate G500G7 Handheld Robotic Controller supports various wireless modules and features a modular design with configurable joysticks, switches, and buttons. This flexibility allows users to adapt the device to different robotic systems and operational requirements, making it a versatile tool for modern industrial automation.
Specification
Size
5.5 inches
Resolution
1920x1080
Type
Projected Capacitive Multi Touch
Panel Brightness
1000.0 nits
Contrast Ratio
1000:1
View Angles
80,80,80,80
Bonding
Optical Bonding for Sunlight Viewability
Viewability
Anti-Glare touch treatment
Touch Mode
Support Hand / Gloves and Rain Mode
Processor
Genio 510 2 x A78 2.0GHz + 4 x A55 2.0GHz
Memory
4GB
Storage
64GB eMMC
Operating System
Android 13.0
WLAN
Support
BT
Support
Dimension
204.2 x 135.1 x 46 mm
Weight
612g (One Battery Pack)
682g (Two Battery Pack)
Cooling System
Fanless Design
USB Port
1 x USB 3.0 (Type C)
LAN
1 x M10 LAN Connector (10/100 Mbps , Max to 250 Mbps)
Video
1 x micro HDMI output
Audio
2x Speaker
SD Card Slot
1 x Micro SD Card Slot (Max to 2TB)
Operating Humidity
10% to 90% RH, non-condensing
Operating Temperature
-20°C to 60°C (AC mode), -10°C to 50°C (Battery mode)
Storage Temperature
-30°C to 70°C (-22°F to 158°F)
Shock
MIL-STD-810H Method 516.8 Procedure I
Vibration
MIL-STD-810H Method 514.8 Procedure I
IP rating
IP65
Certification
CE, FCC
Button
2 x joystick
2 x Roller switch
7 x buttons
Battery
Standard:One Battery Pack 3.7V, typ. 3200mAh Rechargeable Lithium Battery (2S1P)
Optional:Two Battery Pack 7.4V / typ. 6400mAh Rechargeable Li-ion Battery (2S2P)
Battery Operating Time
One Battery Pack: 8hrs
Two Battery Pack: 16hrs (optional)
Power Rating
19V DC
Adapter
100-240V, 50-60Hz / 19V DC
Accessory
1 x PD Adapter 65W
1 x M10 LAN external cable(2M)
1 x Power Cord
2 x Antenna (optional for RF module)
Optional Accessory
Shoulder Strap(Optional)
Microhard 2450 (Optional)
Product FAQs
Can I map the physical buttons on the G500G7 to control a robot dog?
Yes, the G500G7 features programmable physical keys. You can map the side buttons to specific robotic commands (like "Sit," "Walk," or "Emergency Halt") using Winmate’s built-in button mapping software. This provides precise, tactile control without needing to look at the touchscreen.
Can Winmate customize the button icons for my robotics project?
Yes, Winmate offers hardware ODM customization. For fleet orders, Winmate can print custom icons (e.g., a "Robot Power" symbol) directly onto the physical buttons or change the button color to match your brand, ensuring an intuitive user experience.
Are the side buttons durable enough for scanning thousands of packages?
Yes, the physical buttons are rated for high-frequency industrial use. Unlike consumer volume keys, these triggers are designed for millions of presses. Furthermore, the keypad module is designed to be service-replaceable by authorized repair centers if wear occurs over years of heavy use.
Can I use the buttons for Push-to-Talk (PTT) communication?
Yes, the programmable keys are ideal for PTT. Drivers can map a side button to apps like Zello or Microsoft Teams Walkie Talkie, allowing for instant voice communication with dispatchers while keeping one hand on the wheel.
Can I disable specific buttons to prevent staff errors?
Yes, the "Winmate Button Manager" allows you to disable keys. Store managers can lock out non-essential buttons (like volume or camera) to prevent employees from accidentally exiting the inventory application or changing settings during a shift.
Does the G500G7 support NFC for payments?
Yes, it includes a built-in NFC reader. It can be used as a rugged mPOS device. The physical buttons can be programmed to trigger the "Read Card" function, speeding up customer checkout processes.
Can I use the physical buttons when the screen is wet?
Yes, physical buttons are essential for rain operation. Touchscreens can struggle in heavy rain. The G500G7’s physical keys allow technicians to log data, navigate menus, or snap photos even when the display is covered in water droplets.
Can the physical button functions be changed via OTA updates?
Yes, IT admins can deploy key mapping profiles remotely. Using MDM (Mobile Device Management) software, you can push a new button configuration profile to all devices in the field simultaneously without needing physical access to the units.
Is the battery user-replaceable?
Yes, the G500G7 features a user-replaceable battery. Just like the buttons are designed for serviceability, the power system is designed for continuous operation by swapping batteries.
What OS does it run for button compatibility?
It runs Android 13 with Winmate proprietary extensions. This allows deep integration between the physical hardware keys and third-party Android applications via API.
