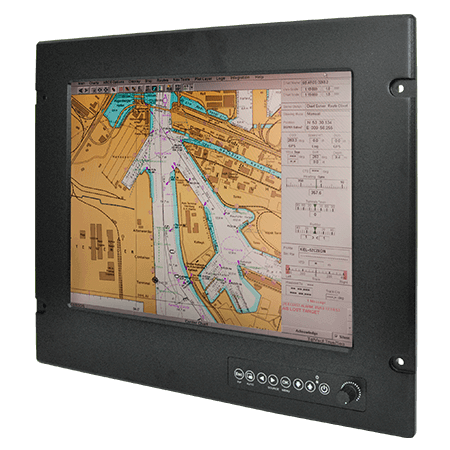

R12L600-MRM2
12.1" Marine Display

Winmate R12L600-MRM2 is a 12.1-inch Marine Display designed for marine bridge systems, shipboard automation, and offshore operations. This product helps industrial buyers, OEMs, and system integrators select a reliable Winmate solution for rugged, embedded, or mission-critical environments where performance, durability, and long lifecycle availability matter. Best for: The R12L600-MRM2 is best suited for marine bridge systems, shipboard automation, and offshore operations, especially when teams need stable hardware integration, dependable field operation, and a supplier with industrial computing experience. Key specifications: Important product highlights include 12.1" 1024 x 768 resolution, Resistive touch screen (Optional protection glass w/o touch function), IP66 aluminum housing with powder coating design (IP54 rear), 9 to 36 V DC power supply with terminal block (Default), Picture-in-picture (PIP) function and multi-video inputs, and Ease-of-use front panel OSD control. SEO search intent: This content is optimized for users searching for R12L600-MRM2, Winmate R12L600-MRM2, Winmate marine display, marine display, 12.1-inch marine display, and IP66 marine display, and for purchase-intent queries related to industrial-grade Winmate hardware, rugged computing, embedded systems, and application-ready product solutions.

KEY FEATURES

12.1" 1024 x 768 resolution
Resistive touch screen (Optional protection glass w/o touch function)
IP66 aluminum housing with powder coating design (IP54 rear)
9 to 36 V DC power supply with terminal block (Default)
Picture-in-picture (PIP) function and multi-video inputs
Ease-of-use front panel OSD control
Enhanced shock and vibration resistance
Dimming knob to control backlight brightness from nearly 0% to 100%

CERTIFICATIONS

DATASHEET RESOURCE

ADD TO INQUIRY

ADD TO COMPARE

R12L600-MRM2

12.1" Marine Display

Overview Specification Accessories

Winmate 12.1-inch Marine Display design with Sunlight readable front panel

Safe Sailing at Bright Sun, Dusk, and Night

To face the challenges of sailing in different conditions, Winmate Marine Displays suitable for day, dusk, and night settings. Our devices feature hyper dimming technology that can control backlight brightness linearly from nearly 0% to 100% by a dimming knob. Simultaneously, add an optional transflective film to enhance the visibility in an outdoor and bright ambiance environment.

Display with built-in Picture-in-Picture function on Winmate 12.1-inch Marine Display

Convenient Front Panel OSD Control, Dimming Knob and built-in Picture-in-Picture (PIP) function

All the controls are located on the front panel OSD for fast access anytime. The dimming knob allows controlling backlight brightness from nearly 0% to 100%, designed for marine industry applications. Winmate Marine Display with built-in Picture-in-Picture function allows you to view the contents of multiple input signal sources at the same time and to easily switch between them

Waterproof design features with Winmate 12.1-inch Marine Display

Survives All Weather Conditions

The rugged mechanical design of the Winmate Marine Displays provides enhanced shock and vibration resistance. Also, the high power efficiency and low heat design guarantee the stability and longevity required for mission-critical deployment. Deploy Winmate Marine Display for your safe operations at sea in all weather conditions.

Peripheral Connectivity

Marine Display feature-rich I/O connectivity consists of one VGA, one DVI-D, one Composite, one S-Video, two COM ports. Easy to integrate into existing marine equipment.

Display

Size

12.1 inches inches

Touch / Glass

Resistive Touch Screen (Default)
AR Glass (Optional)

Resolution

1024x768

Panel Brightness

500.0 nits nits

Contrast Ratio

1000:1

View Angles

89,89,89,89

Display Color

16.2M Colors Colors

Active Area

245.76x184.32 mm mm

Environment

Operating Humidity

5% to 95%

Operating Temperature

-15~55°C

Shock

15G,11ms duration

Vibration

0.7g@DNV-CG-0339 (Class A)

IP rating

IP66 (Front Side)

Certification

CE, FCC

IO Ports

Serial Port

1 x RS232 for Remote Control
1 x RS232/USB for Touch Screen

Video

1 x VGA
1 x DVI-D
1 x Composite
1 x S-Video

Mechanical

Dimension

337 x 293.2 x 70.8 mm

Cut out

307 x 253mm

Weight

4kg

Mounting

VESA mount/Panel mount

Enclosure

Metal Housing with Aluminum Bezel

Cooling System

Fanless Design

Power

Power Rating

9~36V DC Input Acceptable

Consumption

35W (Typical)

Accessory

1 x User Manual.
1 x DVI Cable.
1 x VGA Cable.
1 x RS232 Serial Cable.
1 x S-Video Cable.
1 x Composite Cable.

Control

Button

8 key:
Esc/PIP
Auto adjustment
Left
Right/Source
OK/Menu
Up
Down
Power
1 x The Dimming Knob

OPTIONAL ACCESSORIES

Marine Mounting Kit

Model Name: MMK-12

Part Number: 99KK12100010

When it comes to marine displays, durability and reliability are crucial factors for safe and effective operation. The 12.1" Marine Display is engineered to meet the demanding requirements of marine environments, providing exceptional performance and functionality in the toughest conditions. High-quality Construction for Optimal Performance The 12.1" Marine Display is constructed with high-quality materials to withstand harsh weather and water conditions. The display is housed in a rugged aluminum enclosure, designed to prevent corrosion and resist impacts. The display is also built with an IP65 waterproof rating, ensuring protection against water and dust intrusion. Brilliant Display Quality for Improved Visibility The 12.1" Marine Display delivers superior visibility and performance with its high-resolution display and anti-glare technology. The display is equipped with a brightness level of up to 1200 nits, making it easy to read even in bright sunlight. The display also features a wide viewing angle, making it easy to view from any angle on deck. Reliable Operation in Extreme Temperatures The 12.1" Marine Display is designed to operate reliably in extreme temperatures. With its wide operating temperature range of -20°C to 60°C, the display can withstand even the harshest marine conditions. This makes it an ideal solution for both commercial and recreational marine applications. Customizable Options to Fit Your Needs The 12.1" Marine Display is highly customizable, allowing it to be tailored to meet specific application requirements. Customers can choose from a range of options including touch screen capability, multi-input display, and video input options. This flexibility ensures that the display meets the exact needs of any marine application. Compliance with International Standards The 12.1" Marine Display complies with international marine standards such as IEC60945, DNVGL, and ABS, ensuring that it is suitable for use on vessels worldwide. The display is also compliant with RoHS and REACH regulations, ensuring that it meets the highest environmental standards. Winmate 12.1" Marine Display offers exceptional performance, reliability, and durability in harsh marine environments. Its high-quality construction, brilliant display quality, and customizable options make it a top choice for any marine application. With compliance to international standards and environmental regulations, the 12.1" Marine Display is a reliable and sustainable solution for marine operations.
