W10IE3S-GCH2
KEY FEATURES
- 10.1” 1280 x 800 PCAP touchscreen
- Low power consumption with Intel® Celeron® Elkhart Lake N6211
- Fanless cooling system and ultra low power consumption
- Front IP65 for protection against water and dust
- A true flat, easy-to-clean front surface with edge-to-edge design
FCC" title="FCC
CE" title="CE
CERTIFICATIONS
W10IE3S-GCH2

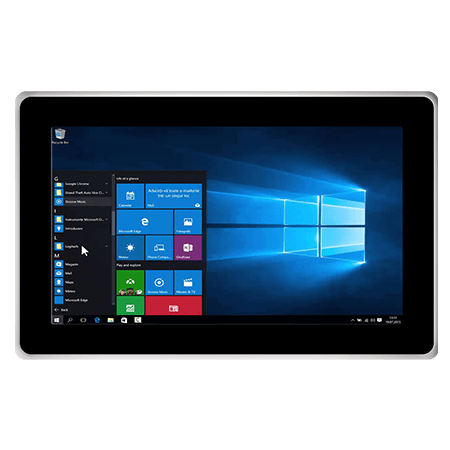

10.1" Intel® Celeron® N6211 G-WIN GC-Series Front IP65 PCAP Panel PC
Product Details
True Flat Design and Easy Cleanability
The G-WIN GC Series Panel PC from Winmate features a True Flat Design, ensuring a sleek and modern appearance while effectively preventing the buildup of dust and debris. With easy cleaning, the G-WIN GC Series Panel PC becomes your solution for a tidy, effortlessly stylish workspace.
Designed for Durability and Mobility
The G-WIN GC Series Panel PC HMIs are equipped with front IP65 water and dust resistance, making them well-suited to endure the challenges of industrial environments.
Fanless Cooling System, Minimal Power
With its innovative fanless cooling system, the G-WIN GC Series Panel PC ensures silent operation, enhanced reliability, and extended longevity, making the Panel PC the ideal choice for noise-sensitive environments and demanding applications.
Easy Mounting Solutions
The G-WIN GC Series Panel PC offer versatile mounting possibilities, including VESA mounts for wall, desk, and in-vehicle installation. This flexibility makes them suitable for a wide range of industrial scenarios.
Specification
Size
10.1 inches
Touch / Glass
Projected Capacitive Multi Touch Screen
Resolution
1280x800
Panel Brightness
350.0 nits
Contrast Ratio
800:1
View Angles
85,85,85,85
Active Area
216.96x135.6 mm
Processor
Intel® Celeron® N6211 ( up to 3.0GHz)
Memory
4GB(Default) (Default)
8GB (Optional)
16GB (Optional)
Storage
128GB SSD(Default) (Default)
256GB SSD (Optional)
512GB SSD (Optional)
1TB (Optional)
2TB (Optional)
Ethernet controller
2 x Intel® Ethernet Controller
Security
TPM 2.0
Operating System
Windows 11 IoT Enterprise (64 bit) (Optional)
Windows 11 Pro 64 bit (Optional)
Windows 10 IoT Enterprise (64 bit) (Optional)
Linux Ubuntu 22.04 (Optional)
Operating Humidity
10% to 90% (Non-Condensing)
Operating Temperature
0~50°C
Storage Temperature
-30°C~70°C
Shock
MIL-STD-810G Method 516.6
Vibration
MIL-STD-810G Method 514.6
IP rating
Front IP65
Certification
CE, FCC
USB Port
2 x USB3.2 Gen2 x 1 (Type-A)
Serial Port
1 x RS232(Default)/422/485
LAN
2 x 2.5 Giga LAN RJ45 Connector
Video
1 x HDMI 2.0 (Optional)
Audio
1 x Speaker
Dimension
264.57 x 173.29 x 35.7 mm
Mounting
VESA mount (Default)
Front IP65 Panel mount (Optional)
Enclosure
Metal Housing with Aluminum Bezel
Cooling System
Fanless Design
Accessory
User Manual(Hardcopy)
AC Adapter
Power Cable
Button
1 x Power Button
1 x Reset Button
Power Rating
12V DC in
Product FAQs
Is W10IE3S-GCH2 a good fit for a machining-cell HMI in manufacturing?
Yes. The 10.1-inch format gives operators more room for machine status, recipe selection, and alarm handling while staying compact enough for machine-side mounting.
Can this model be used for MES operator input on a production line?
Yes. It suits stations that need log-in, work order display, and process confirmation without stepping up to a much larger monitor.
Would W10IE3S-GCH2 work on a palletizing or end-of-line stacking unit?
It can. The screen size is useful for production counters, fault summaries, and operator guidance at the end of a line.
Is W10IE3S-GCH2 suitable for a warehouse packing or shipping station?
Yes. It can support barcode-driven workflows, order confirmation, and exception handling where a durable fixed touch interface is needed.
Can it serve as a line-side quality data entry terminal?
Yes. It is a practical size for inspection forms, defect logging, and operator sign-off next to production equipment.
Would this model fit a food or beverage secondary packaging area?
It can be considered where the front interface needs regular wipe-down and reliable touch access, provided the full enclosure requirements match the site.
Is W10IE3S-GCH2 useful for a maintenance kiosk on the plant floor?
Yes. It can function as a fixed service terminal for spare-part lookup, machine diagnostics, and maintenance work log entry.
Can it be used as an HMI for an automated test bench?
Yes. The 10.1-inch display offers enough space for status, test sequencing, and result review in bench or rack-based industrial environments.
Would W10IE3S-GCH2 make sense in a cold-room or chilled logistics zone?
It can, if the environmental and software requirements are validated. The fanless front panel approach is often preferred for maintaining enclosure integrity.
Is this model appropriate for retrofit projects that need x86 compatibility and a slim footprint?
Yes. It is a strong candidate when teams want a modern 10.1-inch x86 panel PC that balances footprint, usability, and software stability.
